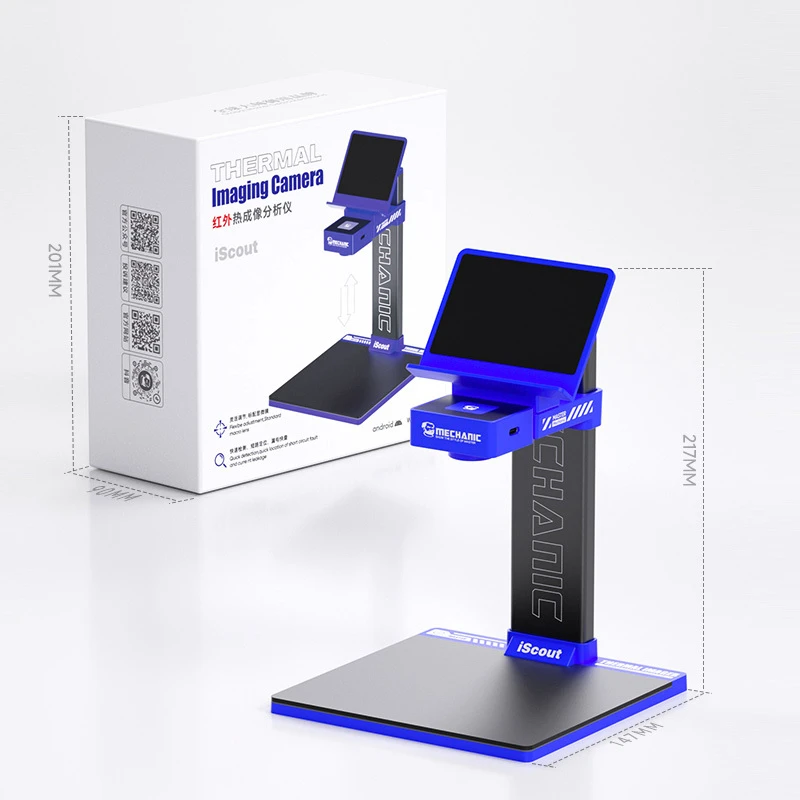

The Mechanic iScout Infrared Thermal Imaging Camera is a high-resolution benchtop diagnostic instrument engineered specifically for smartphone motherboard troubleshooting, micro-electronics repair, and short-circuit localization. Diagnosing power leakage using traditional freeze spray or rosin atomization is often messy, imprecise, and incapable of detecting micro-leakage below typical thermal thresholds. The Mechanic iScout overcomes these limitations by delivering a 256×192 pixel infrared thermal detector paired with ultra-sensitive 6mA minimum current leakage detection.

Operating across an expansive temperature diagnostic range from -15°C up to +600°C with a smooth 25Hz–30Hz real-time refresh rate, the iScout maps temperature variations across dense PCB component matrices. Its wide 56°×42° field of view and 100mm–150mm macro focal distance allow technicians to inspect entire logic boards or focus directly on microscopic 0201 passives, power management ICs (PMICs), and application processors. Connected via a high-speed USB Type-C interface to dedicated PC analysis software, the system features automated hot-spot tracking cursors, regional temperature mapping, dual-board profile comparison, and customizable thermal color palettes (Iron Red, Rainbow, White Hot, Black Hot). Built on a compact, space-saving desktop stand, the Mechanic iScout is an essential diagnostic system available at Fixtools.

Key Features

1. High-Resolution 256×192 Thermal Sensor: Produces sharp, detailed thermal imaging to clearly isolate individual miniature SMD components and IC pads.
2. 6mA Micro-Leakage Detection: Detects minute current leakage and subtle thermal rises that conventional rosin or freeze spray methods fail to reveal.
3. Wide Temperature Measurement Range: Accurately reads and analyzes thermal signatures from -15°C up to +600°C.

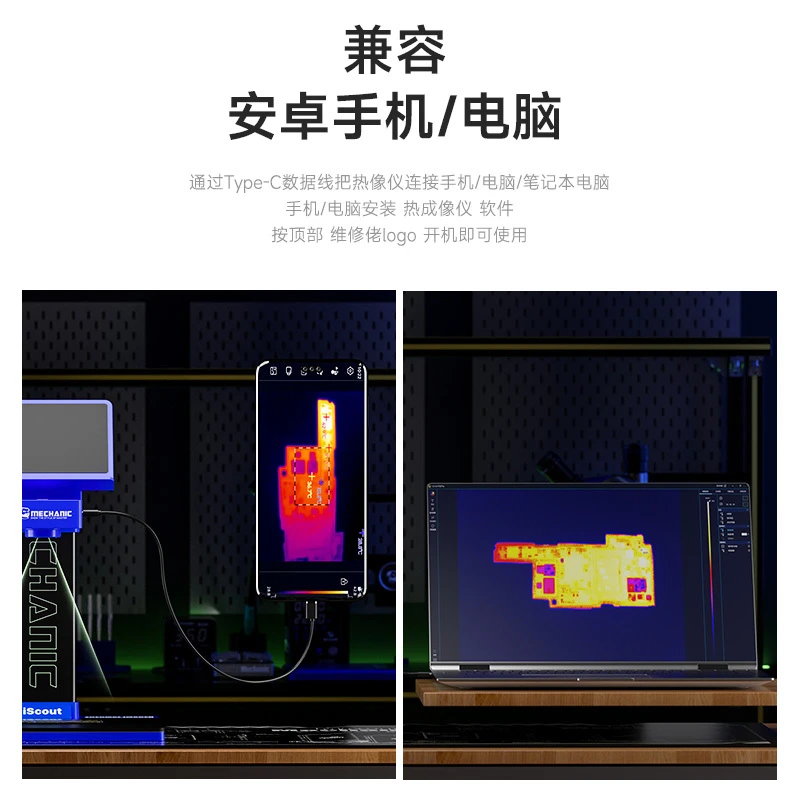

4. Dedicated PC Diagnostic Software: Plug-and-play USB Type-C connectivity enables real-time thermal analysis, image capture (JPG), and video recording (MP4).
5. Auto Hot-Spot Tracking & Alarm: Automatically locks onto and tracks the highest temperature point on the board with a real-time cursor indicator.
6. Motherboard Comparison Mode: Allows side-by-side comparison between a known-good board profile and a faulty board to pinpoint anomalies quickly.
7. Multi-Color Visual Palettes: Features selectable visualization modes including Iron Red, Rainbow, White Hot, and Black Hot for optimal contrast across varied PCB substrates.
8. 25Hz–30Hz Smooth Video Stream: High refresh rate delivers fluid, lag-free motion feedback during active power-on troubleshooting.

Specifications

1. Brand: Mechanic
2. Model: iScout
3. Product Name: Mechanic iScout Infrared Thermal Imaging Camera
4. Product Type: Desktop Infrared Thermal Analyzer for PCB Diagnostics
5. Infrared Resolution: 256 × 192 Pixels
6. Field of View (FOV): 56° × 42°
7. Measurement Distance: 100 mm – 150 mm (Macro-Optimized)
8. Temperature Measurement Range: -15°C to +600°C
9. Current Leakage Sensitivity: Minimum 6 mA
10. Frame Rate: 25 Hz – 30 Hz
11. Interface: USB Type-C
12. Input Voltage: DC 5V (Bus Powered)
13. Image Storage Format: JPG
14. Video Storage Format: MP4
15. Color Palettes: Iron Red, Rainbow, White Hot, Black Hot
16. Application Range: Motherboard Short-Circuit Detection, VDD/VCC Power Rail Leakage Diagnostics, BGA Chip Thermal Overload Analysis, Micro-Soldering Hardware Inspection

Package Includes

1. 1 × Mechanic iScout Thermal Imaging Camera Head

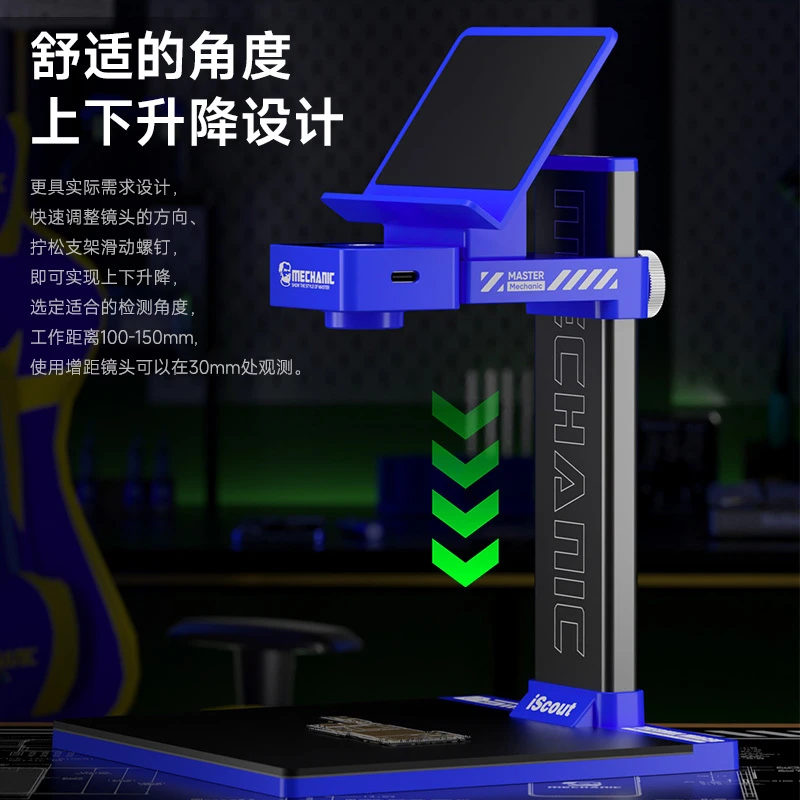

2. 1 × Desktop Mounting Stand & Pillar Assembly
3. 1 × USB Type-C High-Speed Data Cable
4. 1 × User Manual & Software Setup Guide
