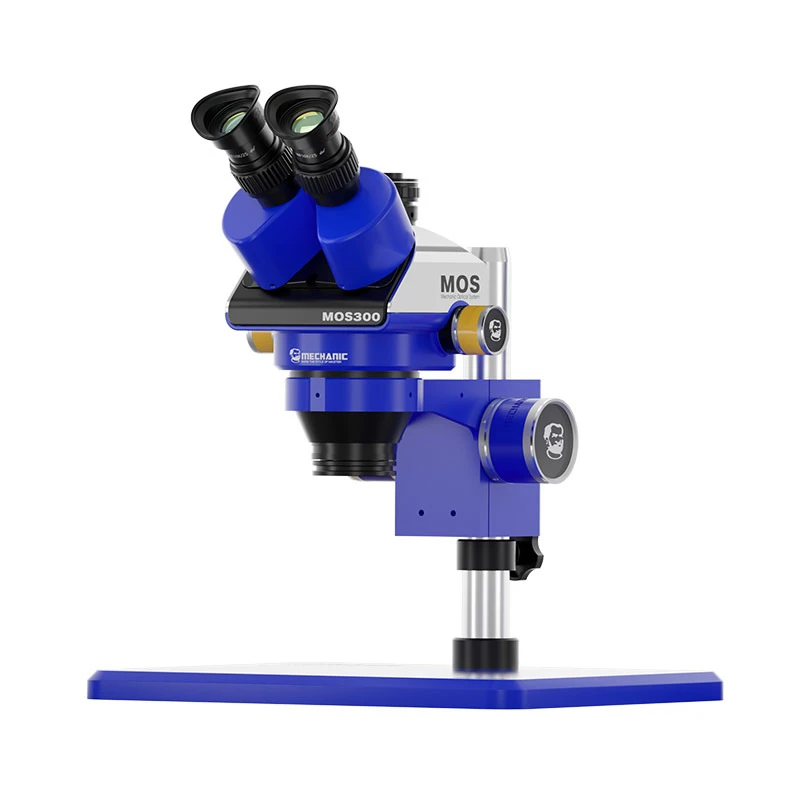

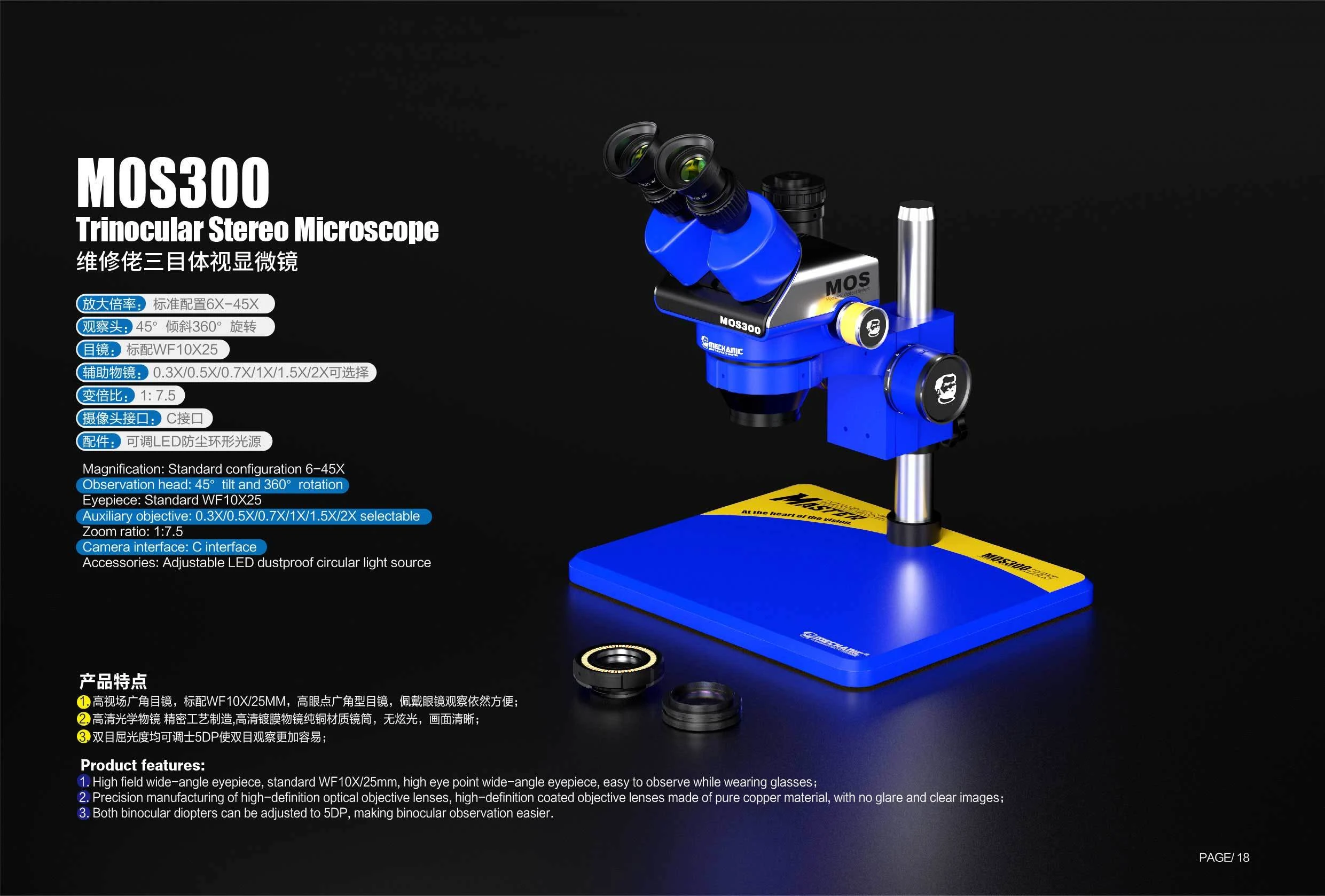

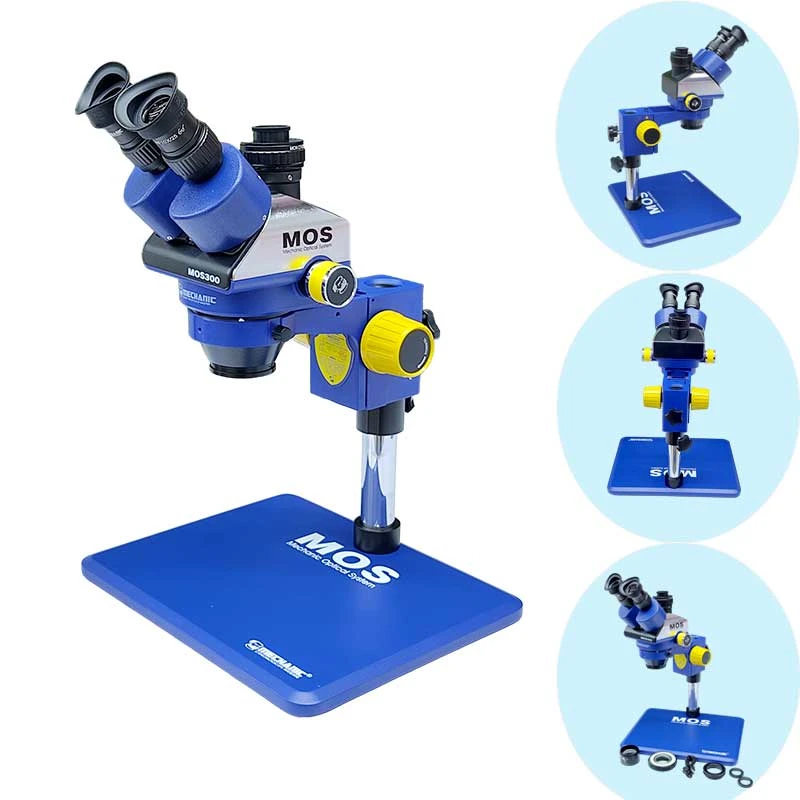

The Mechanic MOS300-B11 is a premium industrial trinocular stereo microscope designed for mobile repair, PCB soldering, and precision electronics work. Built with high-definition coated optical lenses and a durable pure copper lens barrel, it ensures crystal-clear imaging without glare or distortion. The 7X–45X continuous zoom (expandable up to 90X with auxiliary lenses) delivers detailed 3D imaging, making it perfect for micro soldering and inspection tasks.

Its B11 heavy-duty base provides excellent stability, while the trinocular head allows real-time viewing on a monitor using a CTV adapter and compatible HD camera. With adjustable eyepieces, wide viewing angles, and smooth focusing, the MOS300-B11 is engineered for professional repair labs and industrial use.

Key Features:

• 🔍 7X–45X Continuous Zoom (expandable to 1.8X–90X with auxiliary lenses)
• 👀 Trinocular Head (45° Inclined, 360° Rotatable) – Ideal for direct observation and camera connection
• 👓 Widefield Eyepiece WF10X/22mm – Comfortable for users wearing glasses

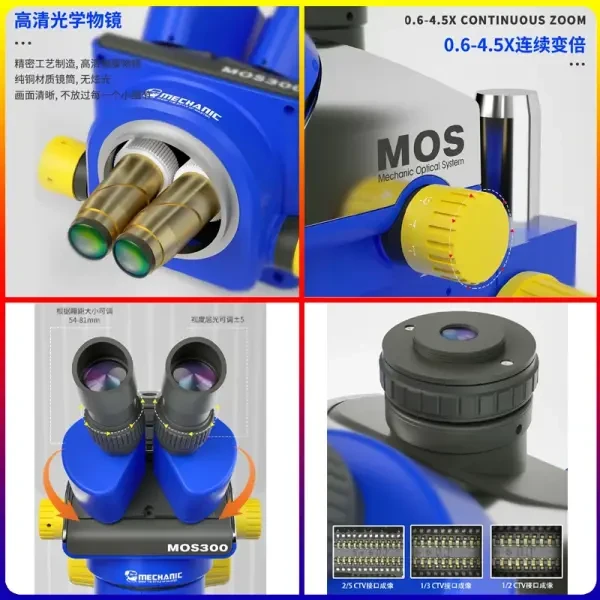

• ⚡ High-Definition Coated Optics – Sharp, distortion-free, and glare-free images
• 🏗 Sturdy B11 Column Base – Stable and vibration-free platform
• 💡 Optional LED Illumination – Adjustable lighting for clear visibility
• 📷 CTV2/5 Adapter Support – Enables high-quality image transfer for display/recording
• 🔄 360° Adjustable Body – Frees up workspace and allows flexible positioning
• 🎛 Metal Focusing Gear Rack – Durable, precise, and smooth magnification adjustment

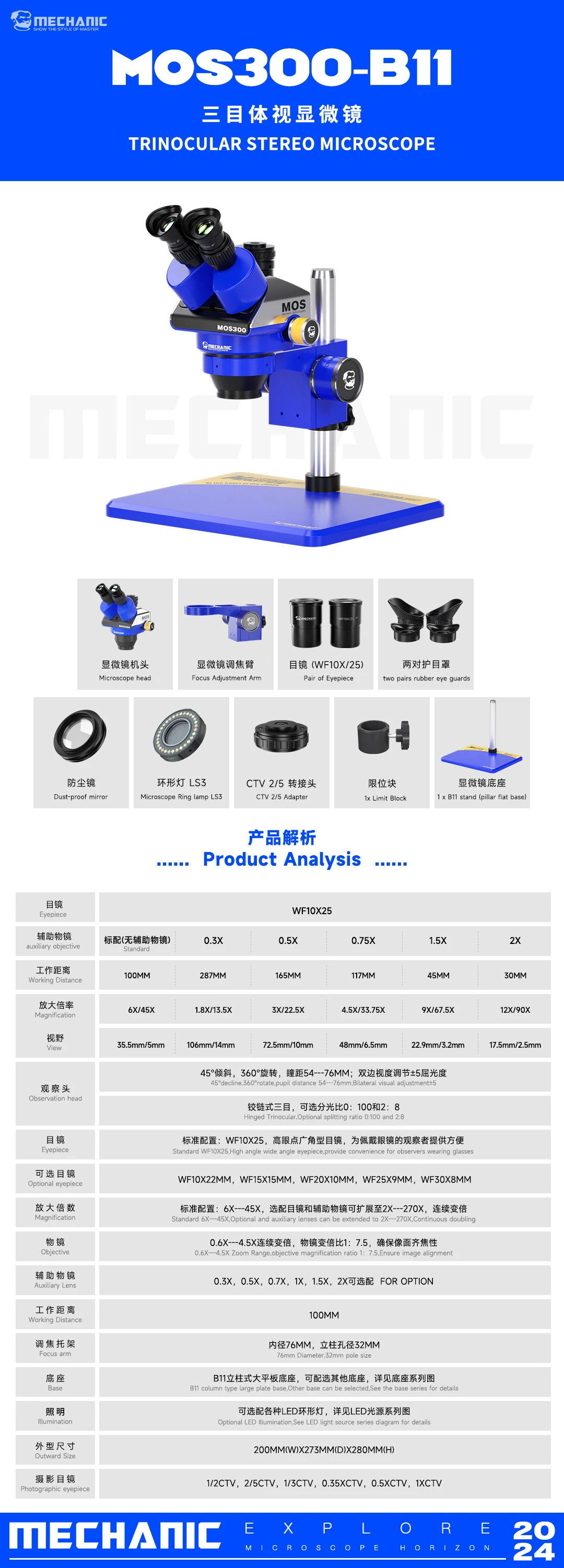

Specifications:

• Observation Head: 45° incline, 360° rotation, pupil distance 54–76mm, ±5D visual adjustment
• Standard Eyepiece: WF10X/22mm wide-angle
• Optional Eyepiece: WF15X, WF20X, WF25X, WF30X
• Objective Zoom: 0.6X–4.5X (ratio 1:10)
• Auxiliary Lenses: 0.3X, 0.5X, 0.75X, 1X, 1.5X, 2X (optional)
• Magnification: Standard 6X–45X (expandable to 90X)
• Working Distance: 100mm
• Focus Arm: 76mm diameter, 32mm pole size
• Base: B11 heavy-duty column plate
• Dimensions: 200mm (W) × 273mm (D) × 280mm (H)
• Illumination: Optional LED ring light

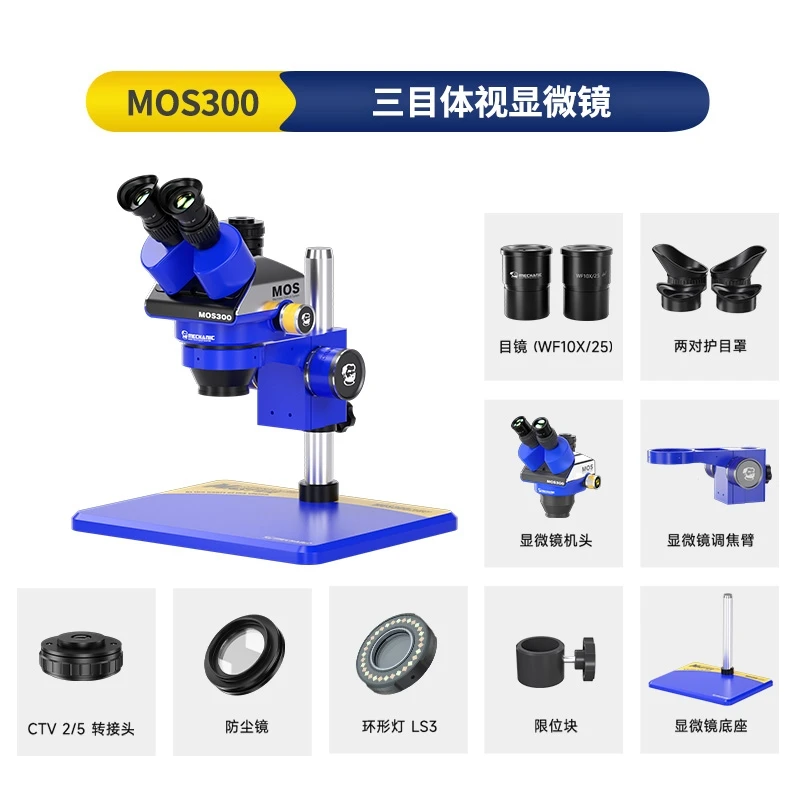

Package Includes:

• 1× MOS300 Head
• 1× B11 Base
• 1× 0.5X Auxiliary Lens
• 1× CTV Adapter Lens
• 1× LED Ring Light
• 2× WF10X/22 Eyepieces
• 1× Dust Protective Cover
• 1× Pair of Horn-Shaped Eye Masks
• 1× Pair of Slant Horn-Shaped Eye Masks
