Mechanic T810 Mobile Phone Tail Plug Test Board – iPhone & Android Lightning/Type-C Non-Charging Fault Detection

(0) 0 Reviews 0 Orders 0 Wish listed

₹199.00

Quantity :

Total price :

(Tax : )

Overview
Reviews

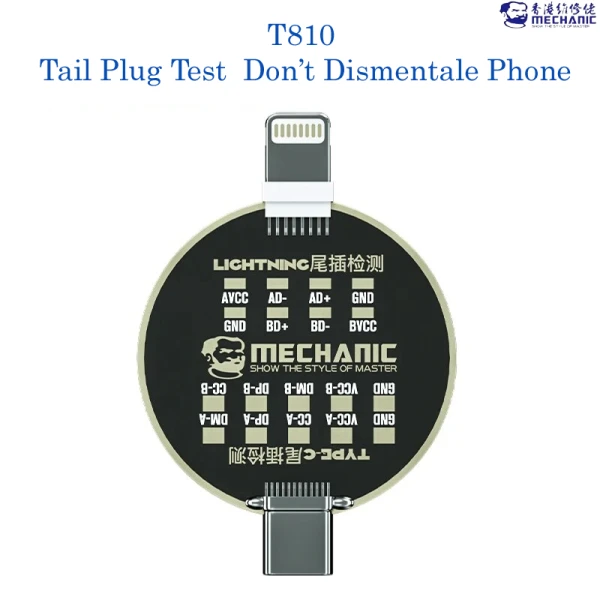

The Mechanic T810 is a versatile tail plug test board designed for quick and precise non-charging fault detection in iPhones and Android devices. With Lightning and Type-C interfaces, it allows technicians to test charging circuits without dismantling the phone, quickly locating DP, DM, and CC test points on the motherboard. Ideal for mobile repair shops and DIY technicians, it helps detect single-sided or complete charging faults efficiently.

Key Features:

⚡ Non-Disassembly Testing – Detect charging faults without opening the device.

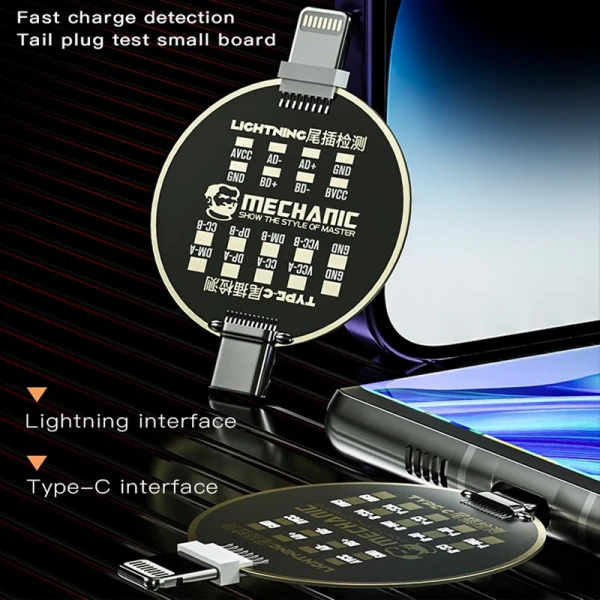

🔌 Lightning & Type-C Support – Works with all Lightning and Type-C port phones.
🛠 Quick Fault Location – Fast identification of DP, DM, CC points on the motherboard.
📊 Easy Measurement – Compatible with multimeter in diode mode for precise testing.
💡 Universal Compatibility – Suitable for iPhone, Samsung, Huawei, Xiaomi, and other Android devices.

How to Use:

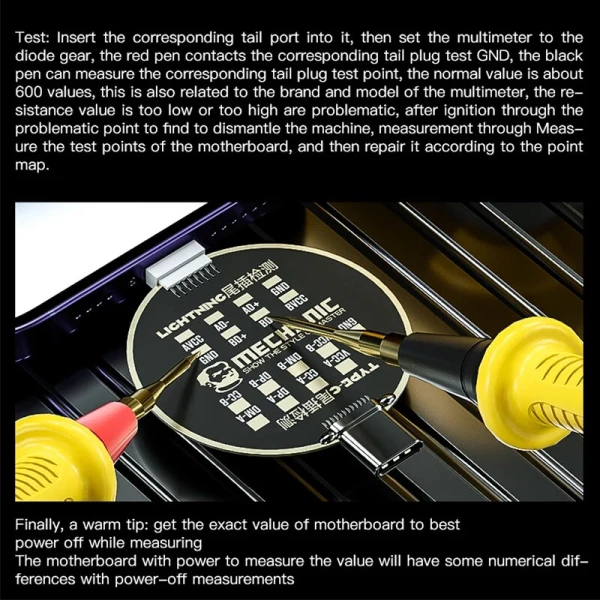

Insert the corresponding tail plug (Lightning/Type-C) into the board.

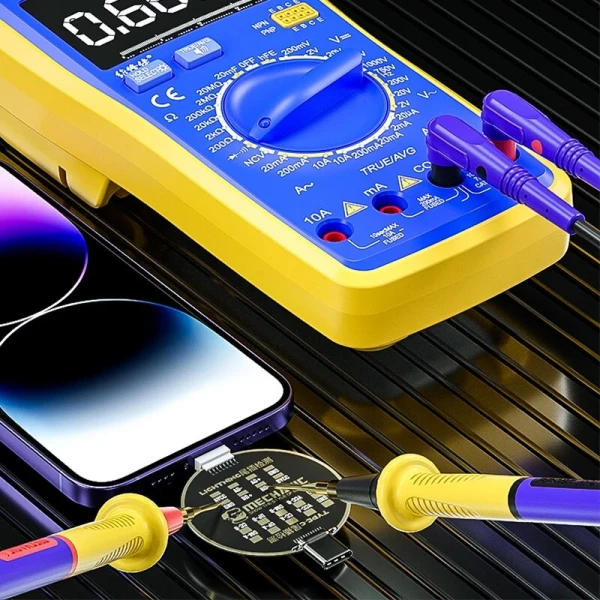

Set your multimeter to diode mode.
Connect the red pen to the GND of the plug.
Touch the black pen to the test point; normal reading is around 600 (varies by multimeter and brand).
Identify abnormal values to locate non-charging issues and repair using the motherboard point map.

Specifications:
