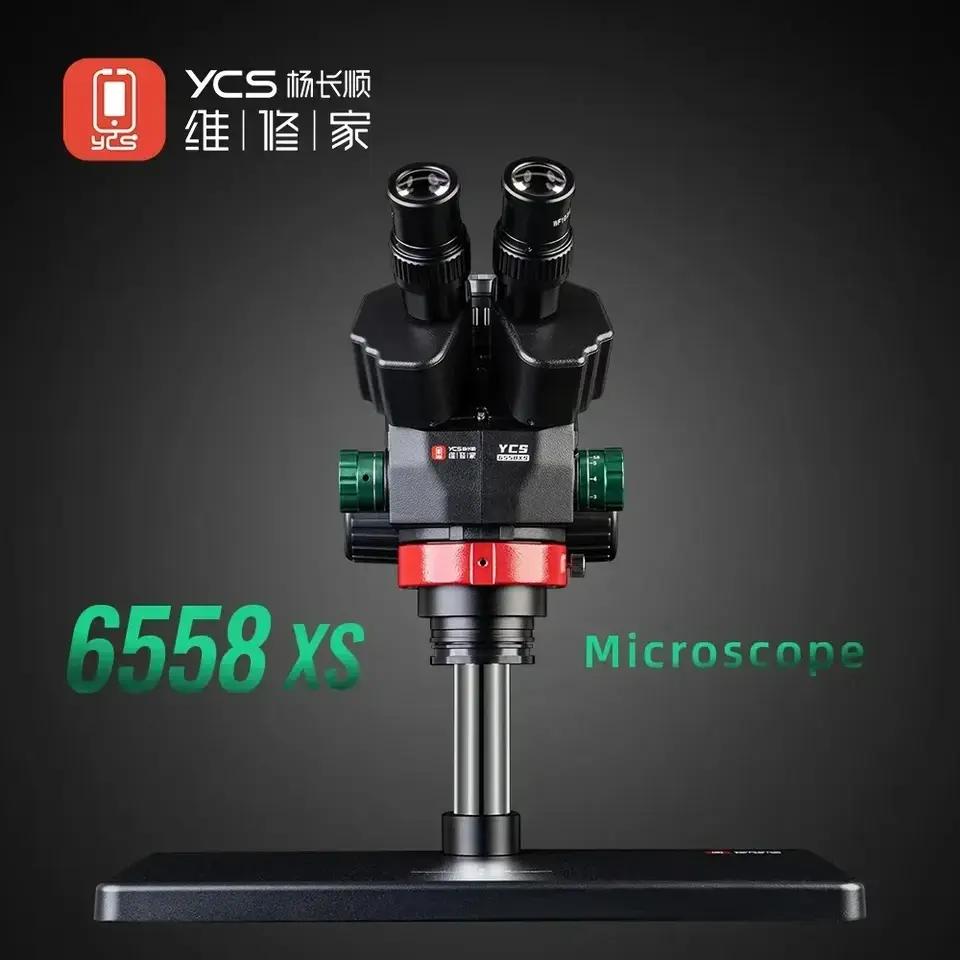

The YCS 6558XS Rotation Trinocular Stereo Zoom Microscope is a high-precision optical inspection and micro-soldering platform engineered specifically for mobile phone motherboard diagnostics, CPU reballing, BGA chip rework, and jumper wire routing. Conventional stereo microscopes with fixed arms or narrow fields of view restrict workbench space and cause strain during lengthy soldering sessions. The YCS 6558XS solves this by integrating an advanced 0.65X–5.8X continuous optical zoom head (providing 6.5X to 58X total continuous magnification) paired with premium 10×23 high-eyepoint, wide-angle ocular optics.

Built around a flexible, heavy-duty chassis, the system features a 360° rotating cantilever main unit bracket mounted on a precision steel column with a height safety limiter. The dedicated vertical camera port includes an optical CTV 0.5X C-mount adapter, delivering synchronous, parfocal video output to external HDMI/Type-C digital cameras while viewing through both eyepieces. Complete with an ultra-thin snap-on LED ring light plate, an anti-fume dust cover objective lens, and an oversized metal carrier base, the YCS 6558XS is a professional-grade optical workstation available at Fixtools.

Key Features

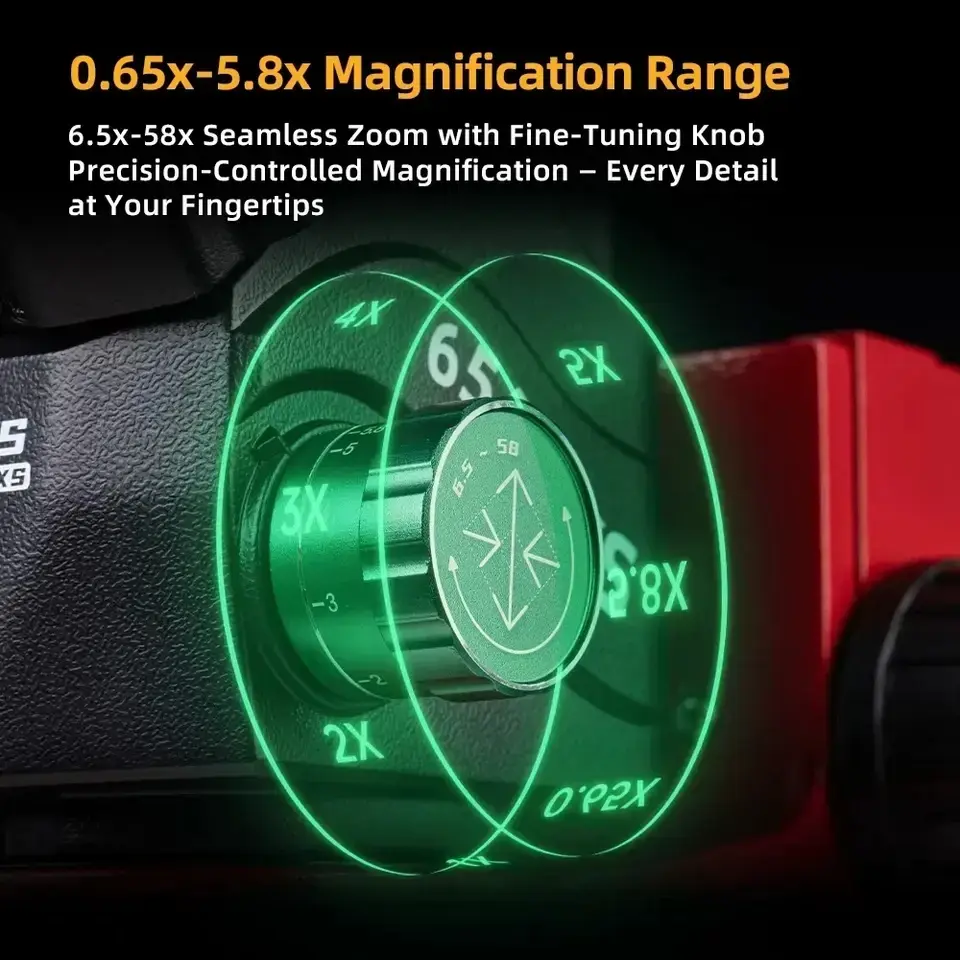

1. 0.65X–5.8X Continuous Zoom Range: Delivers a smooth 6.5X to 58X total magnification range for seamless transition between overall board layout and microscopic trace repair.
2. Dedicated CTV 0.5X Camera Port: Includes a pre-matched 0.5X C-mount adapter for simultaneous real-time digital monitor output and dual-eyepiece viewing.

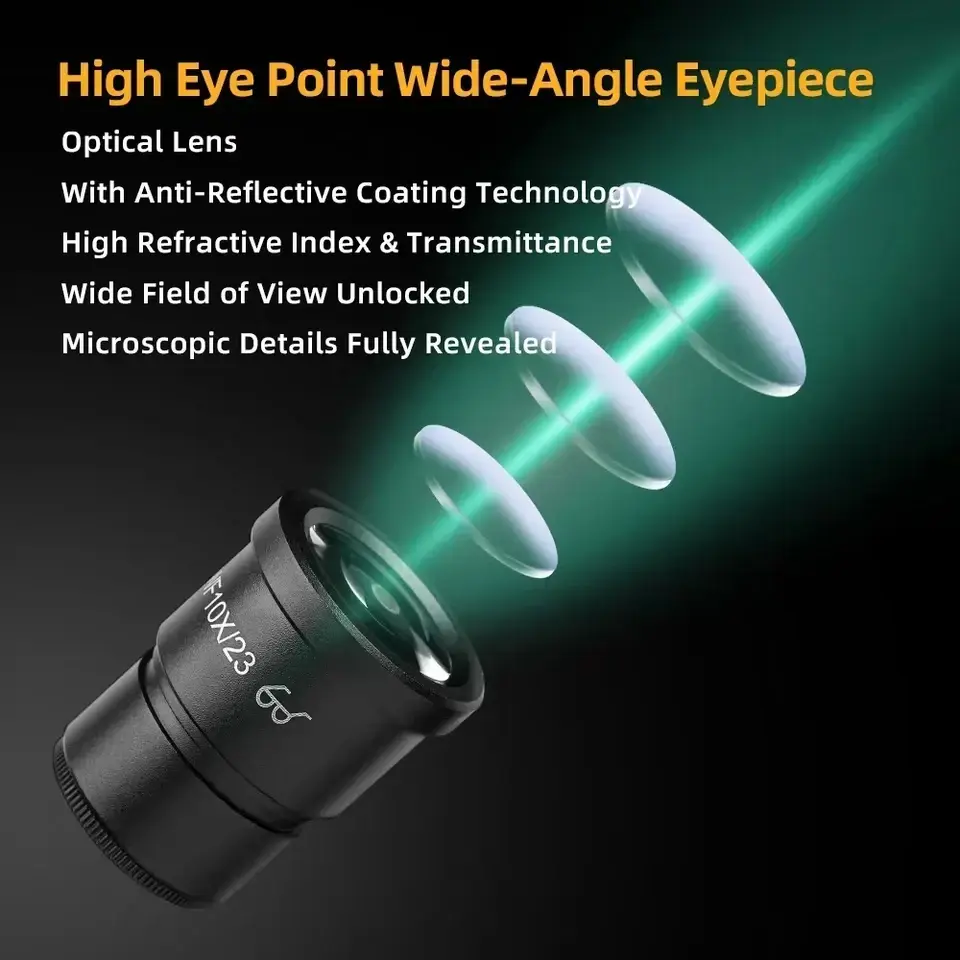

3. 10×23 High-Eyepoint Wide-Angle Eyepieces: 23mm wide ocular lens diameter provides clear, distortion-free imaging while minimizing technician eye fatigue.
4. 360° Rotatable Articulating Bracket: Main unit bracket rotates 360° horizontally around the pillar, providing maximum workbench clearance and flexible positioning.
5. Adjustable Height Limiter Ring: Mechanical stop ring prevents the optical assembly from accidentally sliding down and damaging delicate workpieces.
6. Snap-On Ring LED Light Plate: Low-heat, shadow-free circular illumination provides clear circuit trace and component visibility.
7. Screw-On Dust Cover Lens: Protects internal optical glass elements from acidic soldering rosin fumes, flux spatter, and ambient debris.
8. Heavy-Duty Metal Stage Base: Broad, flat steel base provides a stable work area for holding motherboards, preheaters, and fixtures without tipping.

Specifications

1. Brand: YCS / YCS Repair Master
2. Model: YCS-6558XS
3. Product Name: YCS 6558XS Rotation Trinocular Stereo Zoom Microscope
4. Product Type: Continuous Stereo Zoom Trinocular Microscope
5. Optical Zoom Ratio: 0.65X – 5.8X
6. Total Magnification: 6.5X – 58X (with standard 10×23 Eyepieces)
7. Eyepieces: 10×23 mm High-Eyepoint Wide-Angle Eyepieces (Pair)
8. Camera Interface: Vertical Photo Port with CTV 0.5X C-Mount Adapter
9. Arm / Mount Type: 360° Horizontal Rotating Main Unit Bracket with Precision Focusing Block
10. Safety Feature: Mechanical Column Height Limiter Ring
11. Illumination: Adjustable Circular LED Light Plate
12. Optical Protection: Bottom Screw-On Dust Cover Glass Lens
13. Base Type: Oversized Heavy-Duty Metal Workbench Base
14. Application Range: Motherboard BGA Micro-Soldering, CPU Jumper Wire Repair, PCB Track Inspection, SMD Soldering, Precision Electronics Diagnostics

Package Includes

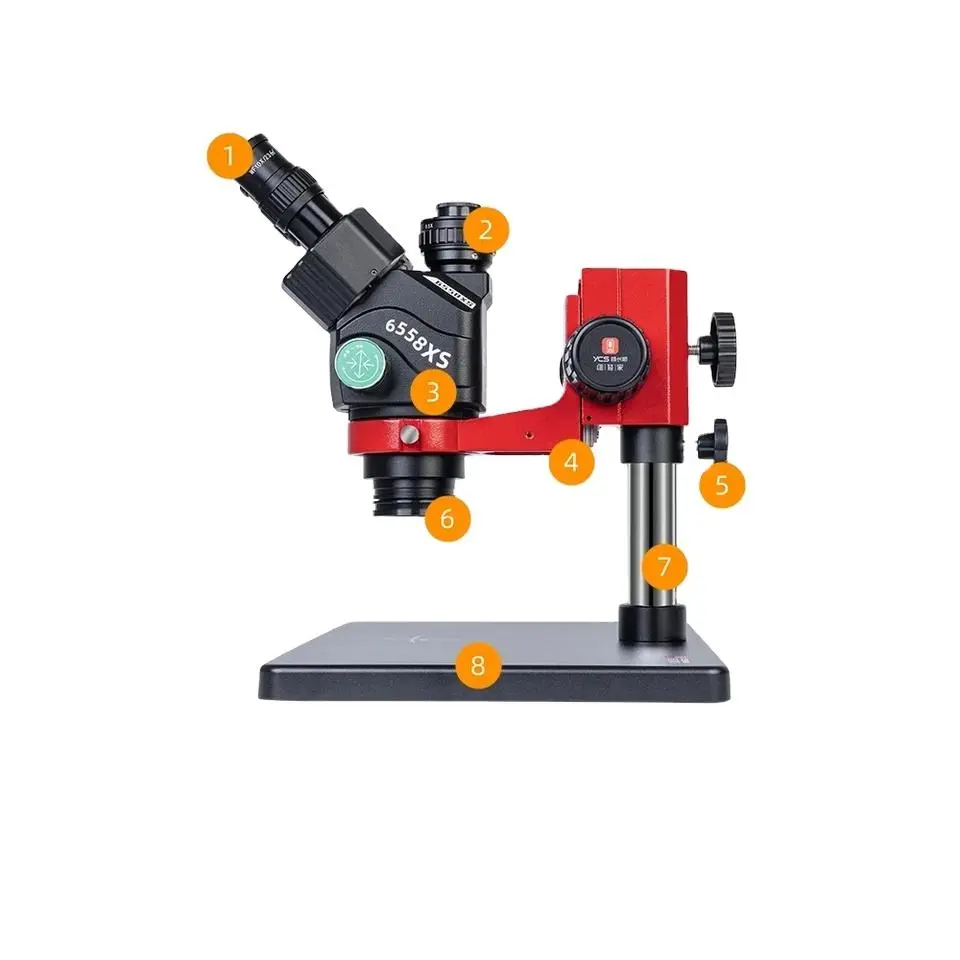

1. 1 × YCS 6558XS Main Unit (Microscope Optical Head)
2. 2 × High-Eyepoint Wide-Angle 10×23 Eyepieces
3. 2 × Soft Rubber Eyepiece Eyeguard Rings
4. 1 × CTV 0.5X Camera Adapter Lens
5. 1 × 360° Rotating Main Unit Bracket & Focusing Arm
6. 1 × Vertical Support Column Pillar
7. 1 × Column Safety Limiter Ring
8. 1 × Heavy Metal Microscope Base Plate
9. 1 × Snap-On Ring LED Light Plate with Power Cable
10. 1 × Screw-On Dust Cover Lens
