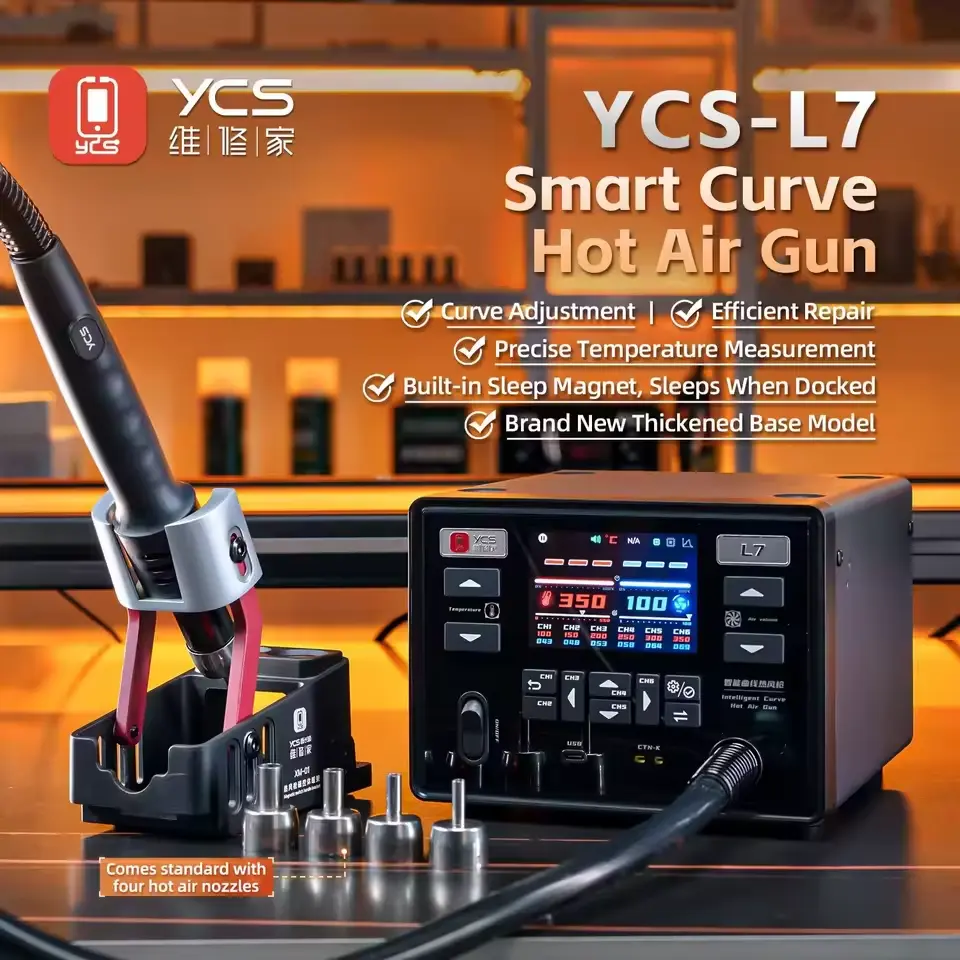

The YCS L7 Smart Curve Hot Air Gun 1400W SMD Rework Station is an advanced micro-soldering thermal platform engineered specifically for motherboard repair, CPU layering, BGA chip reballing, and delicate IC desoldering. Conventional rework stations with fixed heat output and abrupt airflow surges concentrate uncontrolled thermal stress on dense logic boards, frequently resulting in delaminated PCB layers, warped ground planes, and solder popping beneath adjacent underfilled chips. The YCS L7 solves this by integrating a custom 1400W high-power heating engine driven by intelligent thermal and airflow curve programming.

Equipped with an intuitive HD color display and dedicated multi-channel memory (CH1–CH6), the L7 provides 18 one-touch preset modes categorized into Curve Mode, Large Chip Mode, and Small Chip Mode. Technicians can execute linear thermal ramping for heat-sensitive baseband processors, wide even heating for multi-core CPUs, or gentle soft air for microscopic SMD passives. The station features an integrated magnetic induction handle bracket that initiates rapid auto-cooling and enters a deep sleep state the moment the handpiece is docked, dramatically extending the life of the internal heating core and reducing energy consumption. Bundled with four quick-change precision nozzles (5mm, 6mm, 8mm, and 10mm), the YCS L7 is an indispensable centerpiece available at Fixtools.

Key Features

1. 1400W High-Efficiency Heating Power: Custom heating core delivers ultra-fast thermal ramp-up to operating temperature with zero standby lag.
2. Intelligent Thermal & Airflow Curve Control: Programmable curve delivery eliminates thermal shock, protecting fragile internal circuit traces and preventing PCB blistering.

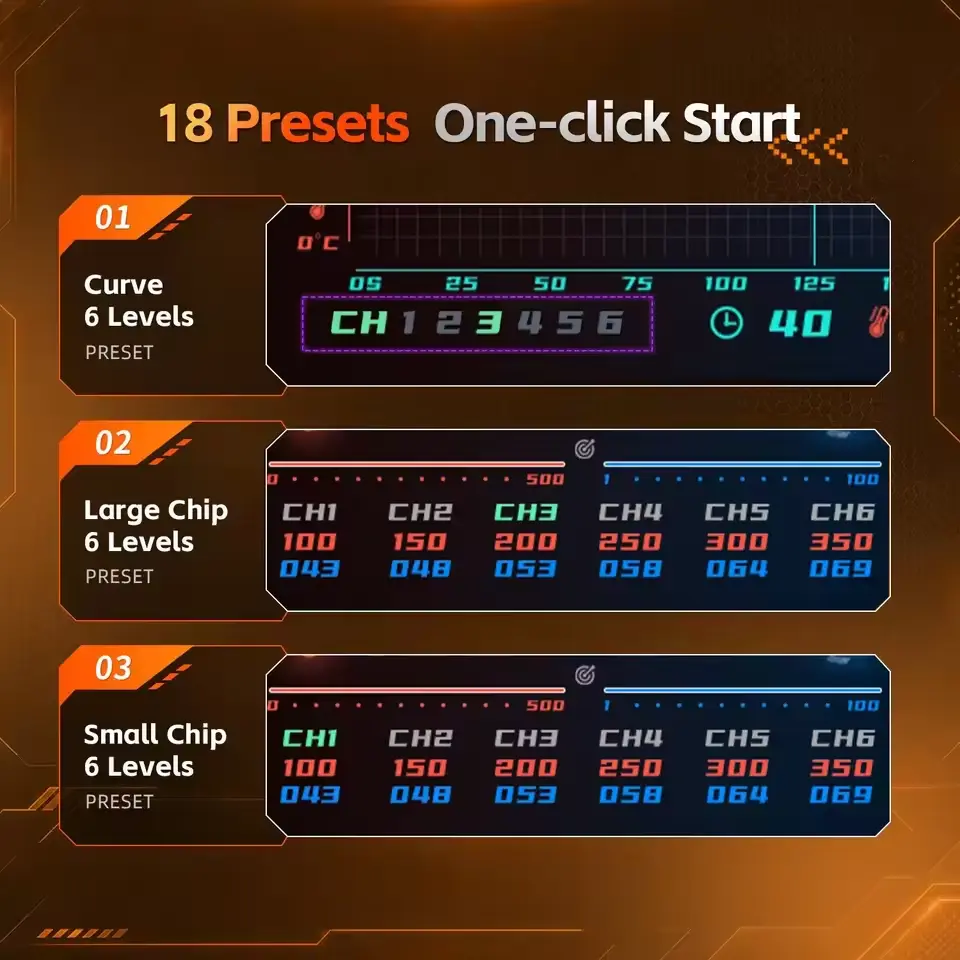

3. 18 One-Click Preset Modes: Instant access across CH1–CH6 channels configured into 3 core modes: Curve Mode, Large Chip Mode, and Small Chip Mode.
4. Swirl Diffuser Airflow Engineering: Generates smooth, non-turbulent helical air output that prevents microscopic 0201/01005 passives from blowing away during reflow.

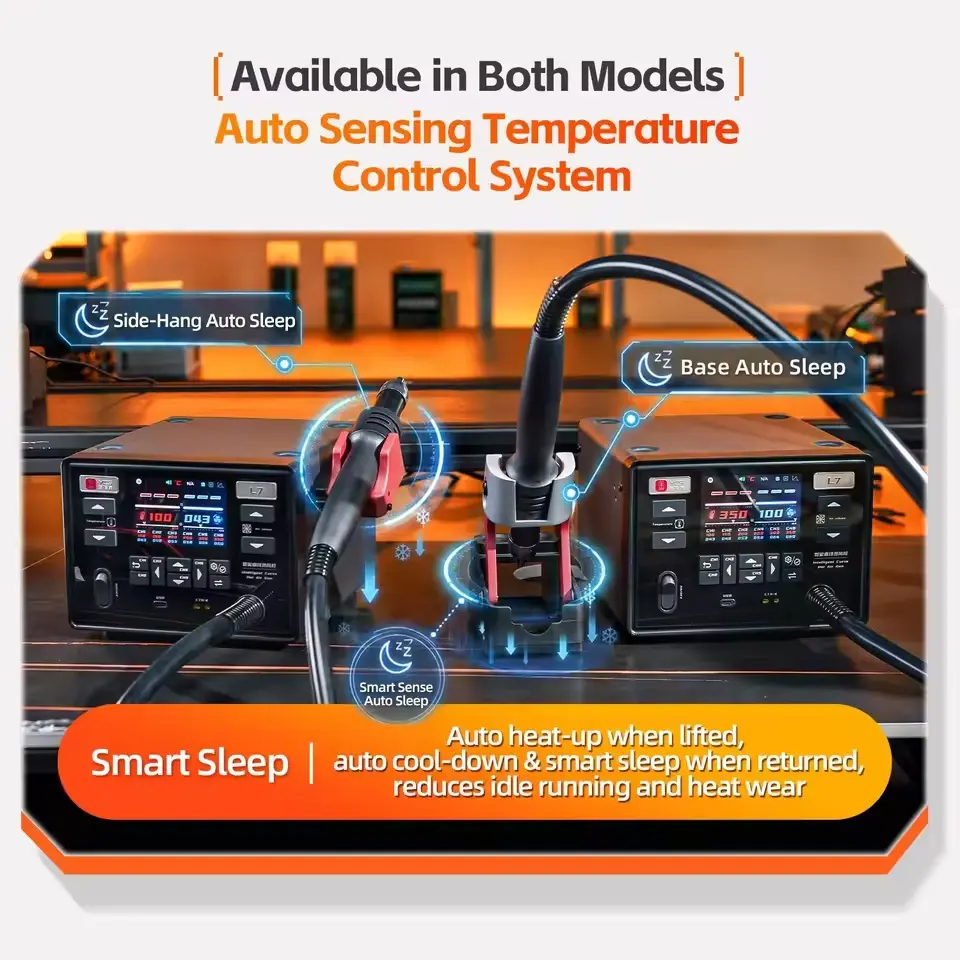

5. Magnetic Auto-Sleep Induction: Built-in handle sensor triggers high-volume cold air cooling and deep sleep upon docking, extending heating element lifespan.

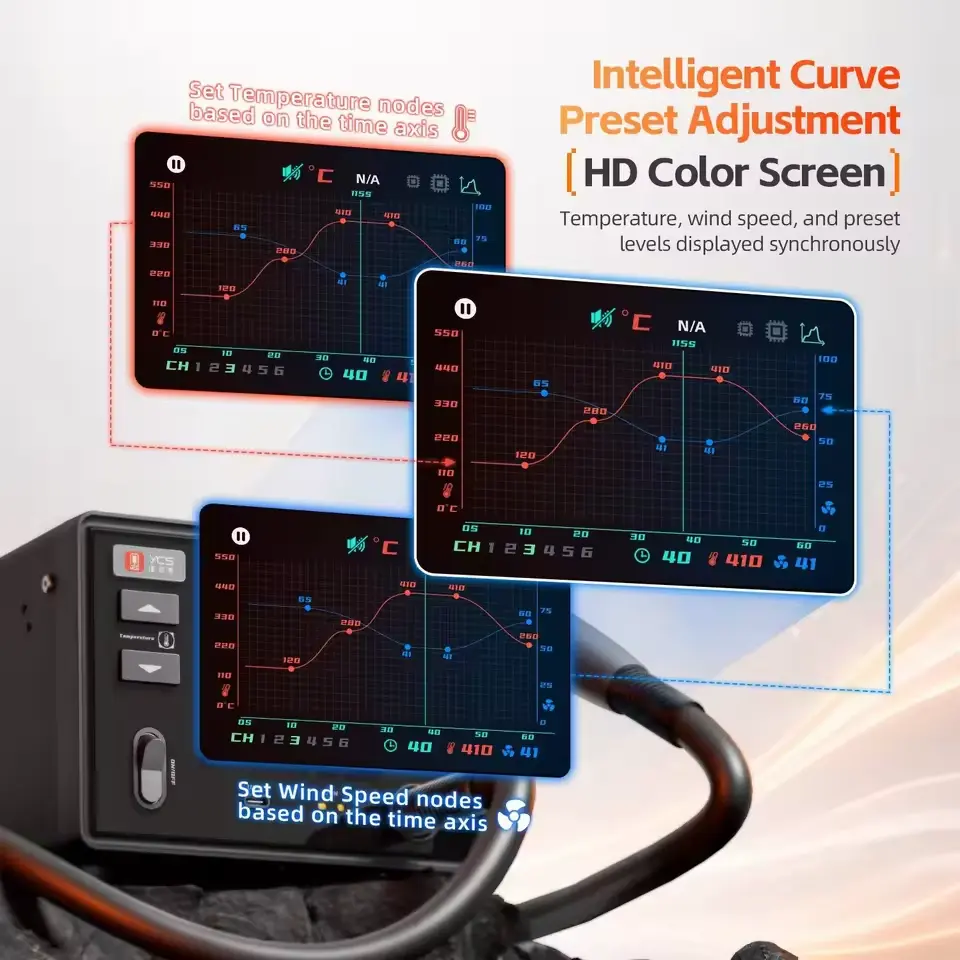

6. HD Color Digital Interface: Clear visual readout displays real-time temperature, airflow rates, active channels, and curve graphs at a glance.

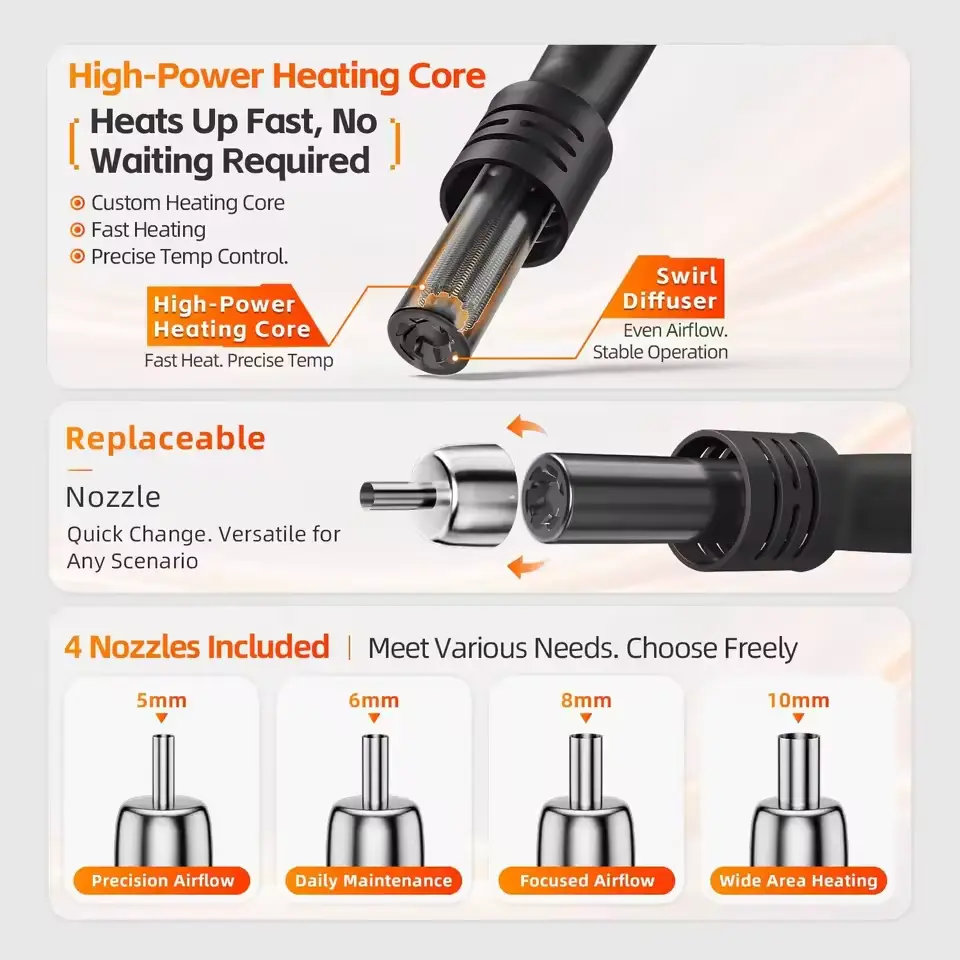

7. 4 Interchangeable Quick-Change Nozzles: Includes 5mm, 6mm, 8mm, and 10mm nozzles to accommodate focused pinpoints, daily maintenance, and wide-die reflow.
8. Universal Board-Level Servicing: Engineered for double-layer sandwich boards, motherboard reballing, QFN connectors, and dock flex soldering.

Specifications

1. Brand: YCS / YCS Repair Master
2. Model: YCS-L7 (Smart Curve Heat Gun L7)
3. Product Type: Intelligent Curve Hot Air SMD Rework Station
4. Maximum Power Output: 1400 W (Max)
5. Operating Voltage: AC 220V Version (50/60 Hz)
6. Display Type: HD Full-Color Digital Display
7. Temperature Control Range: 100°C – 470°C
8. Preset Channels: 18 Total Presets (CH1 to CH6 across Curve, Large Chip, and Small Chip Modes)
9. Airflow Delivery: Swirl Diffuser Configuration (Adjustable Fan Speed)
10. Standby / Sleep Mechanism: Magnetic Induction Sensor Auto-Cooling & Sleep Dock
11. Included Nozzles: 4 Pieces (5 mm, 6 mm, 8 mm, 10 mm)
12. Product Dimensions: Approx. 193 mm × 232 mm × 150 mm
13. Product Net Weight: Approx. 2.0 kg
14. Total Package Weight: Approx. 2.5 kg
15. Application Range: Motherboard CPU / NAND BGA Reballing, SMD Desoldering, Middle Frame Delamination, Connector Soldering, Board-Level Electronics Rework

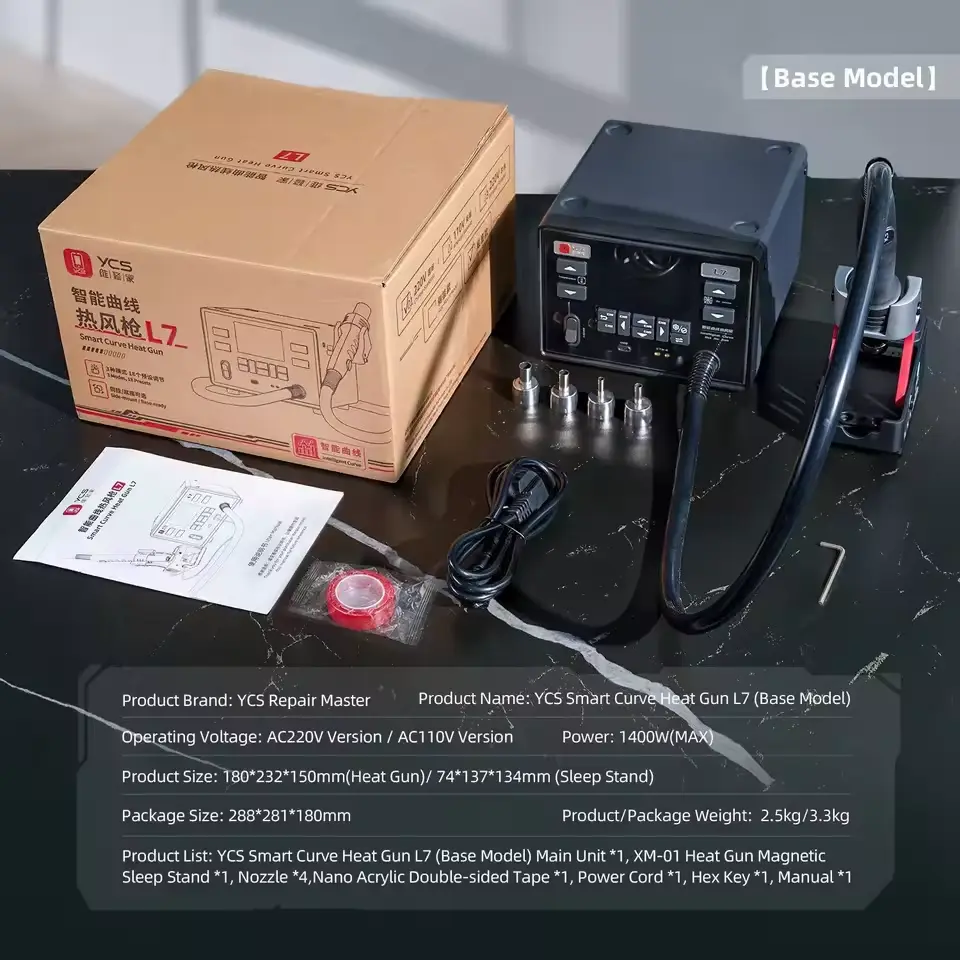

Package Includes

1. 1 × YCS L7 1400W Smart Curve Hot Air Rework Station Main Unit
2. 1 × Hot Air Gun Handpiece with Integrated Cable
3. 1 × Magnetic Switch Sleep Dock Handle Stand
4. 4 × Precision Interchangeable Nozzles (5mm, 6mm, 8mm, 10mm)
5. 1 × AC 220V Power Cable
6. 1 × Hex Key / Assembly Tool
