The YCS Mr.Yang No-Disassembly Read/Write Charging Chip Reader Kit (Model 4006) is a professional micro-soldering and logic board programming solution engineered specifically for iPhone 15 and iPhone 16 series charging IC diagnostics, data repair, and EEPROM restoration. Traditional methods require tedious logic board separation or high-heat desoldering of sensitive power management and USB-C chips; this advanced programmer enables technicians to read, backup, and flash charging chip EEPROM data without desoldering or layering the motherboard.

Equipped with high-precision test probes and secure connection clamps, the 4006 kit ensures stable, low-latency communication with the onboard charging controller IC and logic circuits. By eliminating motherboard split and reballing cycles, it drastically cuts diagnostic turnaround time, prevents thermal shock to neighboring BGA components, and fixes persistent charging handshake failures, slow charging loops, and connection data errors with maximum workbench safety.

Key Features

1. No-Disassembly Programming: Reads and writes charging IC and EEPROM data without desoldering chips or separating double-stacked logic boards.
2. Full iPhone 15 & 16 Series Coverage: Fully compatible with iPhone 15, 15 Plus, 15 Pro, 15 Pro Max, 16, 16 Plus, 16 Pro, and 16 Pro Max.
3. USB-C & Charging Logic Recovery: Resolves charging loop failures, accessory recognition errors, and lost charging controller handshake data.

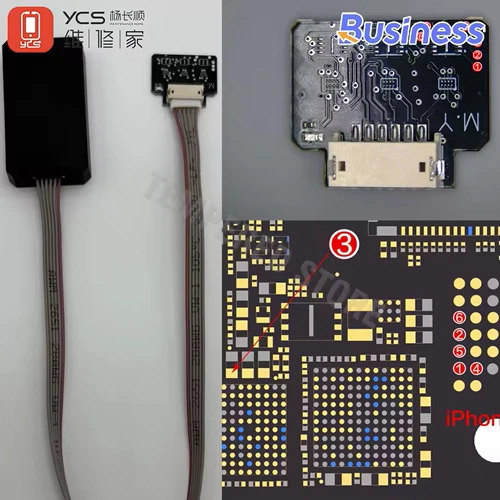

4. Precision Clamping & Test Probes: Integrated alignment clamps maintain stable, firm pin contact during read/write cycles to prevent communication drops.
5. Reduces Motherboard Thermal Risk: Avoids heating cycles on CPU and baseband areas caused by hot air desoldering and board layering.
6. Fast Diagnostic Turnaround: Streamlines workshop operations by cutting hours of teardown down to a fast plug-and-program workflow.
7. Compact & Workshop-Ready Build: Lightweight, durable structure with built-in current overload safeguards for reliable daily repair bench use.

Specifications

1. Brand: YCS (Mr. Yang)
2. Model: 4006
3. Product Type: No-Disassembly Charging IC / EEPROM Programmer & Reader Kit
4. Compatible Models: iPhone 15 / 15 Plus / 15 Pro / 15 Pro Max, iPhone 16 / 16 Plus / 16 Pro / 16 Pro Max
5. Operation Mode: Non-Layering In-Circuit Read/Write / Direct Probe Interface
6. Supported ICs: USB-C Charging Controller IC, Baseband/Logic EEPROM, Power Management Sub-circuits
7. Application: Logic Board Charging Fault Troubleshooting, Chip Data Restoration, Non-Invasive IC Programming

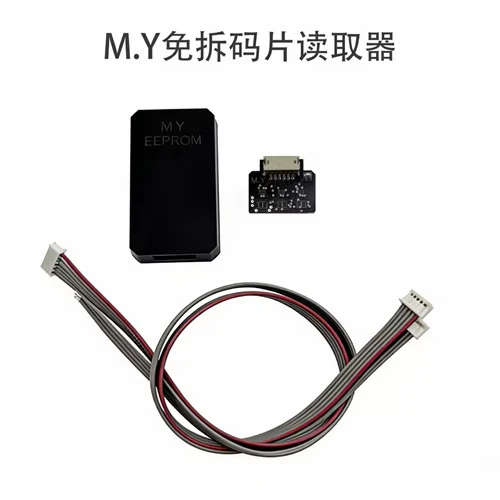

Package Includes

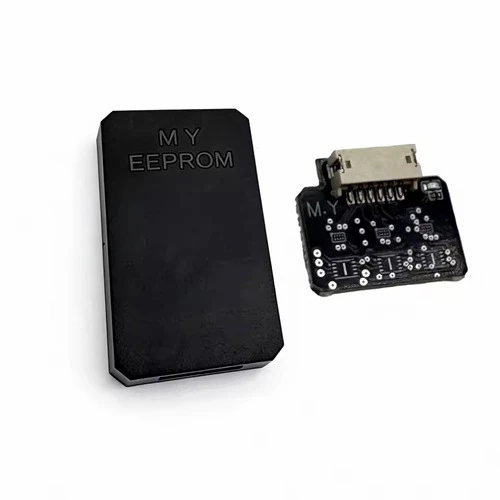

1. 1 × YCS Mr.Yang 4006 Charging IC Programmer Unit

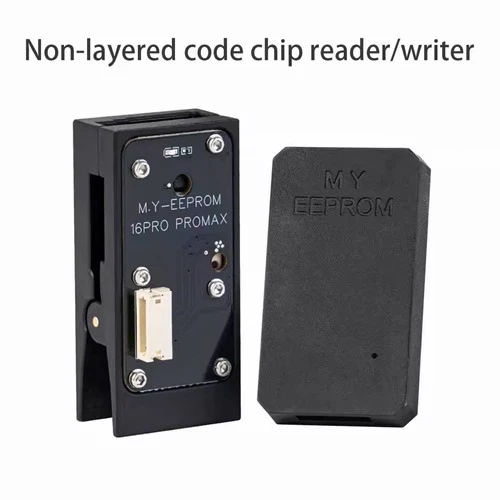

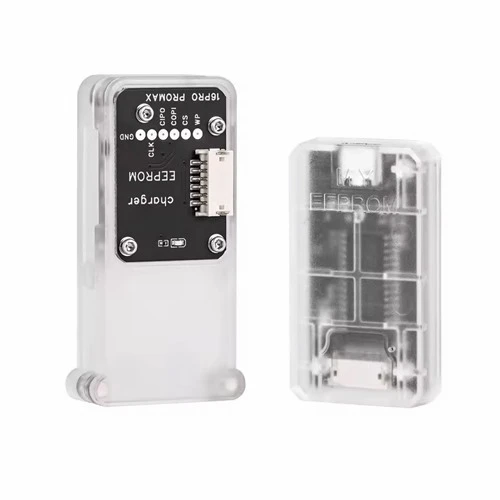

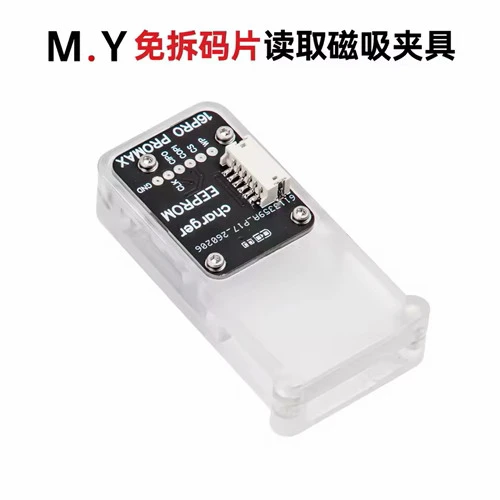

2. 1 × Precision Motherboard Alignment Clamp / Probe Assembly

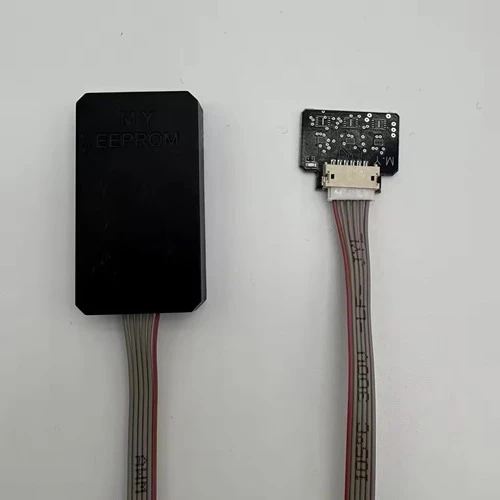

3. 1 × Interface Connecting Cable

Important Notice & Terms

Important Advisory: Please ensure full technical compatibility and model verification before confirming your order. Products listed are sold under a strict No Return, No Exchange, and No Refund policy. Limited technical support is offered where feasible and cannot be guaranteed for every application. Fixtools is not liable for incorrect ordering or damage caused by improper usage; purchasing decisions rest entirely with the customer.
