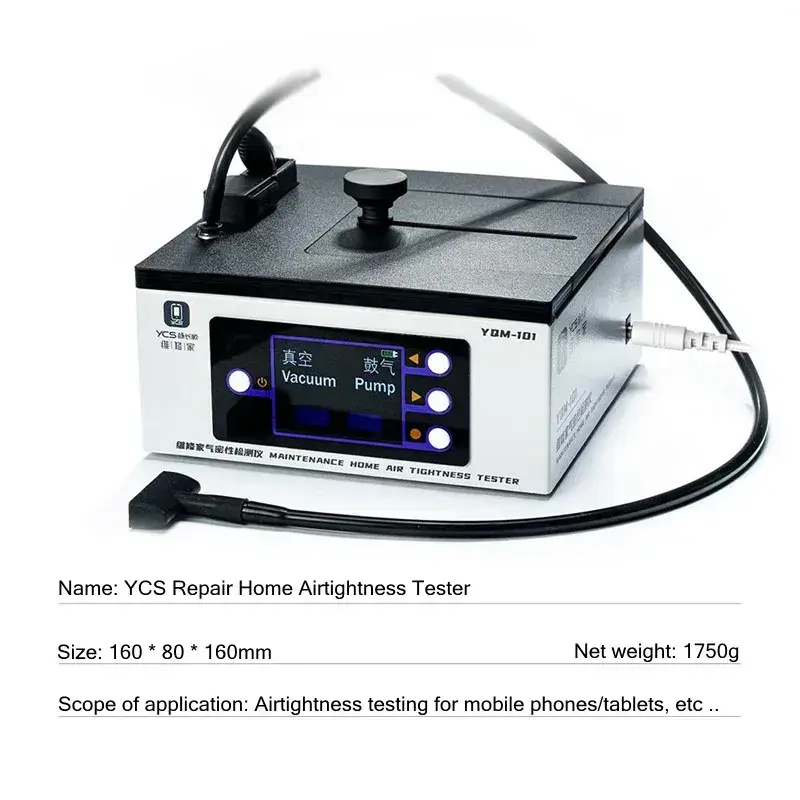

The YCS YQM-101 Digital Air Tightness Tester is an automated diagnostic device engineered for verifying waterproof seals, adhesive bonding, and chassis integrity in mobile phones and tablets. Refurbishing screens or replacing back covers requires verifying the device's IP68 water resistance without submerging the electronics in liquid. The YQM-101 tests seal integrity completely dry using an integrated vacuum pump system that executes dual negative pressure and positive pressure test cycles.

Equipped with dual-sided digital displays (front and rear), the machine provides clear real-time pressure curves and numerical readings visible to both the technician and the customer. Its universal adjustable testing platform expands to fit compact smartphones, large flagships, and full-sized tablets. By automating pressure stabilization, decay testing, and leak identification, the YCS YQM-101 delivers fast and non-destructive waterproof detection available at Fixtools.

Key Features

1. Integrated Vacuum Pump: Built-in internal pump eliminates the need for bulky external air compressors or manual hand pumps.

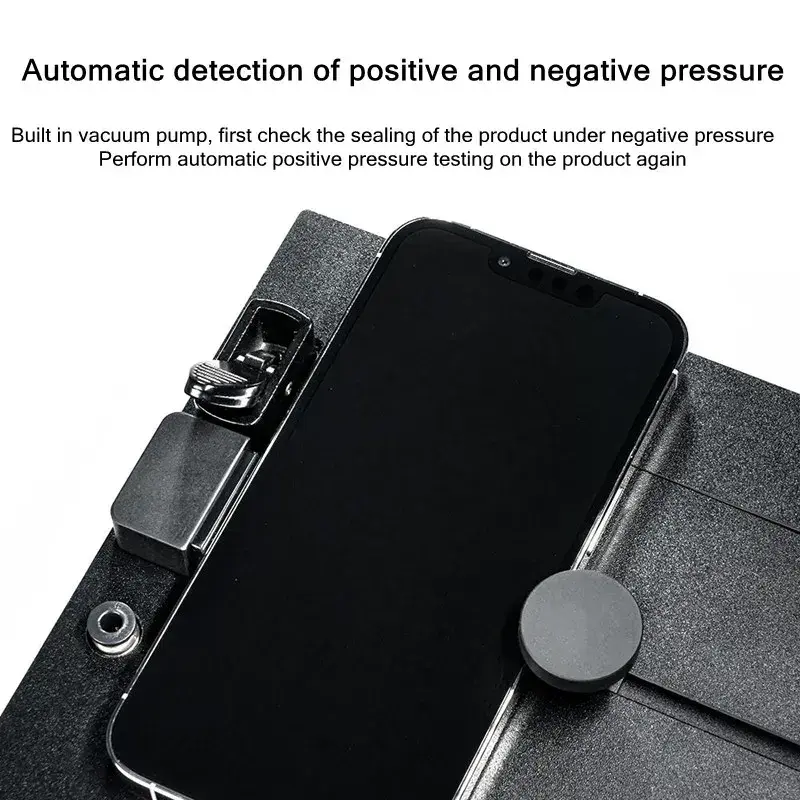

2. Automated Dual-Pressure Testing: Automatically executes negative pressure seal detection followed by positive pressure testing for accurate leakage analysis.

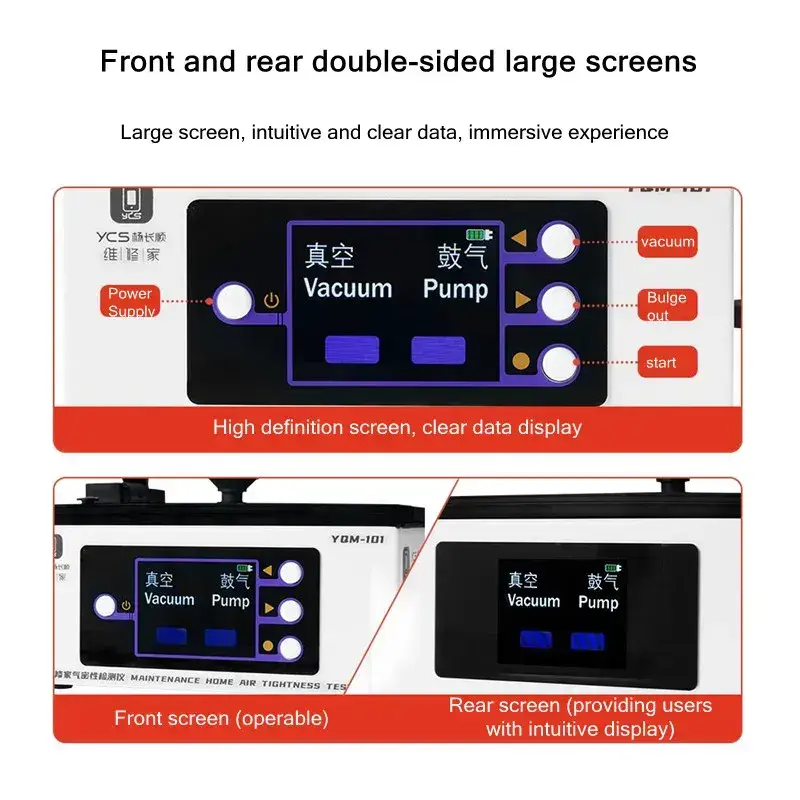

3. Dual Large Digital Displays: Front and rear high-contrast digital screens show real-time pressure readouts clearly to both technician and customer.
4. Non-Destructive Dry Testing: Inspects IP67/IP68 chassis water resistance without exposing electronic assemblies to moisture or water baths.

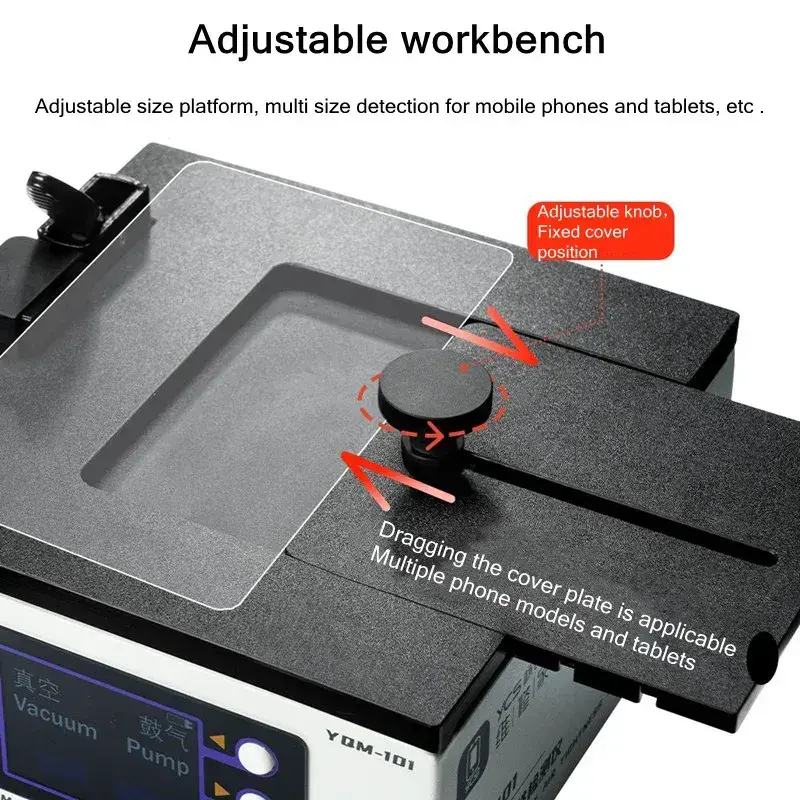

5. Universal Adjustable Workbench: Expanding platform accommodates various device dimensions from smartphones to large tablets.
6. Rapid Fault Detection: Quickly reveals microscopic gaps around SIM trays, display adhesive frames, speaker grilles, and camera rings.
7. Wide Voltage Compatibility: Works with AC 110V–240V power inputs for consistent operation in any workshop setting.
8. Rugged Metal Housing: Heavy-duty metal construction resists bench wear and provides stable desktop operation.

Specifications

1. Brand: YCS / YCS Repair Master
2. Model: YQM-101 (YCS YQM-101)
3. Product Name: YCS YQM-101 Air Tightness Tester
4. Product Type: Automatic Positive & Negative Pressure Air Leak Detection Machine
5. Housing Material: Heavy-Duty Metal Alloy
6. Operating Voltage: AC 110V – 240V (Universal 50/60 Hz)
7. Display Configuration: Front and Rear Dual Large Digital Displays
8. Internal Pump: High-Efficiency Built-in Vacuum Pump System
9. Testing Modes: Negative Pressure Sealing Check & Automatic Positive Pressure Leak Detection
10. Single Package Dimensions: 17 cm × 17 cm × 10 cm
11. Single Gross Weight: Approx. 3.0 kg
12. Device Compatibility: Apple iPhone, iPad, Samsung Galaxy, Android Smartphones, Tablets, and Sealed Electronics
13. Application Range: Display Refurbishment Testing, Back Glass Seal Verification, Waterproof Housing Diagnostics, Chassis Pressure Decay Testing

Package Includes

1. 1 × YCS YQM-101 Air Tightness Tester Main Host
2. 1 × AC Power Cable
