The SOPTOP SZM-6565Pro Trinocular Stereo Zoom Microscope is a high-precision optical inspection and micro-soldering workstation engineered specifically for mobile phone logic board repair, BGA chip reballing, jumper wire routing, and precision electronics servicing. Performing intricate micro-soldering on dense modern smartphone PCBs requires high optical clarity, generous vertical clearance, and accurate hand-eye coordination. The SOPTOP SZM-6565Pro delivers this with a continuous 6.5X to 65X optical zoom ratio paired with high-eyepoint WF10X/23 wide-field ocular optics and an included 0.5X auxiliary objective lens.

Engineered with a synchronous trinocular optical path, the SZM-6565Pro enables dual-channel operation: technicians can observe components directly through the binocular eyepieces while simultaneously streaming synchronized, high-definition video to an external display via the included 0.5X CTV camera adapter. The 0.5X objective lens extends the vertical working distance, providing ample physical clearance for hot air rework nozzles, micro-soldering irons, and curved tweezers. Featuring a 144-LED variable ring illuminator, a bottom protective glass shield, a dust cover, and a heavy-duty metal workbench baseplate with an integrated repair mat, the SOPTOP SZM-6565Pro is a professional benchtop optical solution available at Fixtools.

Key Features

1. High-Precision 6.5X–65X Continuous Zoom: Smooth magnification adjustment allows seamless transition from complete PCB overviews to microscopic solder pads and IC pins without swapping lenses.
2. Synchronous Trinocular Optical System: Simultaneous dual-path viewing keeps eyepiece observation and digital monitor display aligned in real time.
3. Dedicated 0.5X CTV Camera Adapter: Expands the digital camera’s observable field of view and ensures proper parfocal alignment with the ocular lenses.
4. Includes 0.5X Auxiliary Objective Lens: Increases vertical working distance and broadens the field of view, creating ample clearance for soldering tools and preheaters.
5. 144-LED Adjustable Ring Light: Delivers intense, shadow-free circular illumination with smooth dial brightness adjustment to prevent glare on reflective solder joints.

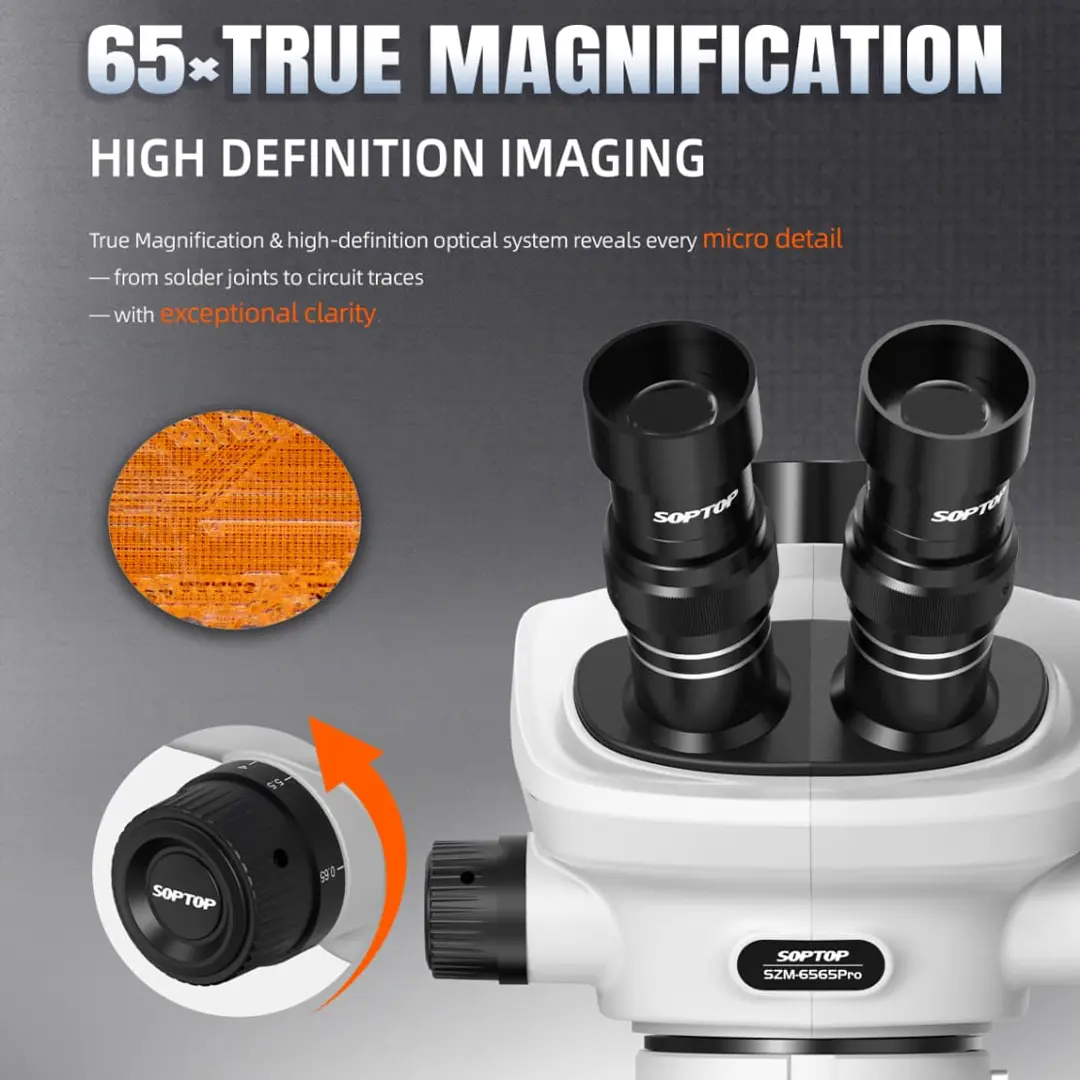

6. High-Eyepoint WF10X/23 Eyepieces: 23mm wide-field optical glass lenses deliver sharp edge-to-edge flatness, true color rendition, and reduced visual fatigue.
7. 45° Inclined & 360° Rotatable Head: Ergonomic viewing angle relieves neck and back strain, while full 360° rotation provides flexible positioning on crowded workbenches.
8. Heavy-Duty Base with Integrated Repair Mat: Solid metal base with an integrated heat-resistant silicone work mat provides vibration-free stability for delicate micro-soldering.

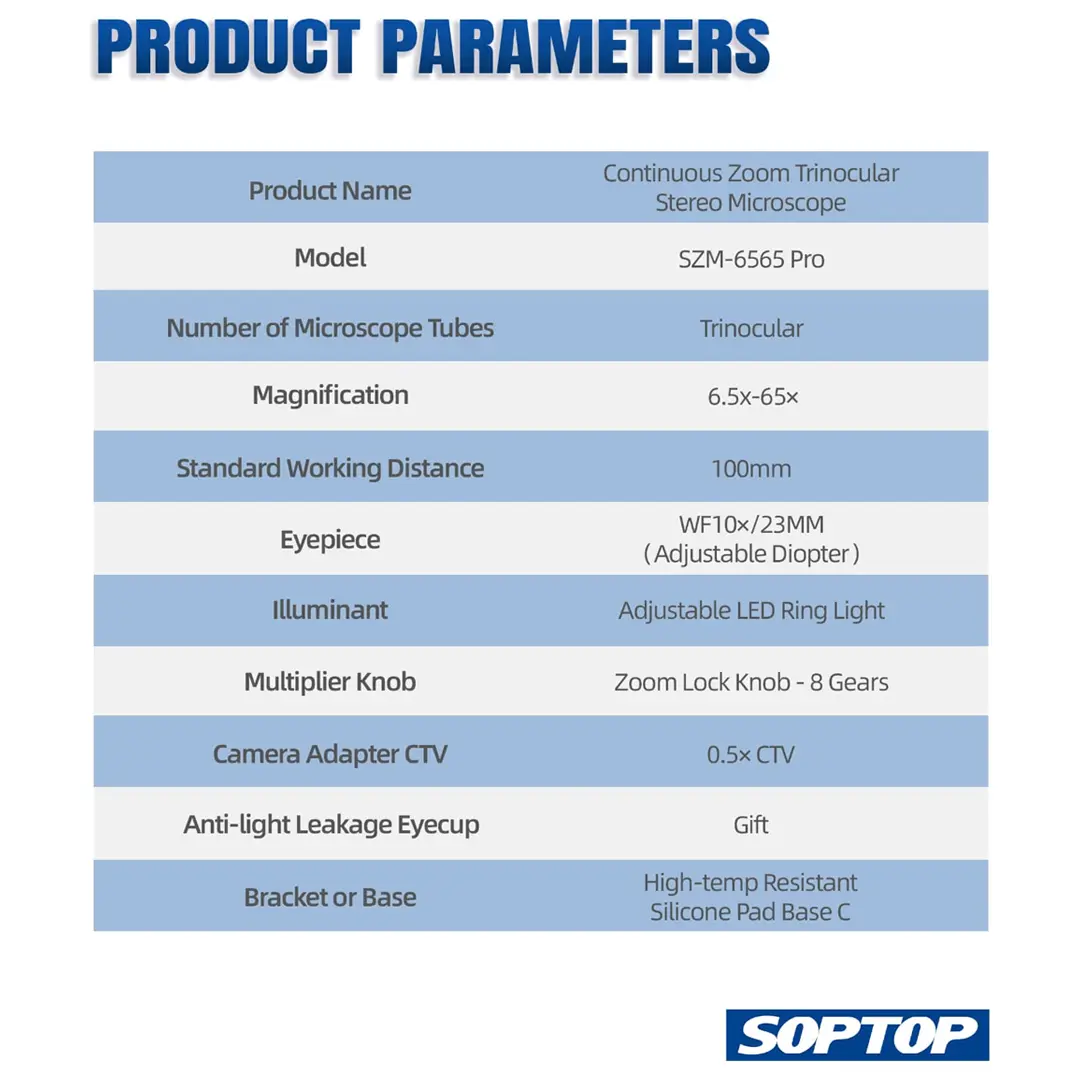

Specifications

1. Brand: SOPTOP
2. Model / SKU: SZM-6565Pro / SKU 12183
3. Product Name: SOPTOP SZM-6565Pro Trinocular Stereo Zoom Microscope
4. Product Type: Continuous Stereo Zoom Trinocular Microscope
5. Optical Zoom Range: 6.5X – 65X Continuous Magnification
6. Observation Head: 45° Inclined Trinocular Head, 360° Swivel Rotation
7. Eyepieces: WF10X / 23 mm High-Eyepoint Wide-Angle Optics (Pair)
8. Camera Interface: Dedicated Vertical Photo Port with 0.5X CTV Adapter
9. Auxiliary Objective Lens: 0.5X Working Clearance Extension Objective Lens
10. Illumination Source: 144-LED High-Brightness Ring Light with Adjustable Intensity Control
11. Optical Protection: Bottom Screw-On Dust & Solder Fume Protective Glass Shield
12. Base Type: Heavy-Duty Metal Workbench Base Plate with Integrated Mat
13. Column Mechanism: Solid Steel Pillar Rod with Mechanical Safety Limits Block
14. Focusing System: Coarse and Fine Dual-Knob Rack-and-Pinion Focusing Block
15. Application Range: Smartphone Logic Board Repair, BGA IC Reballing, CPU Jumper Routing, PCB Track Diagnostics, Precision Electronics Inspection

Package Includes

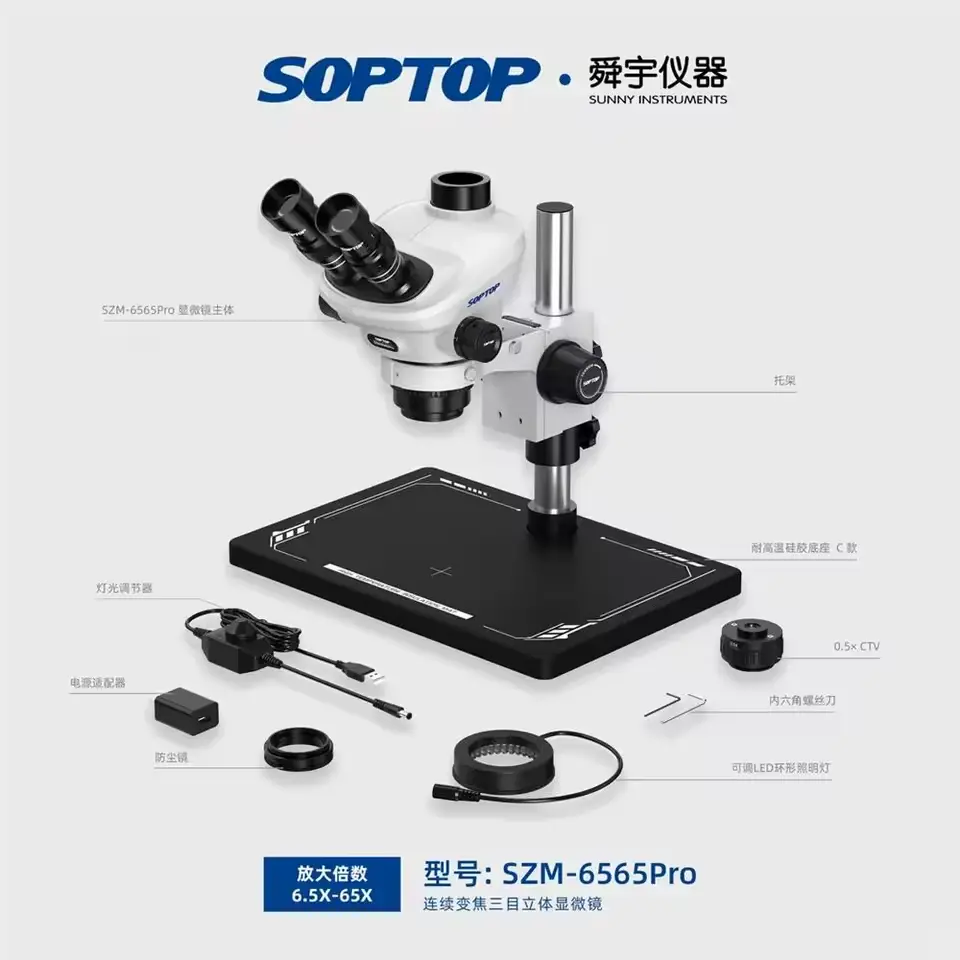

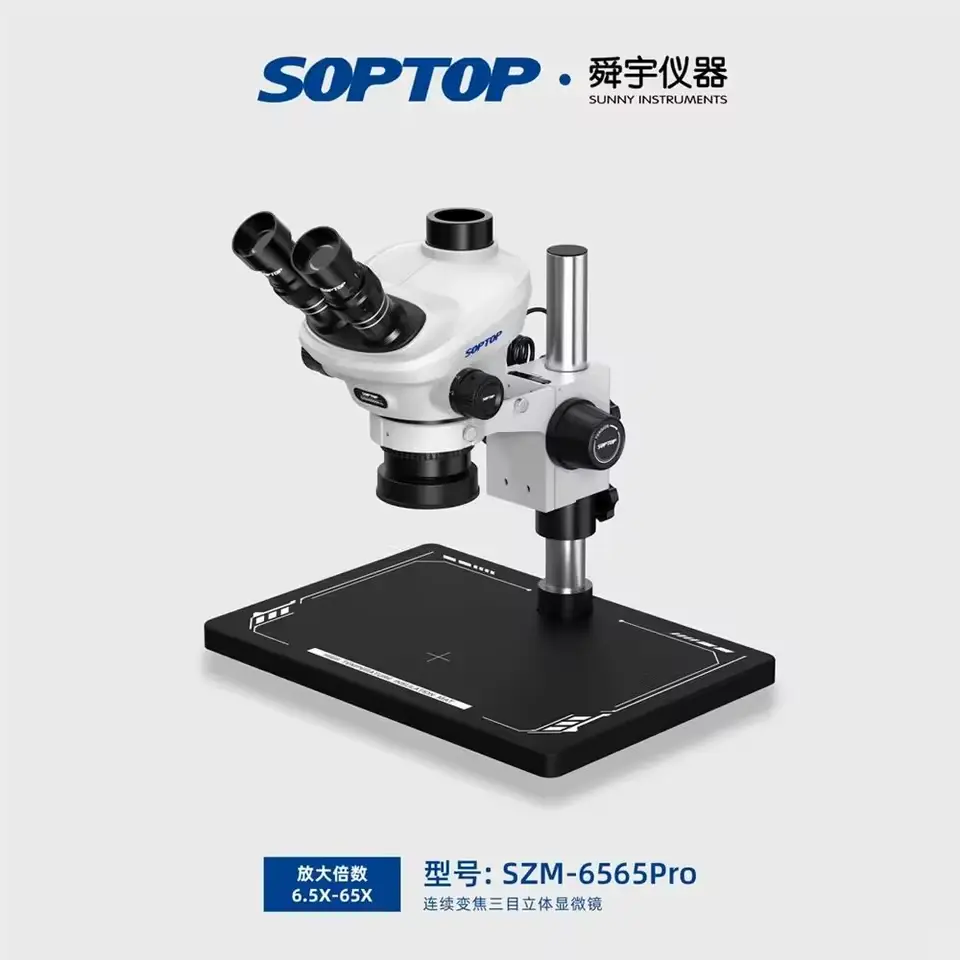

1. 1 × SOPTOP SZM-6565Pro Trinocular Microscope Optical Head
2. 1 × Heavy Metal Base with Integrated Repair Mat
3. 1 × Vertical Support Column Rod
4. 1 × Precision Focusing Bracket Block
5. 1 × Column Safety Limits Block
6. 1 × 0.5X Objective Lens
7. 1 × 0.5X CTV Camera Adapter Lens
8. 1 × Extra Protective Glass Shield
9. 1 × 144-LED Adjustable Ring Light with Power Adapter
10. 2 × WF10X/23 Wide-Field Eyepieces
11. 1 × Pair Small Eyepiece Rubber Eye Cups
12. 1 × Dedicated Dust Cover
