The SOPTOP SZM-7060Pro Trinocular Stereo Zoom Microscope is a high-precision optical inspection and micro-soldering platform engineered specifically for smartphone motherboard repair, CPU jumper wire routing, BGA chip reballing, and electronics laboratory diagnostics. Technicians working with complex high-density PCBs often face optical distortion, restricted focal depths, or camera view desynchronization during rework. The SOPTOP SZM-7060Pro resolves this by delivering an advanced continuous optical zoom range (6.5X–65X / 7X–60X) paired with high-eyepoint WF10X/22 wide-field ocular optics and an included 0.5X auxiliary objective lens.

Equipped with a synchronous trinocular optical system, the station supports simultaneous dual-path viewing—allowing technicians to work comfortably through both eyepieces while simultaneously streaming high-definition, real-time video to an external HDMI monitor via the included 0.5X CTV camera adapter. The system maintains synchronized focal alignment between the monitor and ocular lenses across the entire zoom range. Complete with a 144-LED adjustable ring illuminator for shadow-free lighting, a bottom protective glass shield, and a heavy-duty metal workbench base with an integrated heat-resistant repair mat, the SOPTOP SZM-7060Pro is an indispensable optical solution available at Fixtools.

Key Features

1. 6.5X–65X / 7X–60X Continuous Zoom Range: Smooth magnification control allows seamless transitions between overall board layout triage and micro-trace jumper repairs.
2. Synchronous Trinocular Optical Port: Dedicated vertical camera port allows simultaneous eyepiece observation and real-time external monitor display without cutting off optical light paths.
3. Includes 0.5X CTV Camera Lens: Expands the digital camera's field of view and ensures true parfocal alignment between monitor output and optical eyepieces.
4. 0.5X Auxiliary Objective Lens Included: Extends vertical working clearance, providing ample room for soldering iron tips, hot air nozzles, and tweezers.
5. 144-LED Adjustable Ring Illuminator: Delivers bright, shadow-free circular illumination with smooth dial brightness control to eliminate glare on reflective solder joints.
6. WF10X/22 Wide-Field Eyepieces: 22mm field-of-view optical glass lenses provide edge-to-edge flatness, sharp contrast, and reduced eye strain during extended repair sessions.
7. 360° Rotatable & 45° Inclined Head: Ergonomic viewing angle relieves neck and back strain, while full 360° rotation offers flexible bench positioning.

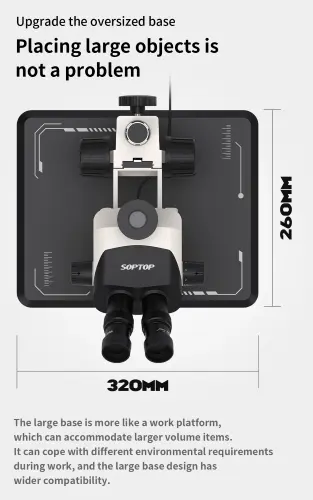

8. Heavy-Duty Base with Integrated Mat: Heavy metal workbench base equipped with a dedicated repair mat and column limit block provides rock-solid, vibration-free stability.

Specifications

1. Brand: SOPTOP
2. Model: SZM-7060Pro
3. Product Name: SOPTOP SZM-7060Pro Trinocular Stereo Zoom Microscope
4. Product Type: Continuous Stereo Zoom Trinocular Microscope
5. Optical Zoom Range: 6.5X – 65X Continuous Zoom (7X – 60X Nominal Range)
6. Observation Head: 45° Inclined Trinocular Head, 360° Swivel Rotation
7. Eyepieces: WF10X / 22 mm Wide-Field High-Eyepoint Eyepieces (Pair)
8. Camera Interface: Vertical Photo Port with Dedicated 0.5X CTV Adapter Lens
9. Auxiliary Objective Lens: 0.5X Working Clearance Extension Objective Lens
10. Illumination Source: 144-LED High-Brightness Circular Ring Light with Variable Intensity Control
11. Optical Protection: Screw-On Bottom Dust & Solder Fume Protective Glass
12. Base Type: Heavy-Duty Workbench Base Plate with Integrated Mat
13. Column Mechanism: Solid Pillar Support Rod with Mechanical Limits Block
14. Focusing System: Coarse and Fine Rack-and-Pinion Focusing Arm
15. Application Range: Smartphone Logic Board Micro-Soldering, BGA IC Reballing, CPU Jump Wire Routing, SMD Component Diagnostics, Electronics Lab Inspection

Package Includes

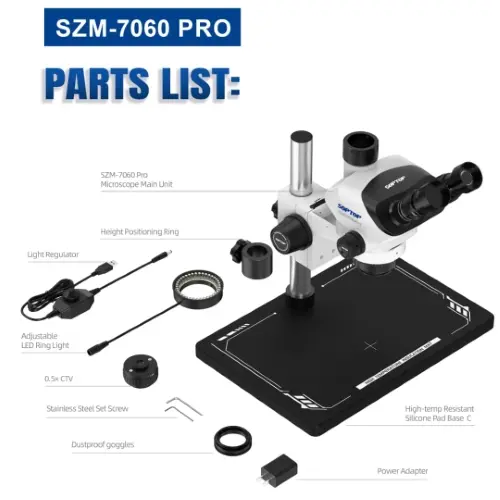

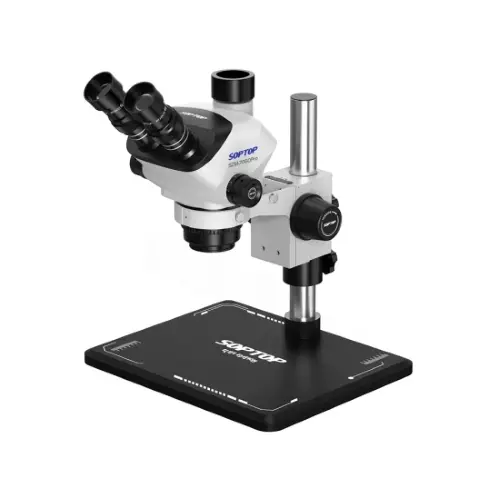

1. 1 × SOPTOP SZM-7060Pro Trinocular Microscope Optical Head
2. 1 × Heavy Metal Base with Integrated Repair Mat
3. 1 × Vertical Support Column Rod
4. 1 × Precision Focusing Bracket Block
5. 1 × Column Safety Limits Block
6. 1 × 0.5X Objective Lens
7. 1 × 0.5X CTV Camera Adapter Lens
8. 1 × Extra Protective Glass Shield
9. 1 × 144-LED Adjustable Ring Light with Power Adapter
10. 2 × WF10X/22 Wide-Field Eyepieces
11. 1 × Pair Small Eyepiece Rubber Eye Cups
