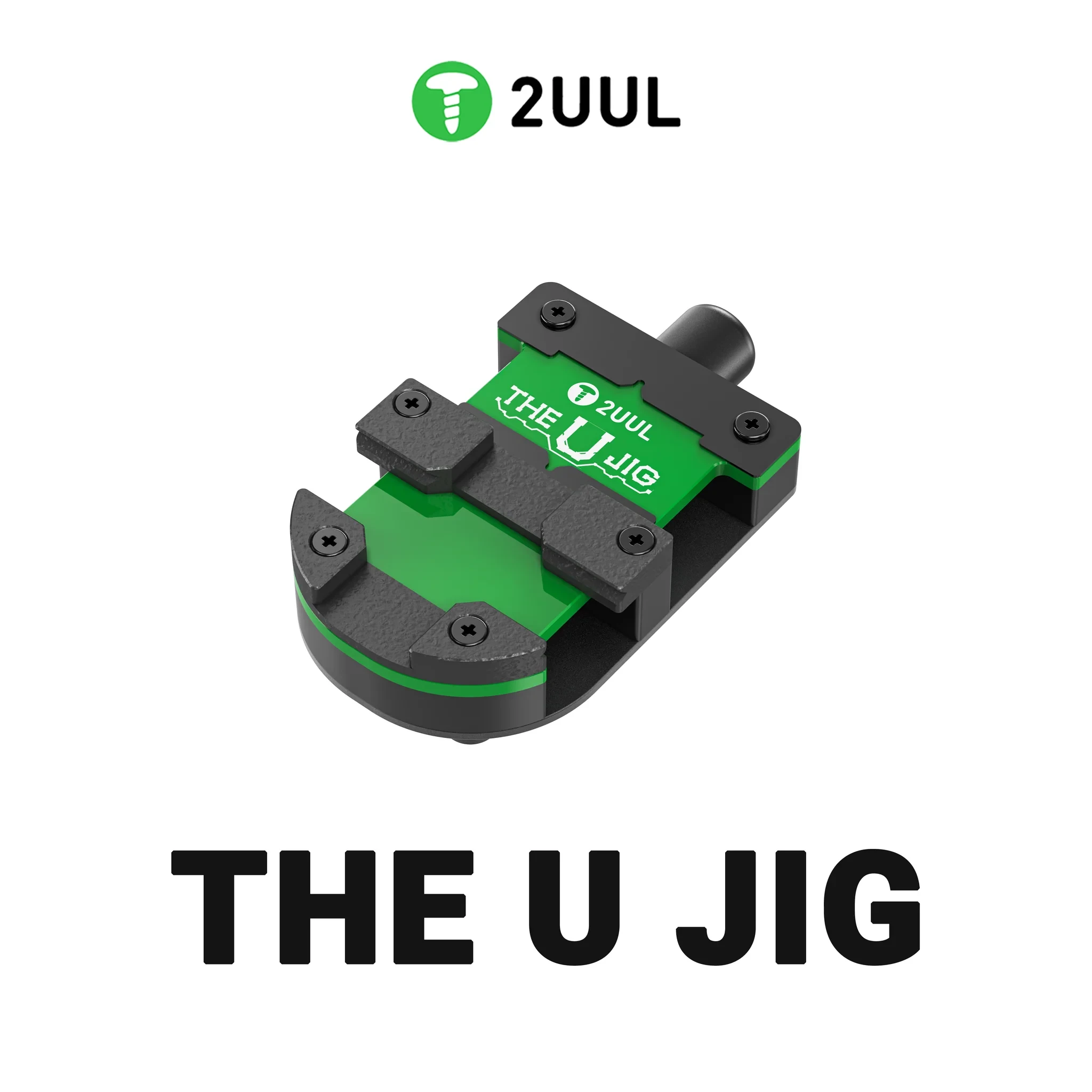

The 2UUL BH14 THE U JIG CPU IC Soldering Fixture is a professional-grade benchtop holding clamp engineered specifically for smartphone motherboard repair, CPU layering, BGA chip reballing, and precision micro-soldering. Holding loose logic boards or standalone IC chips with generic tweezers or flimsy clamps introduces severe risks during hot-air rework: thermal airflow and mechanical vibration can cause the board to shift, misaligning microscopic solder balls, smearing solder paste, or knocking off neighboring SMD components. The BH14 solves this by utilizing a specialized U-shaped structural clamping architecture powered by a heavy-duty internal spring mechanism, delivering a steady, non-slip grip that locks workpieces firmly in place.

Constructed from a robust metal chassis combined with high-temperature resistant synthetic stone clamping jaws, the BH14 withstands prolonged direct heat from hot-air guns without warping, softening, or drawing excessive heat away from the soldering joint. The precision-beveled clamping slots securely grip varying thicknesses of mobile phone logic boards, sandwich mid-frames, and bare semiconductor packages—such as Apple A-Series CPUs, Qualcomm Snapdragon processors, NAND flash modules, and baseband ICs. Its compact, low-profile footprint fits comfortably beneath stereomicroscopes and alongside preheating stations, making the 2UUL BH14 THE U JIG an essential fixture for mobile repair shops, hardware diagnostic labs, and micro-soldering technicians.

Key Features

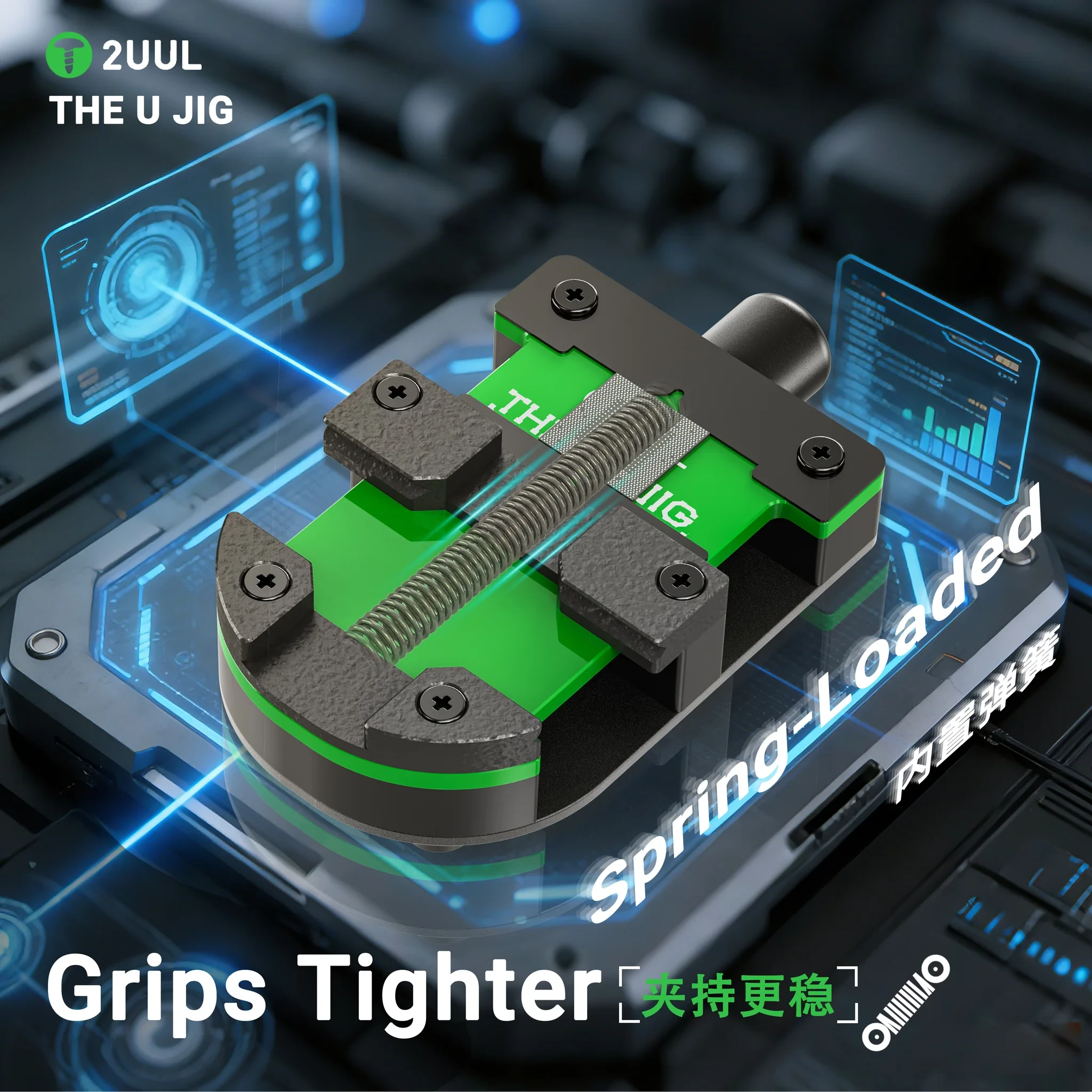

1. Heavy-Duty Spring Clamping System: Built-in high-tension spring provides continuous, balanced clamping pressure to prevent PCB movement or vibration during micro-soldering.
2. High-Temperature Resistant Synthetic Stone Jaws: Insulated clamping jaws endure direct hot-air desoldering and soldering iron contact without structural warping or heat sink loss.
3. U-Shaped Ergonomic Architecture: Low-profile U-frame design provides unobstructed 360-degree tool access for microscope objectives, tweezers, and hot-air nozzles.

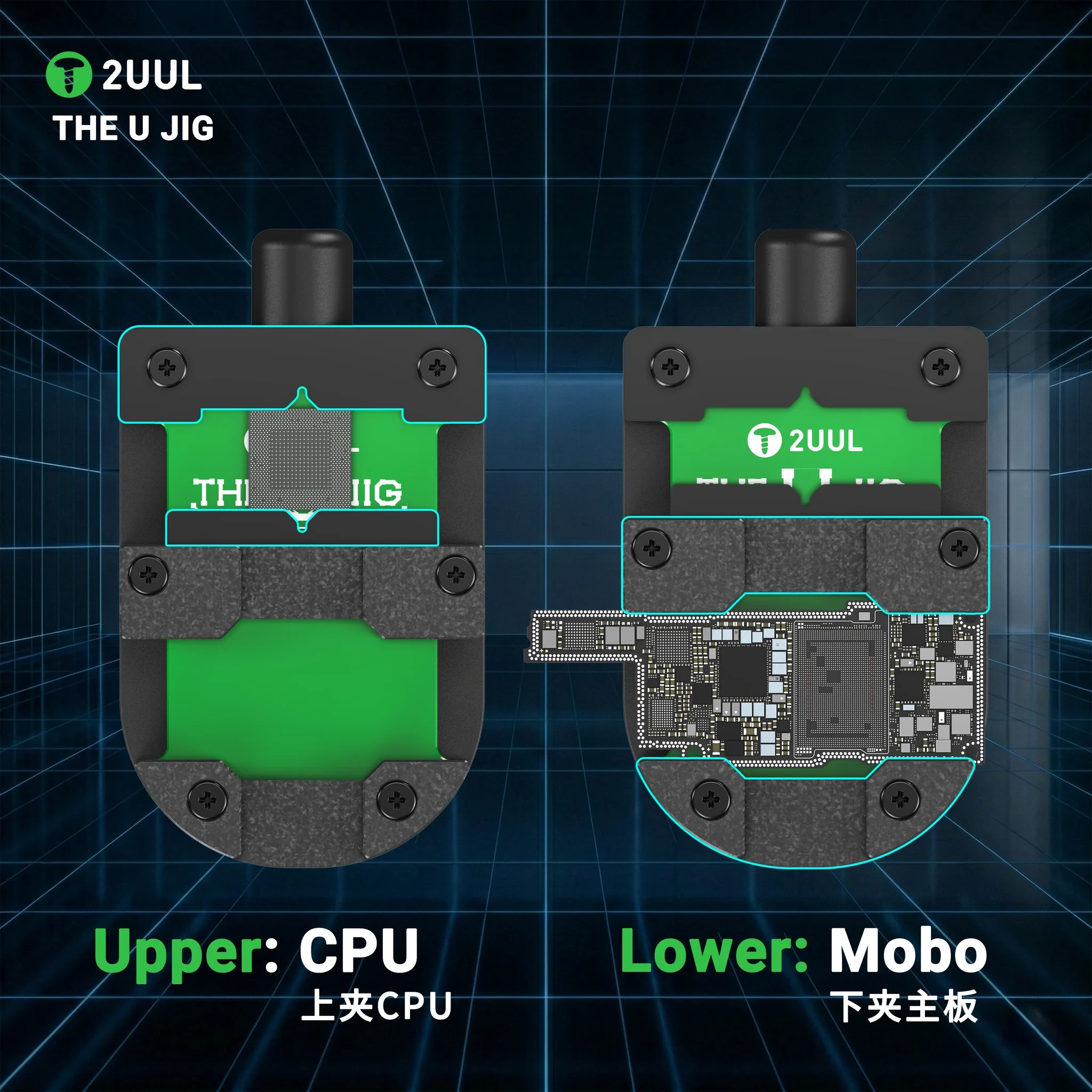

4. Universal Multi-Component Support: Precision-milled gripping grooves accommodate smartphone motherboards, sandwich boards, and bare BGA chips (CPU, NAND, PMIC, Baseband).
5. Anti-Slip Workbench Stability: Balanced, weighted metal base prevents the fixture from sliding across silicone repair mats or glass microscope stages during scraping and cleaning.
6. Fast One-Handed Operation: Smooth spring slide mechanism allows technicians to insert, adjust, and release motherboards or chips within seconds.
7. Durable Heavy-Duty Metal Body: Industrial metal construction ensures long-term wear resistance and structural integrity across high-volume repair operations.

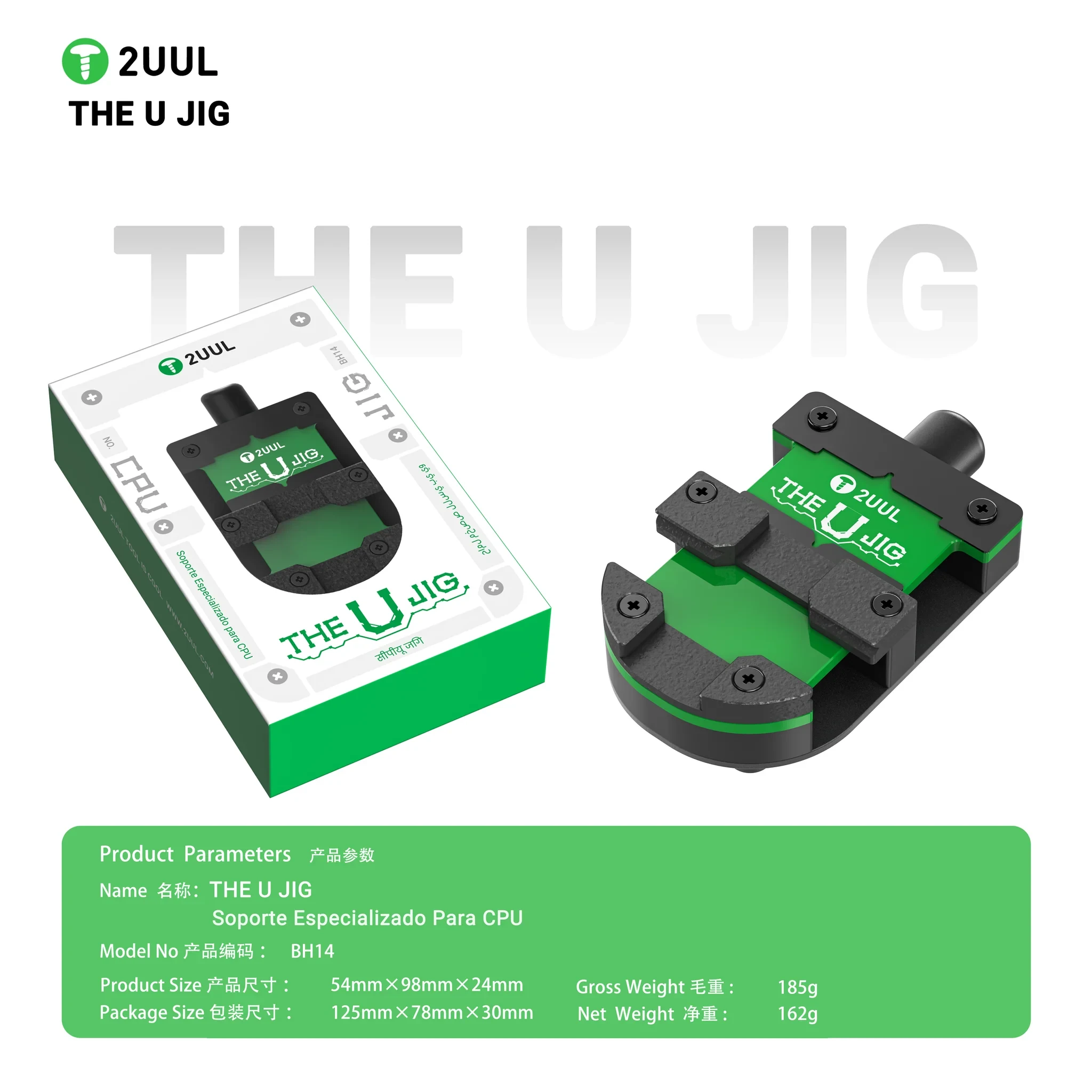

Specifications

1. Brand: 2UUL
2. Series: U JIG Series
3. Model: BH14
4. Product Name: BH14 THE U JIG CPU IC Soldering Fixture
5. Product Type: Motherboard & BGA IC Micro-Soldering Holding Fixture
6. Clamping Mechanism: High-Tension Heavy-Duty Internal Spring Slide
7. Jaw Material: High-Temperature Resistant Synthetic Stone / Ceramic Composite
8. Base Material: Precision Machined Heavy-Duty Alloy
9. Thermal Endurance: Direct Hot-Air Soldering Tolerant
10. Finish / Color: Signature 2UUL Green & Anodized Metal Styling
11. Compatibility: Apple iPhone Motherboards (Single & Double-Layered), Android Logic Boards (Samsung, Xiaomi, Vivo, Oppo, OnePlus), Smartphone CPUs, NAND Flash, Baseband ICs, and Small SMDs
12. Application Range: Motherboard Micro-Soldering, CPU Reballing & Pad Cleaning, Glue Removal, Solder Wick Dragging, BGA Rework Under Microscope

Package Includes

1. 1 × 2UUL BH14 THE U JIG CPU IC Soldering Fixture

Important Notice & Terms

Important Advisory: Please ensure full technical compatibility and model verification before confirming your order. Products listed are sold under a strict No Return, No Exchange, and No Refund policy. Limited technical support is offered where feasible and cannot be guaranteed for every application. Fixtools is not liable for incorrect ordering or damage caused by improper usage; purchasing decisions rest entirely with the customer.Key Features

1. Professional U-shaped CPU and motherboard soldering fixture
2. High-temperature resistant construction for soldering applications
3. Heavy-duty built-in spring for strong and secure clamping
4. Prevents motherboard movement during repair and rework
5. Ideal for CPU, IC, and PCB microsoldering
6. Suitable for motherboard cleaning, reballing, and chip replacement
7. Precision clamping for accurate repair work
8. Durable metal body for long-lasting professional use
9. Compact and lightweight design for easy handling
10. Perfect for mobile repairing, laptop repairing, and PCB repair laboratories
