The 2UUL FD32 C115-I Precision Soldering Iron Tip is an ultra-fine cartridge heating bit engineered specifically for C115-compatible micro-soldering stations, nano-rework handpieces, and high-density electronics servicing. Modern mobile phone logic boards pack tightly spaced 01005 passives, microscopic vias, and delicate flex connectors where standard soldering tips simply cannot reach without bridging pins or melting adjacent plastic housings. The FD32 C115-I solves this challenge with an ultra-fine straight conical needle (I-type) profile, giving technicians pinpoint access to isolated solder points under high-magnification stereomicroscopes.

Constructed around a high-purity oxygen-free copper alloy core and protected by a durable multi-layer anti-oxidation electroplated barrier, the FD32 delivers fast thermal ramp-up and stable temperature recovery in approximately 2 seconds. Its precision needle point allows controlled tinning on 0.01mm flying jumper wires, rebuilding severed BGA solder pads, and soldering individual micro-resistors or capacitors without transferring excess heat to neighboring ground planes. By maintaining consistent thermal feedback right at the microscopic contact point, the 2UUL FD32 C115-I is an essential daily consumable for mobile repair workshops, laptop board-level specialists, and micro-soldering laboratories.

Key Features

1. Integrated Heating Core Architecture: Combines heating element and temperature thermocouple in a single cartridge for direct thermal transfer and minimal heat loss.
2. Rapid 2-Second Heat-Up: Reaches stable working temperatures within approximately 2 seconds, delivering quick thermal recovery between micro-soldering joints.
3. Ultra-Fine Straight Needle (I-Type) Tip: Pinpoint conical profile reaches tight board cavities, microscopic test points, and dense SMD arrays with ease.
4. Multi-Layer Anti-Oxidation Coating: Electroplated nickel-chromium finish resists iron corrosion, tip pitting, and rapid tin burnout during continuous bench work.
5. Universal C115 & T115 Compatibility: Seamless push-fit installation into C115-series soldering handles, nano-stations, and precision rework pencil grips.
6. Enhanced Micro-Soldering Precision: Ultra-short tip-to-grip distance minimizes hand shake, ensuring steady control under high-power microscope optics.
7. Ideal for Micro-Jumping & Pad Rebuilding: Concentrates heat cleanly onto isolated pads, perfect for tacking 0.01mm jumper wires and repairing dropped vias.

Specifications

1. Brand: 2UUL
2. Series: FD30 Precision Tip Series
3. Model: FD32

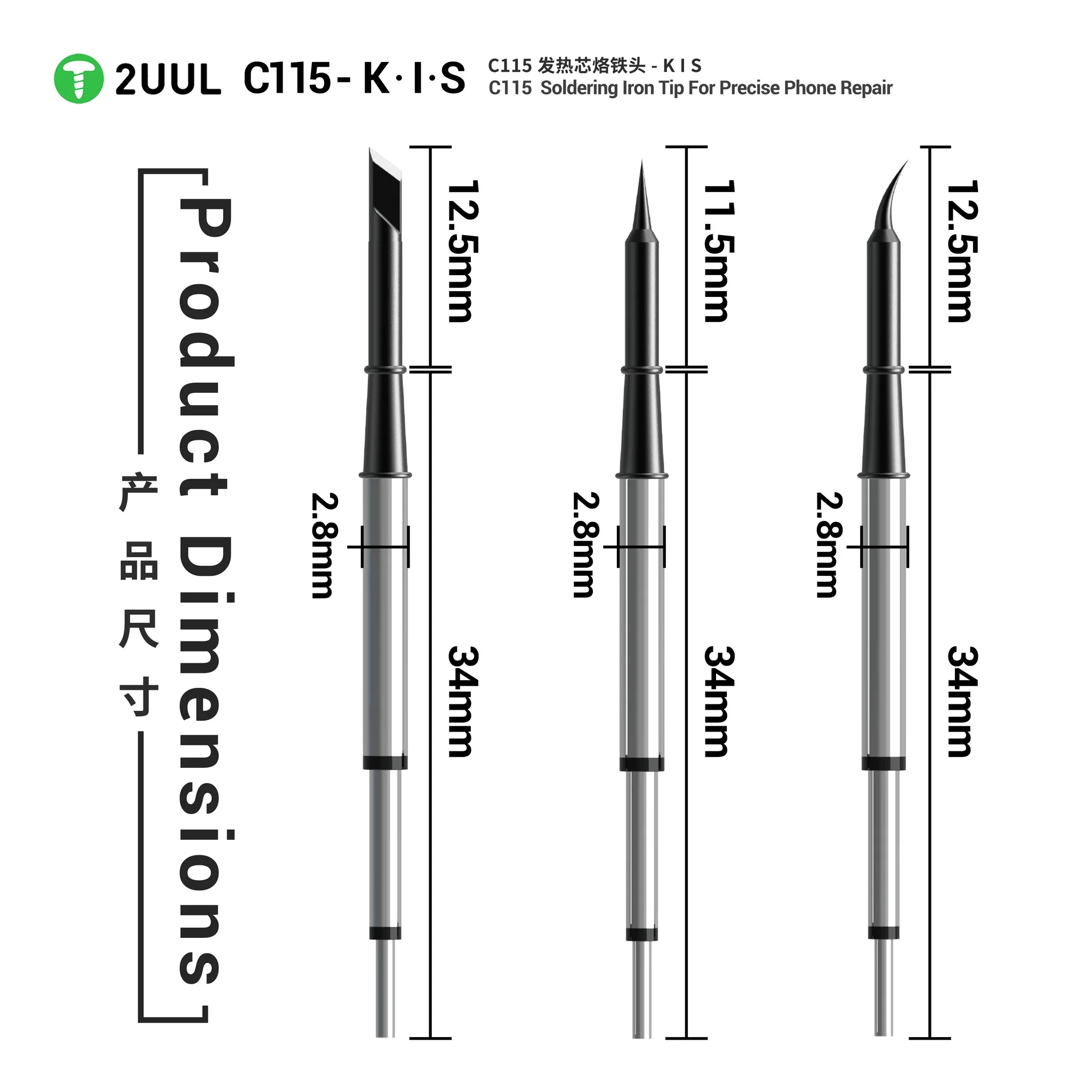

4. Tip Profile: C115-I (Straight Needle / Conical Pinpoint Profile)
5. Product Type: Integrated Cartridge Soldering Iron Tip
6. Compatible Stations & Handles: C115 / T115 Nano-Soldering Stations and Precision Grips
7. Thermal Response Time: Approx. 2 Seconds to Operating Temperature
8. Core Material: High-Purity Oxygen-Free Copper Alloy
9. Surface Plating: Multi-Layer Anti-Oxidation & Anti-Corrosion Plating
10. Application Range: Mobile Motherboard Micro-Soldering, 0.01mm Jumper Wire Soldering, Severed Via Pad Restoration, 01005 / 0201 SMD Component Placement, In-Circuit Test Point Tinning

Package Includes

1. 1 × 2UUL FD32 C115-I Precision Soldering Iron Tip Cartridge

Important Notice & Terms

Important Advisory: Please ensure full technical compatibility and model verification before confirming your order. Products listed are sold under a strict No Return, No Exchange, and No Refund policy. Limited technical support is offered where feasible and cannot be guaranteed for every application. Fixtools is not liable for incorrect ordering or damage caused by improper usage; purchasing decisions rest entirely with the customer.
