The 2UUL PH11 Hot-Block PCB Preheater Station is a professional-grade benchtop thermal platform engineered specifically for mobile phone double-layer motherboard delamination, sandwich PCB rebonding, BGA chip degumming, and precision micro-soldering rework. Desoldering layered logic boards or extracting underfilled CPUs solely using localized hot-air gun nozzles concentrates extreme thermal stress onto a small area. This localized heating frequently results in blistered PCBs, ripped internal circuit vias, warped grounding planes, and thermal destruction of surrounding SMDs. The PH11 eliminates these hazards by delivering uniform, high-efficiency base preheating across an expansive 240W high-power thermal plate, elevating the entire board to a safe baseline temperature.

Equipped with an intuitive digital display and precise PID temperature management ranging from 40°C to 245°C, the PH11 allows technicians to tailor thermal profiles for varied bench procedures—from low-temperature adhesive softening and epoxy underfill removal to high-temperature middle-frame solder reflow. The station integrates multi-angle adjustable clamping sliding brackets that firmly anchor irregular smartphone logic boards, mid-frames, and bare semiconductor chips without wobble. Built with an insulated, heat-resistant outer chassis and rapid thermal distribution plate, the 2UUL PH11 Hot-Block is an indispensable workstation asset for mobile repair service centers, motherboard diagnostic laboratories, and micro-soldering specialists.

Key Features

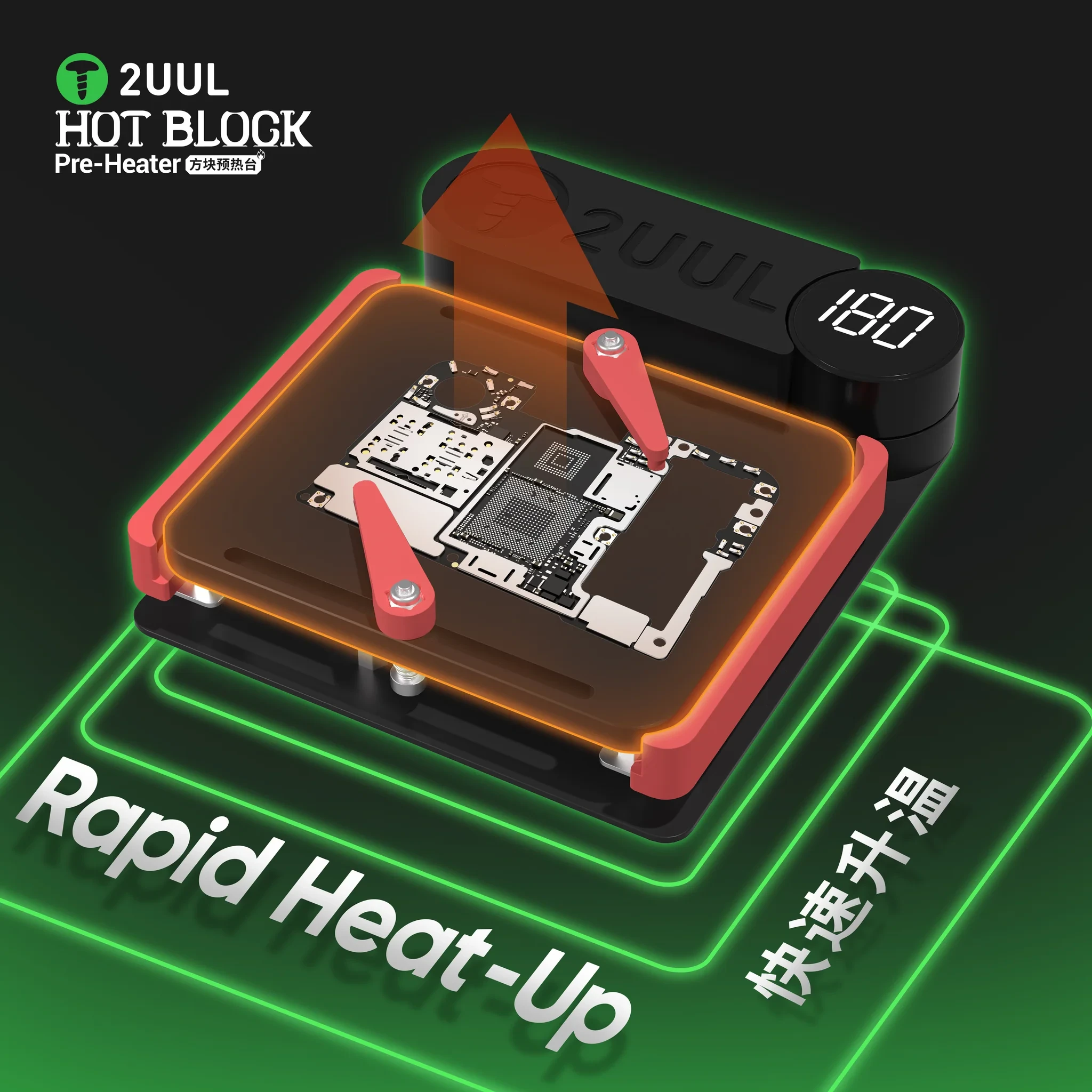

1. High-Power 240W Rapid Heating: High-performance internal heating element reaches target operating temperatures within seconds, distributing thermal energy evenly to avoid thermal shock.

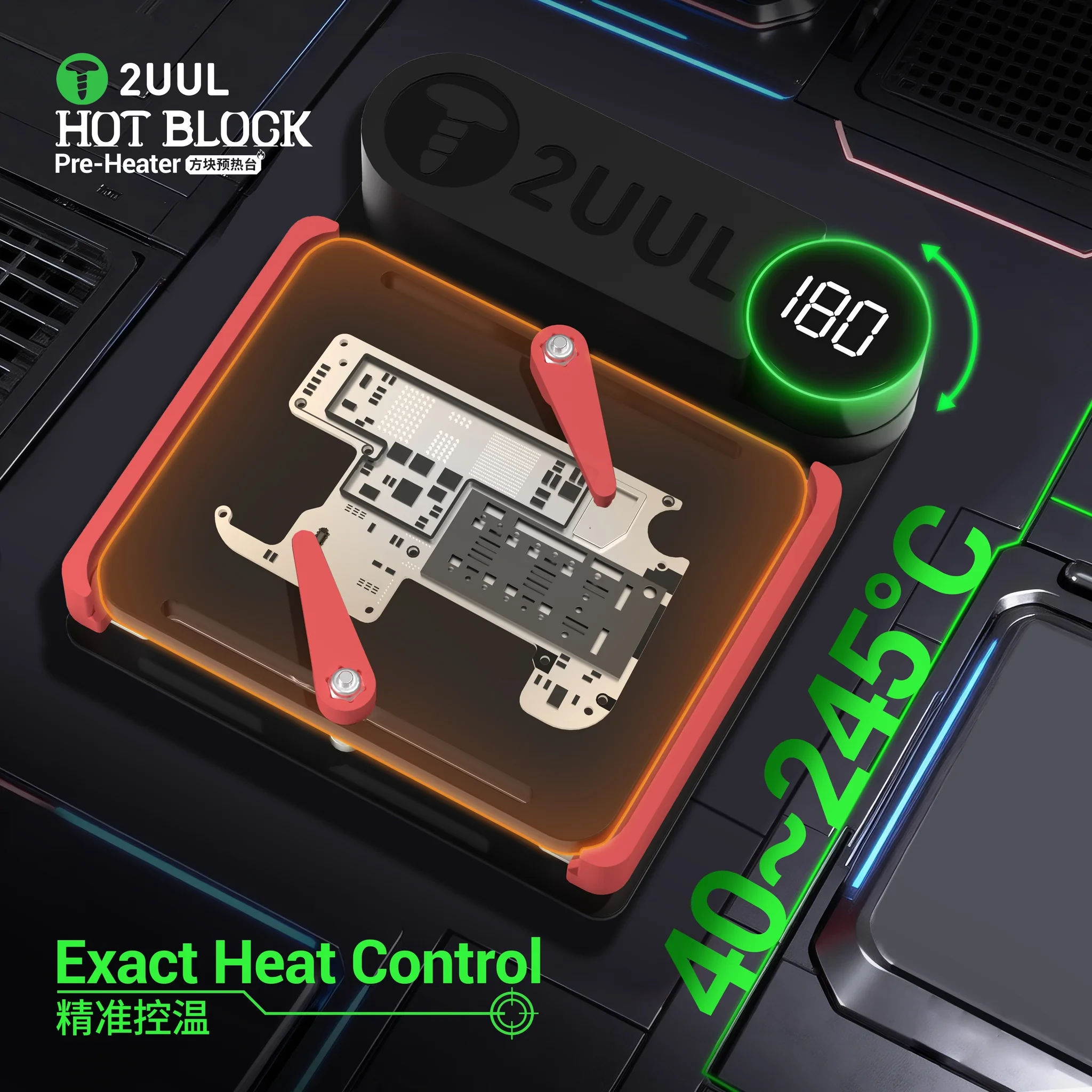

2. Wide 40°C to 245°C Digital Temperature Range: Precise digital regulation covers gentle adhesive/glue softening, underfill removal, and high-heat sandwich PCB desoldering and rebonding.
3. Prevents Board Blistering & Delamination: Elevates the board to a uniform preheat threshold, reducing the hot-air dwell time needed on the top side and preventing warped PCB layers.

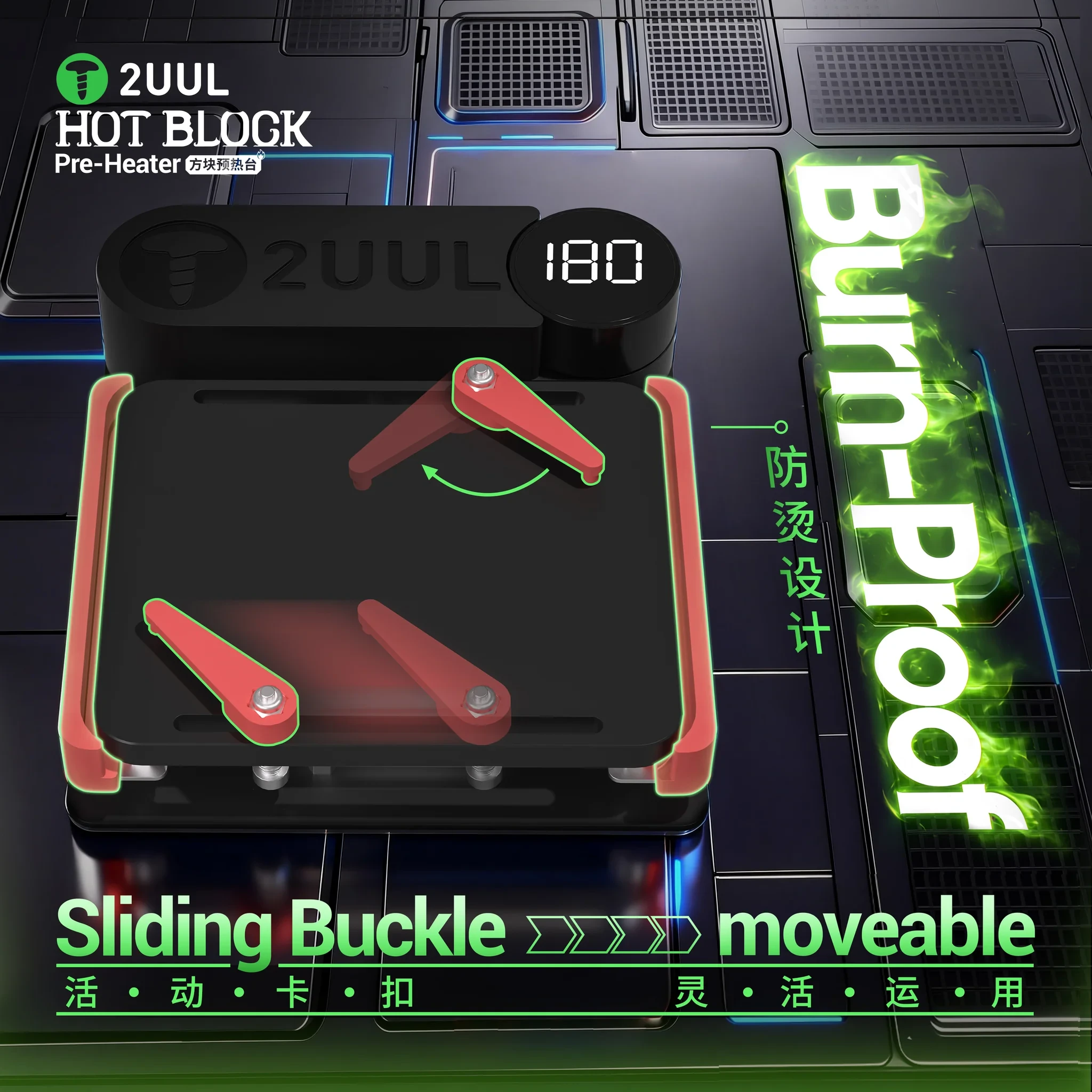

4. Adjustable PCB Clamping Brackets: Precision sliding clips adjust freely to accommodate various motherboard sizes and irregular smartphone contours.
5. Dual Layer Separation & Rebonding: Engineered specifically for tiered iPhone motherboards (iPhone X through 15 series) and sandwich Android logic boards.
6. Underfill & Epoxy Degumming: Softens tough black and clear CPU/NAND underfill adhesives safely without lifting fragile motherboard solder pads.
7. Compact & Stable Bench Footprint: Space-saving design with anti-slip feet provides exceptional stability directly beneath stereomicroscopes.

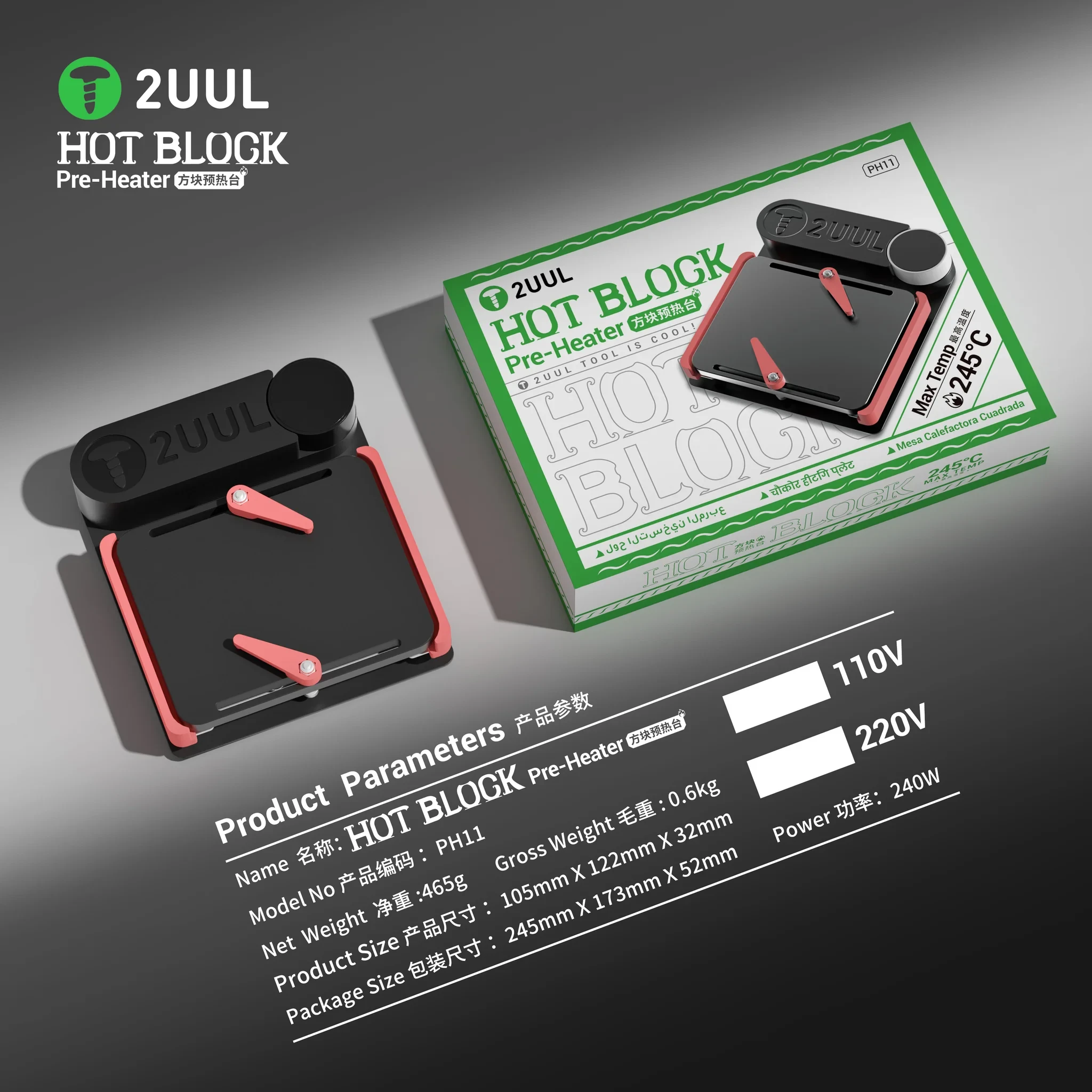

Specifications

1. Brand: 2UUL
2. Series: Hot-Block Series
3. Model: PH11

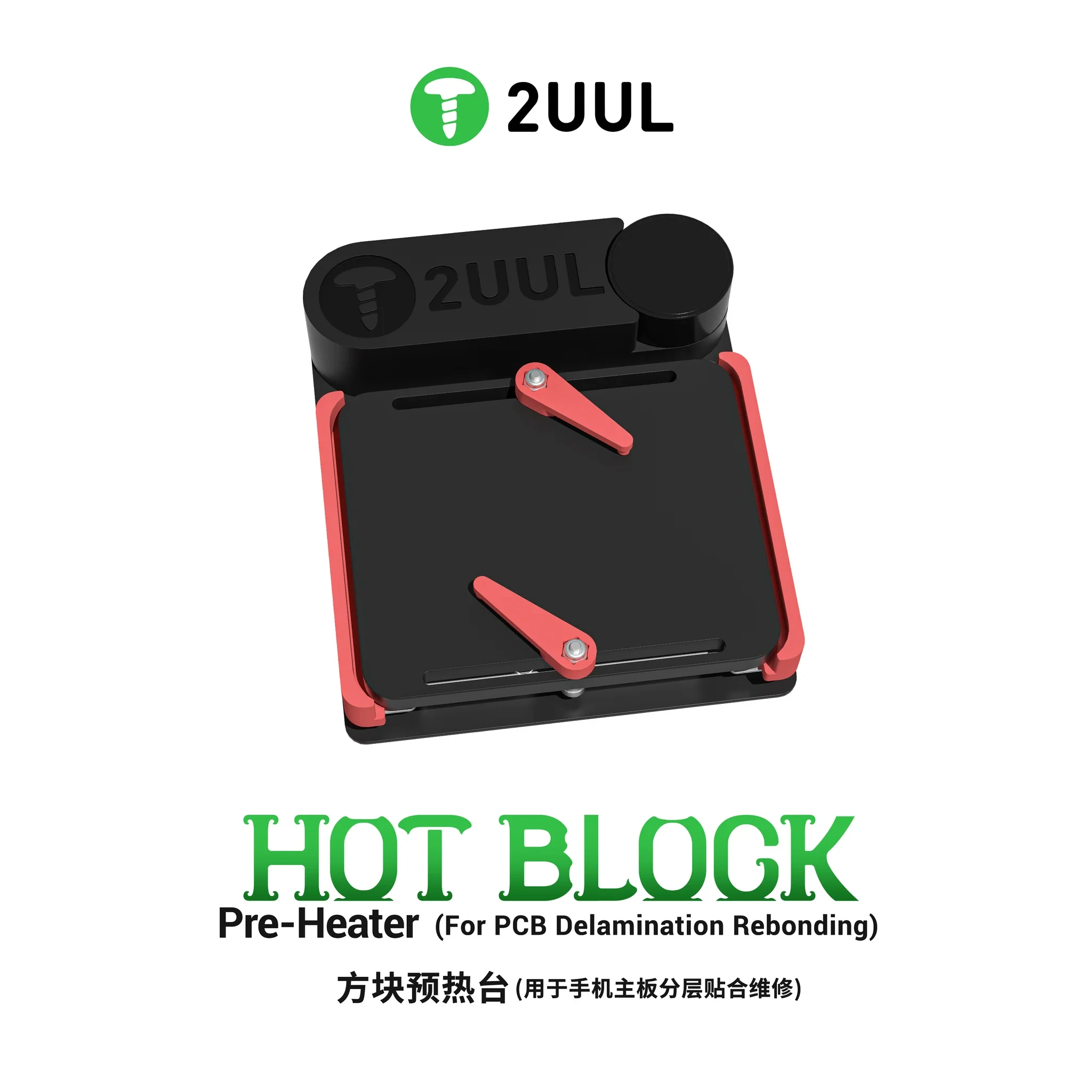

4. Product Name: PH11 Hot-Block PCB Preheater Station
5. Product Type: Digital PCB Preheating & Layer Separation Platform
6. Power Output: 240 W High-Efficiency Heating
7. Temperature Control Range: 40°C – 245°C Adjustable
8. Display Type: Real-Time Digital Temperature LED Readout
9. Heating Surface: High Thermal Conductivity Uniform Heat-Spreading Alloy
10. Clamping Mechanism: Adjustable Multi-Point Sliding PCB Retention Clips
11. Chassis Construction: Heat-Insulated, Fire-Resistant Engineered Alloy Body
12. Device Compatibility: Apple iPhone Double-Decker Logic Boards (X / XS / 11 / 12 / 13 / 14 / 15 Series), Android Layered Motherboards, Smartphone CPUs, NAND Flash, and Baseband ICs

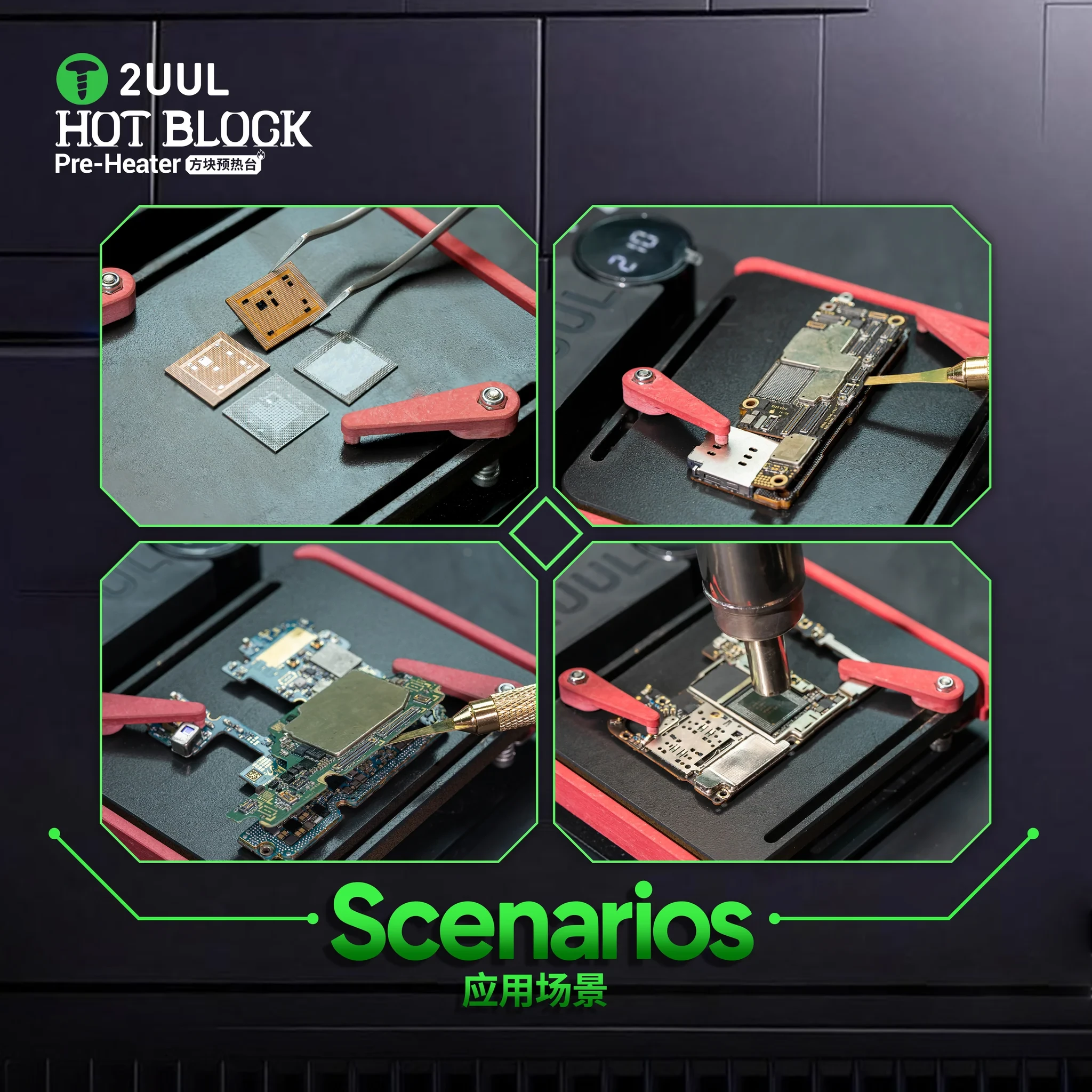

13. Application Range: Motherboard Layer Splitting & Rebonding, CPU/NAND Glue Degumming, Solder Pad Leveling, BGA Reballing Thermal Assist, Mobile Hardware Repair

Package Includes

1. 1 × 2UUL PH11 Hot-Block Preheater Platform Main Unit
2. 1 × Set of Adjustable PCB Clamping Brackets & Thumb Screws
3. 1 × Power Cable
