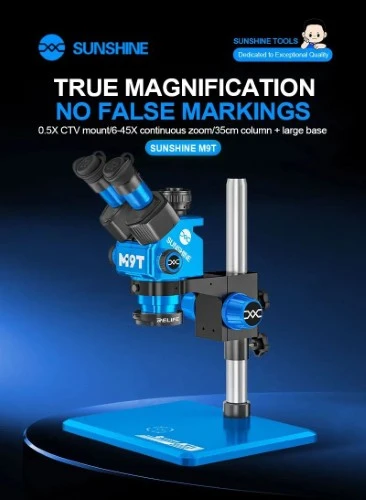

The SUNSHINE M9T Trinocular Stereo Microscope is a professional-grade optical inspection and rework system engineered specifically for mobile phone motherboard servicing, micro-soldering, PCB trace repair, and chip-level BGA/IC diagnostics. Powered by a precision 6X–45X continuous optical zoom mechanism with a 7.5:1 zoom ratio, it delivers crisp, high-definition optical clarity with true 3D spatial depth perception.

Designed for modern repair benches, the M9T features a dedicated trinocular head with an integrated 0.5X CTV adapter interface, enabling simultaneous dual-eyepiece viewing and live HD video output to an external monitor via HDMI/USB microscope cameras. The heavy-duty B11 metal base and 35cm tall vertical column provide substantial stability, vibration damping, and an ample ~100mm working distance—ensuring generous physical clearance for hot air nozzles, soldering iron tips, and precision tweezers during board-level rework.

Key Features

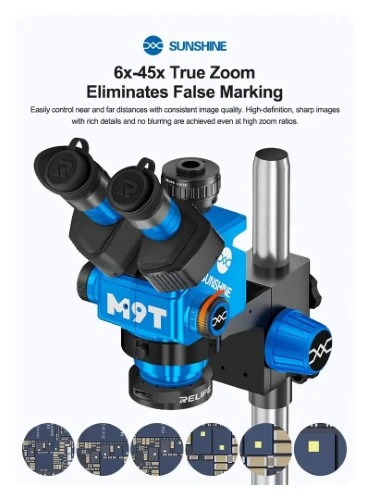

1. 6X–45X Continuous Optical Zoom: 7.5:1 zoom ratio provides smooth, seamless transition between wide-area board inspection and fine micro-soldering magnification.
2. Simultaneous Trinocular Optical Port: Direct 0.5X CTV mount allows live camera video output to a display monitor without obstructing binocular viewing.
3. Generous ~100mm Working Distance: Offers ample vertical and lateral clearance for soldering irons, hot air guns, and board fixtures.
4. Heavy-Duty B11 Workbench Base: Rugged metal base plate ensures exceptional structural stability and vibration-free optics during detailed work.

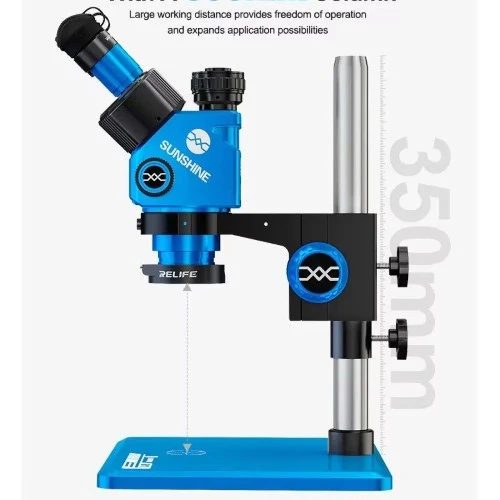

5. Tall 35cm Vertical Column: Accommodates flexible height adjustments and auxiliary objective lenses for expanded working clearance.
6. True 3D Stereo Depth: High-grade optical coated glass lenses deliver accurate stereoscopic depth perception and distortion-free imaging.

Specifications

1. Brand: SUNSHINE
2. Model: M9T (B11 Series)
3. Product Type: Trinocular Stereo Zoom Microscope
4. Magnification Range: 6X – 45X Continuous Zoom
5. Zoom Ratio: 7.5:1
6. Optical Head: Trinocular Head (Supports simultaneous eyepiece & camera viewing)
7. Camera Interface: 0.5X CTV Adapter Mount
8. Standard Working Distance: ~100 mm
9. Vertical Column Height: 35 cm (350 mm)
10. Base Type: Heavy-Duty Metal Workbench Base (B11)

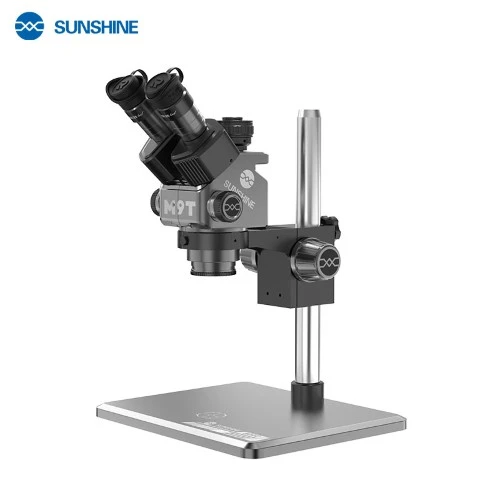

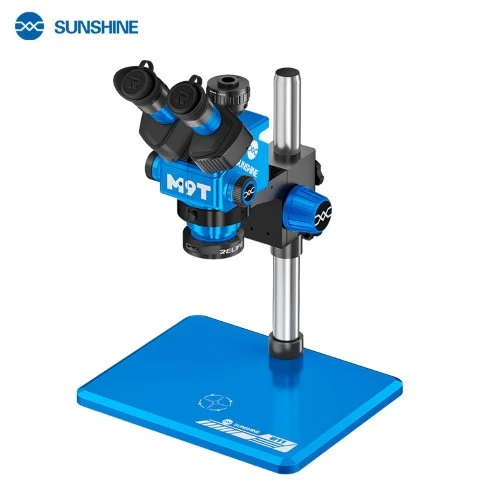

11. Available Color Finishes: Black / Silver / Blue
12. Application: Mobile Motherboard Micro-Soldering, BGA IC Reballing, PCB Trace Repair, Electronics Diagnostics & Quality Inspection

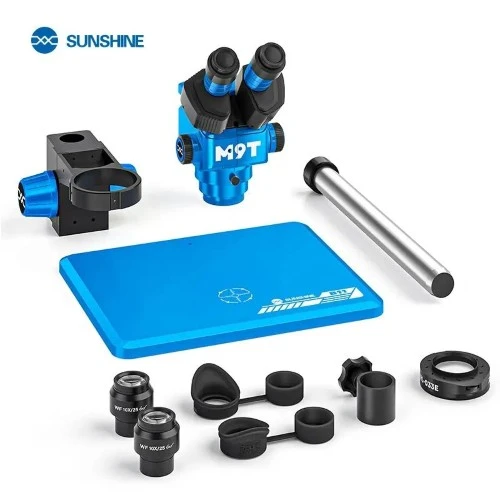

Package Includes

1. 1 × SUNSHINE M9T Trinocular Microscope Head
2. 1 × 0.5X CTV Camera Adapter Mount

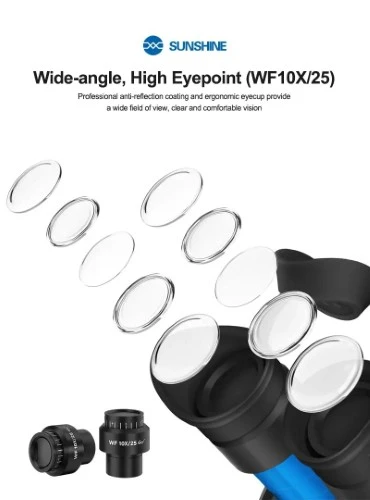

3. 1 × Pair of Eyepieces & Eye Guards
4. 1 × 35cm Vertical Stand Column & Focusing Bracket
5. 1 × Heavy-Duty Metal Workbench Base Plate (B11)

Important Notice & Terms

Important Advisory: Please ensure full technical compatibility and model verification before confirming your order. Products listed are sold under a strict No Return, No Exchange, and No Refund policy. Limited technical support is offered where feasible and cannot be guaranteed for every application. Fixtools is not liable for incorrect ordering or damage caused by improper usage; purchasing decisions rest entirely with the customer.
