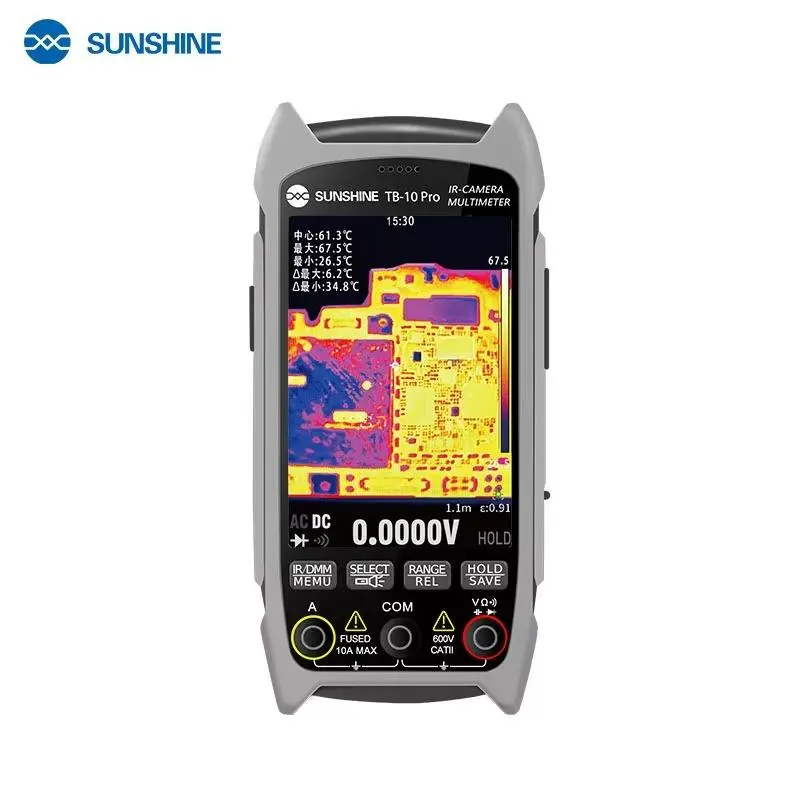

The Sunshine TB-10 Pro Handheld Infrared Thermal Imager + Multimeter is a portable 2-in-1 diagnostic instrument engineered specifically for mobile phone motherboard repair, PCB short-circuit troubleshooting, and precision electronics testing. Technicians traditionally have to toggle between a standalone thermal camera and a bench multimeter, which clutters workspace and slows down rapid fault isolation. The Sunshine TB-10 Pro solves this by integrating a 256×192 high-definition uncooled Vanadium Oxide (VOx) thermal sensor and an intelligent 19,999-count auto-ranging multimeter into a compact 198g handheld body.

Capable of detecting 49,152 measurement points simultaneously across a broad temperature span of -20°C to +550°C, the unit features a smooth sliding macro lens that reveals minute 1mm × 1mm details on BGA pads and tiny SMD components. On the electrical testing side, the unit measures DC voltage up to 1000V, AC voltage up to 750V, current up to 10A, resistance up to 99.99MΩ, and capacitance up to 199.99mF, alongside NCV non-contact AC sensing and LIVE wire identification. With 15 selectable thermal color palettes, BMP image storage on TF cards up to 64GB, and a removable 18650 lithium battery rechargeable via USB Type-C, the TB-10 Pro is an all-in-one diagnostic solution available at Fixtools.

Key Features

1. Thermal Imaging & Multimeter 2-in-1: Combines a 256×192 thermal camera and a 19,999-count digital multimeter in an ultra-portable 198g handheld chassis.
2. Simultaneous 49,152-Point Detection: Full-screen temperature visualization quickly pinpoints overheating ICs, shorted capacitors, and microscopic leakage points.
3. Sliding Macro Lens Mechanism: Smooth left-right sliding switch allows clear macro inspection of tiny 1mm × 1mm SMD components and micro-soldered jumper wires.
4. Wide -20°C to +550°C Thermal Span: High-sensitivity VOx sensor with adjustable emissivity (0.1–0.99) delivers accurate thermal readings with ±2°C / ±2% precision.
5. 15 Color Palette Options: Includes White Heat, Black Heat, Fusion 1/2, Rainbow, Iron Red 1/2, Ice Fire, Rain, Green Heat, and Red Heat for clear visual contrast.

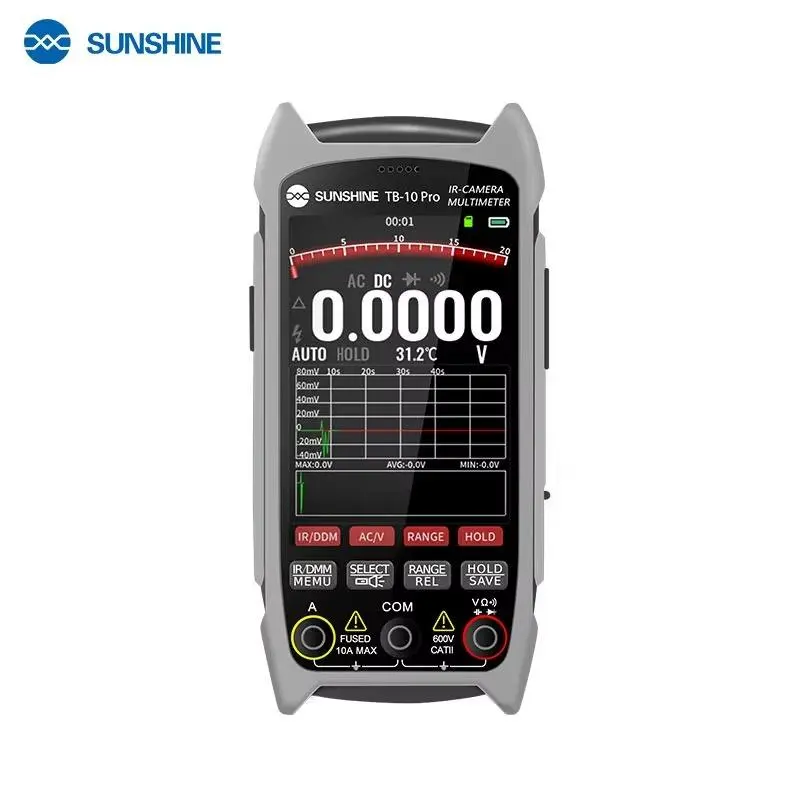

6. Comprehensive Multimeter Functions: Tests DC voltage (1000V), AC voltage (750V), current (10A), resistance (99.99MΩ), capacitance (199.99mF), diode (0V–3V), duty cycle, and continuity.

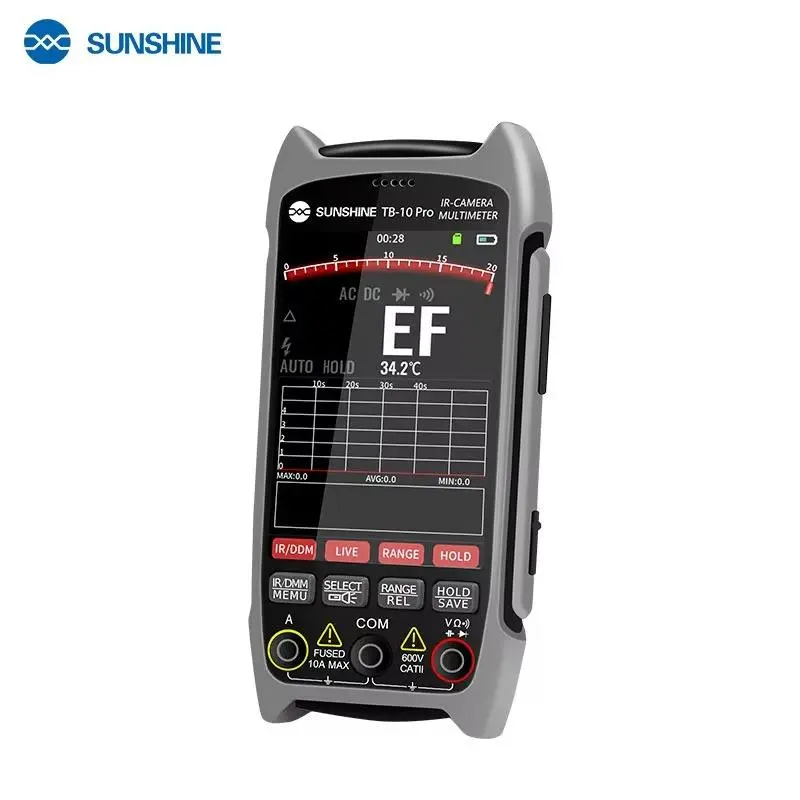

7. NCV Sensing & LIVE Line Check: Built-in non-contact AC voltage induction with audible beeps and dedicated single-probe live wire identification.
8. Removable 18650 Battery & Fast Type-C Reading: Powered by a user-replaceable 18650 lithium cell with Type-C fast charging and direct PC data reading of stored BMP thermal images.

Specifications

1. Brand: SUNSHINE
2. Model: TB-10 Pro
3. Product Name: Handheld Thermal Imager Multimeter
4. Product Type: 2-in-1 Handheld Thermal Camera & Digital Multimeter
5. Thermal Sensor Type: Uncooled Vanadium Oxide (VOx)
6. Module Output Pixels: 256 × 192 Pixels (49,152 Measurement Points)
7. Display Screen: 3.5-Inch Color Screen (320 × 480 Resolution)
8. Display Image Resolution: 427 × 320
9. Image Capture Frequency: 25 Hz
10. Field of View (FOV): 50.0° (H) × 37.2° (V)
11. Temperature Measurement Range: -20°C to +550°C
12. Measurement Accuracy: ±2°C or ±2%
13. Emissivity: 0.1 to 0.99 Adjustable (Default 0.95)
14. Color Palettes: 15 Modes (White Heat, Black Heat, Fusion 1/2, Rainbow, Iron Red 1/2, Dark Brown, Color 1/2, Ice Fire, Rain, Green Heat, Red Heat, Dark Blue)
15. Macro Feature: Sliding Macro Lens (Inspects down to 1mm × 1mm components)
16. Multimeter Display Count: 19,999 Words (Updates approx. 3 times per second)
17. DC Maximum Input Voltage: 1000 V
18. AC Maximum Input Voltage: 750 V
19. Maximum Current Measurement: 10 A
20. Maximum Resistance: 99.99 MΩ
21. Maximum Capacitance: 199.99 mF
22. Diode Testing Range: 0 V – 3 V
23. Duty Cycle Range: 0.1% – 99.9%
24. Continuity Detection: Up to 199.99 Ω
25. Live / NCV Detection: LIVE Wire Distinction & Audible Non-Contact Voltage Sensing
26. Image Storage Format: BMP File
27. External Storage: TF Card Slot (Supports up to 64GB, TF card not included)
28. Power Supply: Removable 18650 Rechargeable Lithium Battery
29. Interface: USB Type-C (Charging & Data Reproduction)
30. Operating Environment: 0°C to 50°C (<85% RH Non-condensing)

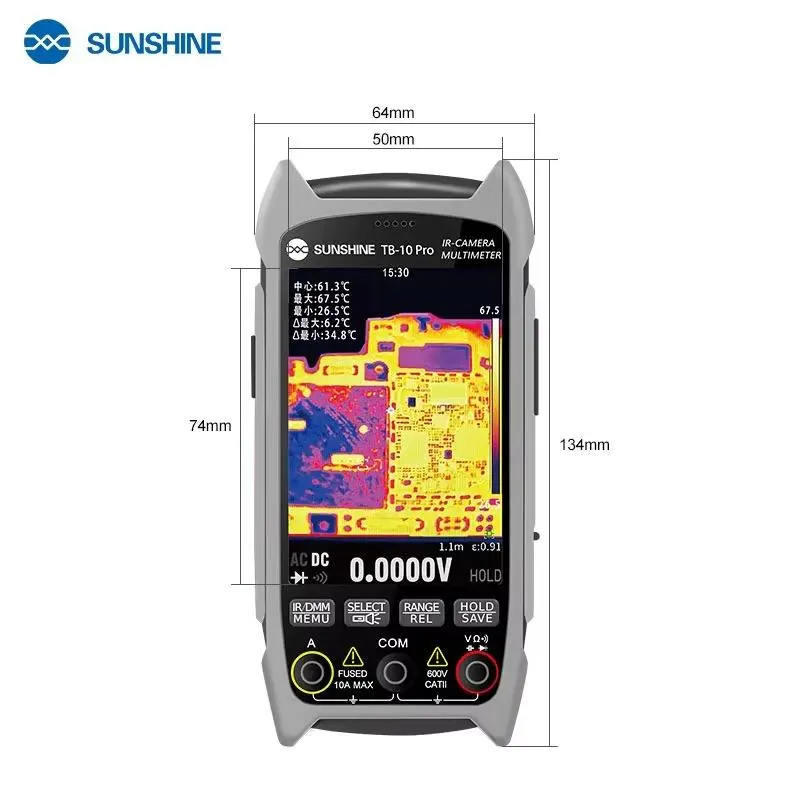

31. Product Dimensions: 134 mm × 64 mm × 28 mm
32. Product Net Weight: 198 g
33. Application Range: Motherboard Short-Circuit Detection, VDD/VCC Current Leakage Localization, Component Overheat Triage, Precision Voltage & Resistance Diagnostics

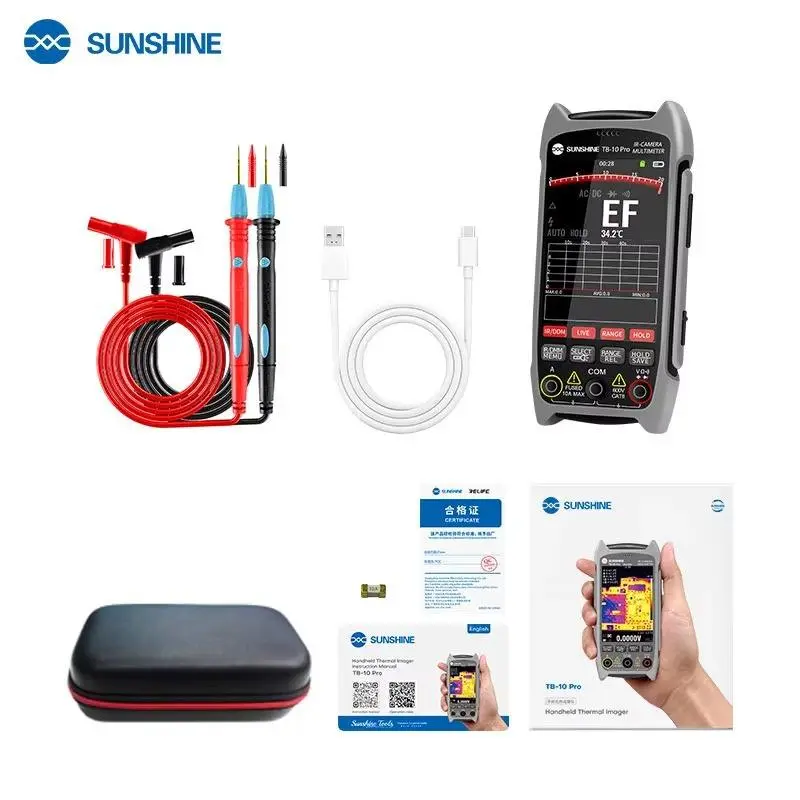

Package Includes

1. 1 × Sunshine TB-10 Pro Handheld Thermal Imager Multimeter (Without TF Card)
2. 1 × Pair of Multimeter Test Leads
3. 1 × USB Type-C Cable
4. 1 × Spare Replacement Fuse
