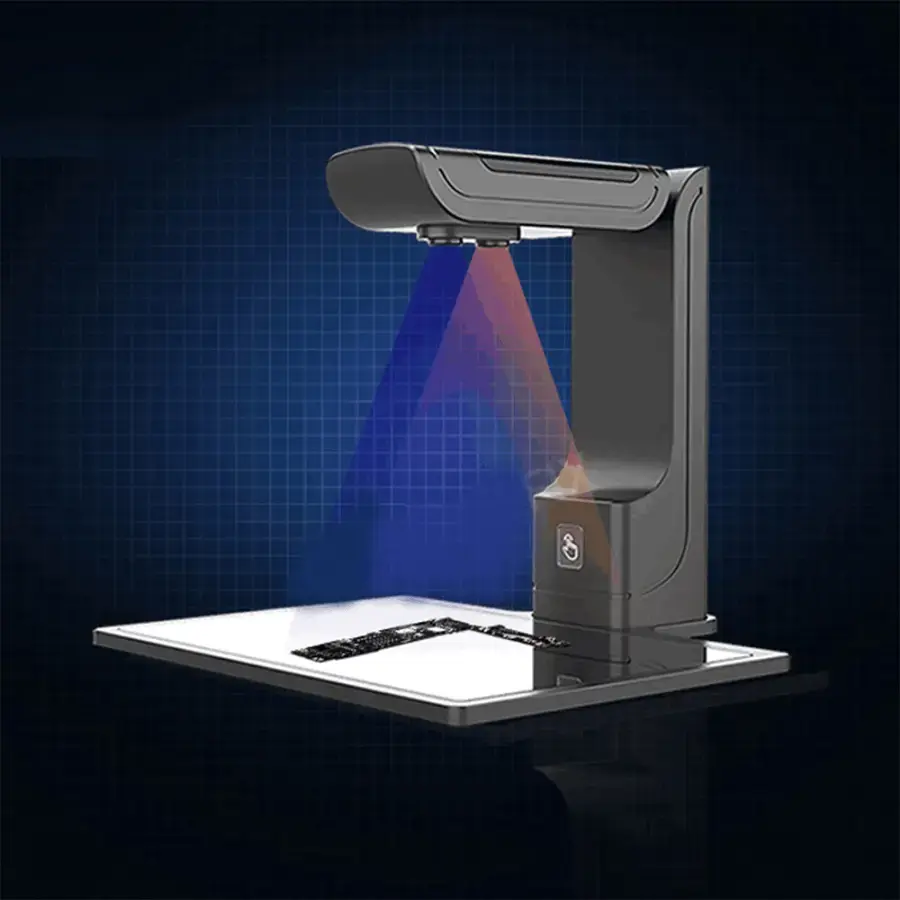

The Sunshine TB-08 Pro Dual-Light Direct Connection Infrared Thermal Camera is a benchtop optical diagnostic workstation engineered for mobile phone motherboard troubleshooting, micro-electronics leak detection, and short-circuit localization. Identifying tiny thermal anomalies using rosin atomizers or freeze spray is messy, temporary, and often inaccurate when diagnosing low-milliamp parasitic battery drains. The Sunshine TB-08 Pro addresses this by combining an uncooled Vanadium Oxide (VOx) 256×192 thermal sensor with an 8MP 4K visible-light camera, enabling dual-light image fusion to inspect tiny SMD passives and integrated circuits directly.

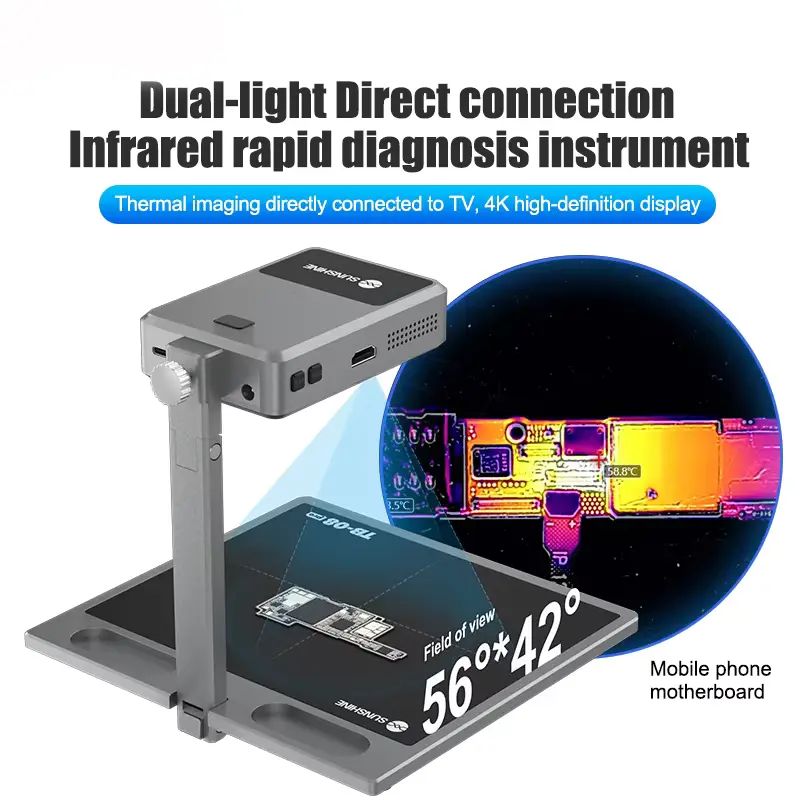

Equipped with a standalone direct HDMI video interface, the TB-08 Pro connects directly to external TV screens or workbench monitors in 4K resolution, operating independently without a connected host PC. It supports flexible multi-device connectivity via WiFi wireless streaming and USB Type-C, syncing with Android, iOS, and Windows devices. Featuring a space-saving double-folding bracket, a wide 56°×42° field of view, one-click rapid leakage checks, and multiple view modes (Visible, Thermal, Dual-Light Fusion, Quick Check), the Sunshine TB-08 Pro provides quick, non-destructive PCB fault localization available at Fixtools.

Key Features

1. Dual-Light Fusion Diagnostics: Combines 256×192 infrared thermal imaging with an 8MP 4K visible-light camera to pinpoint the exact physical component causing current leakage.
2. Direct HDMI 4K Monitor Output: Connects directly to external HDMI display screens and TVs without needing a host computer, freeing up workbench space.

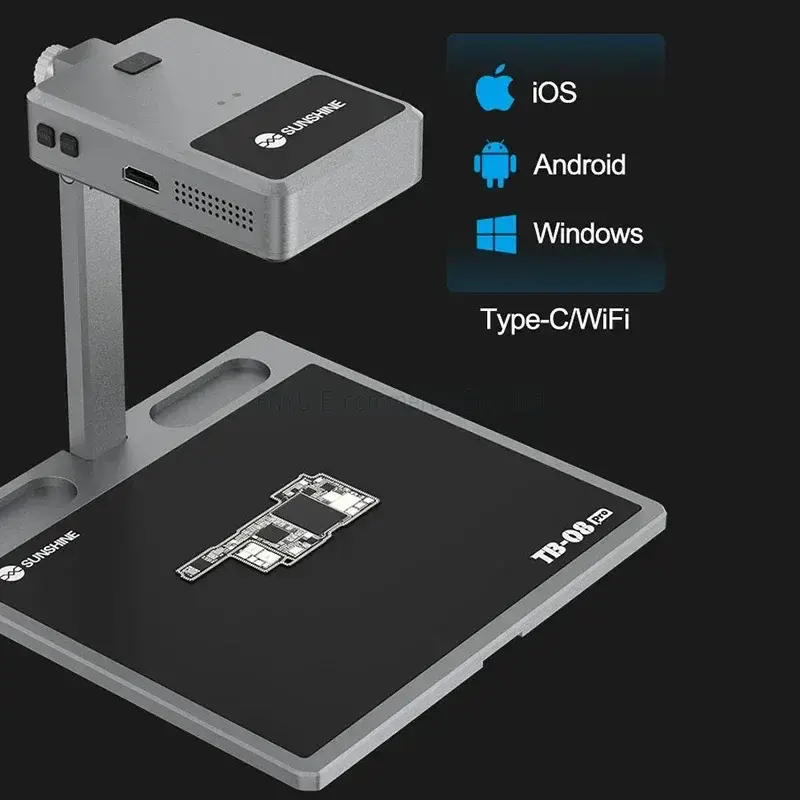

3. Wireless WiFi & Type-C Connectivity: Plug-and-play communication compatible with iOS, Android smartphones, tablets, and Windows PC software.
4. One-Click Quick Leakage Check: High-sensitivity thermal algorithm isolates subtle temperature variations caused by parasitic standby leakage currents.
5. Multiple Display Modes: Offers selectable viewing modes including Pure Thermal, Pure Visible Light, Dual-Light Fusion Overlay, and Quick-Check mode.

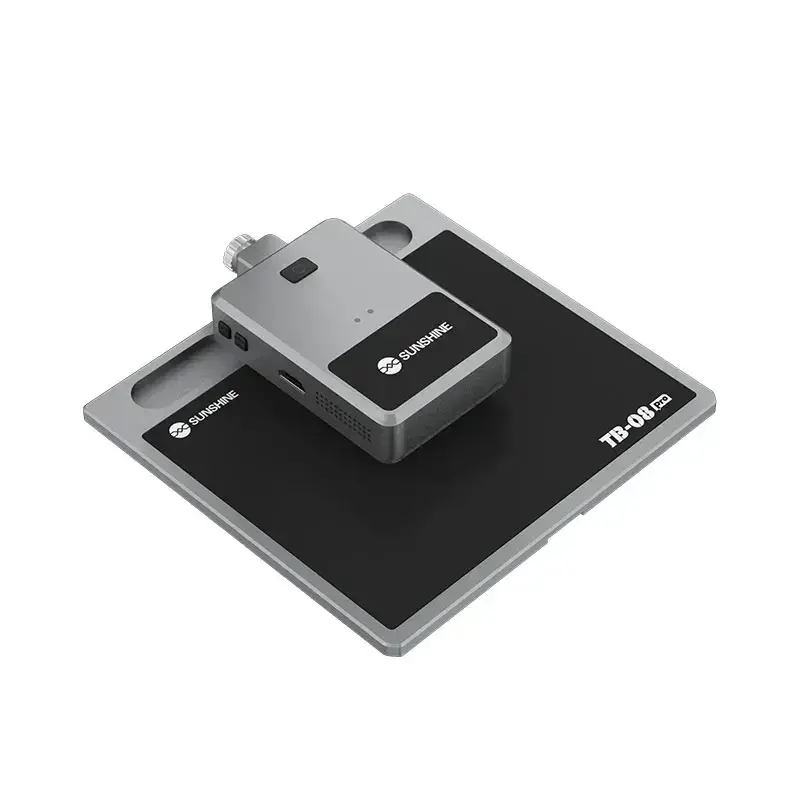

6. Space-Saving Double-Folding Arm: Articulated double-folding metal bracket collapses completely for compact workbench storage and easy bench repositioning.
7. Wide 56°×42° Field of View: Generates broad optical coverage to inspect entire smartphone motherboards, tablet logic boards, and laptop circuits without constant repositioning.
8. High-Clarity VOx Detector: Industrial-grade uncooled Vanadium Oxide detector delivers clear thermal imaging and high heat sensitivity.

Specifications

1. Brand: SUNSHINE
2. Model: TB-08 Pro
3. Product Name: TB-08 Pro Multifunctional Dual-Light Infrared Detector
4. Product Type: Dual-Light PCB Motherboard Diagnostic Thermal Camera
5. Thermal Detector Type: Uncooled Vanadium Oxide (VOx) Microbolometer
6. Thermal Resolution: 256 × 192 Pixels
7. Visible Light Resolution: 3840 × 2160 (4K / 8MP)
8. Spectral Range: 7.5 µm – 13.5 µm
9. Lens Field of View (FOV): 56° × 42°
10. Optimum Measurement Distance: 16.5 cm
11. Display Modes: Visible Light, Thermal Imaging, Dual-Light Fusion, Quick Check
12. Connection Interfaces: HDMI Direct Output, WiFi Wireless, USB Type-C (USB 2.0)
13. Power Input: DC 12V / 6W Power Consumption
14. Image Format: JPG
15. Operating Environment: 3°C to 45°C
16. Storage Temperature Range: -20°C to 60°C
17. Compatible Operating Systems: Android 6.0+, iOS 12.0+, Windows 7 and above

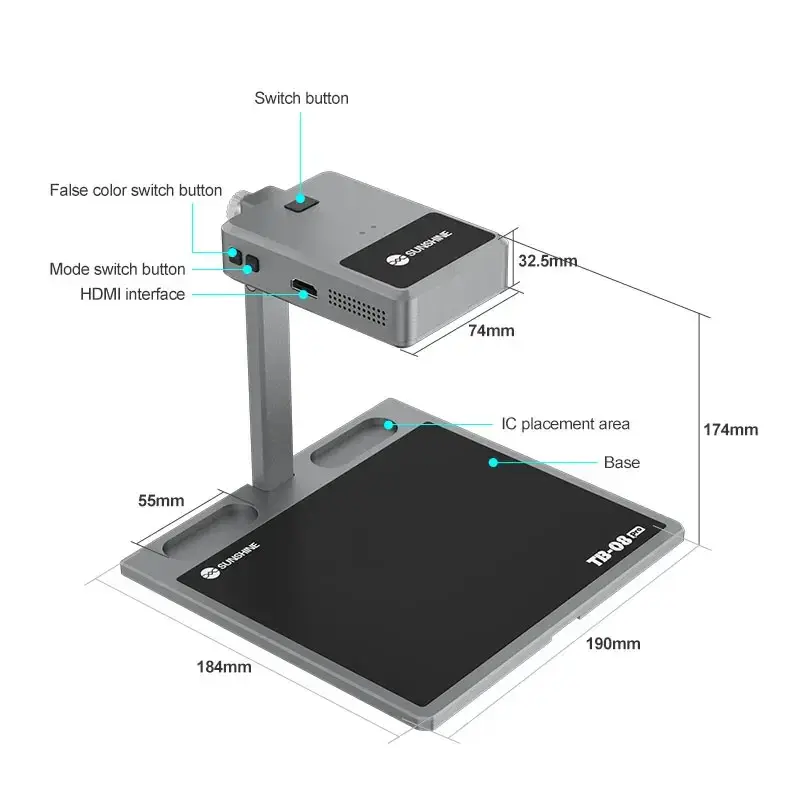

18. Product Dimensions: 190 mm × 184 mm × 174 mm
19. Net Weight: Approx. 946 g
20. Application Range: Smartphone Logic Board Short Detection, VDD/VCC Rail Leakage Analysis, Tablet & Laptop Motherboard Troubleshooting, BGA Chip Thermal Diagnostics

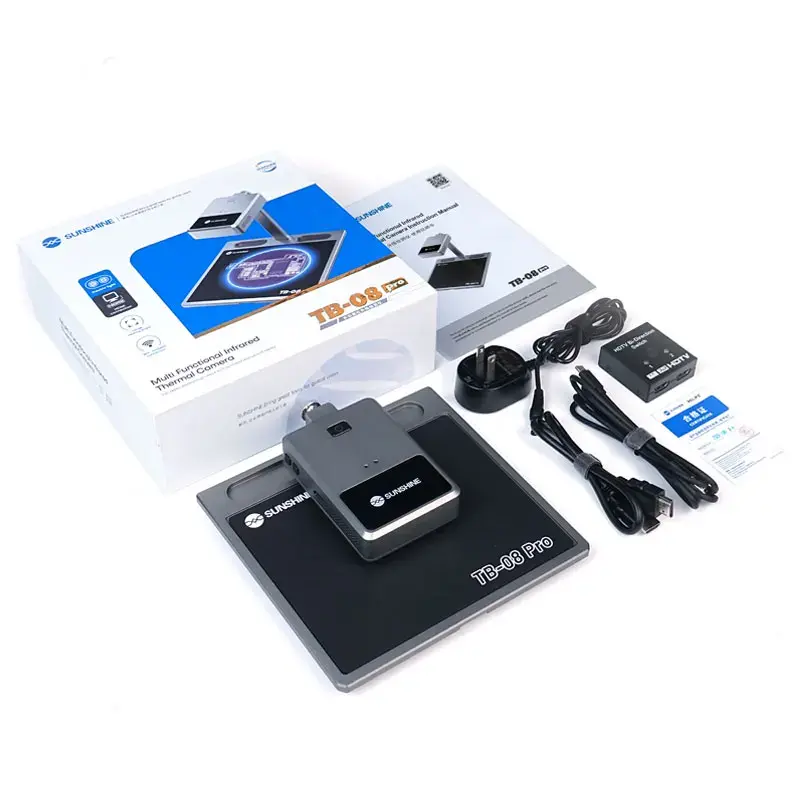

Package Includes

1. 1 × Sunshine TB-08 Pro Thermal Imaging Camera Unit
2. 1 × Double-Folding Metal Desktop Stand & Baseplate
3. 1 × DC 12V Power Adapter
4. 1 × HDMI Cable & HDMI Converter
5. 1 × USB Type-C Data Cable
6. 1 × Set of Mounting / Fixing Screws
