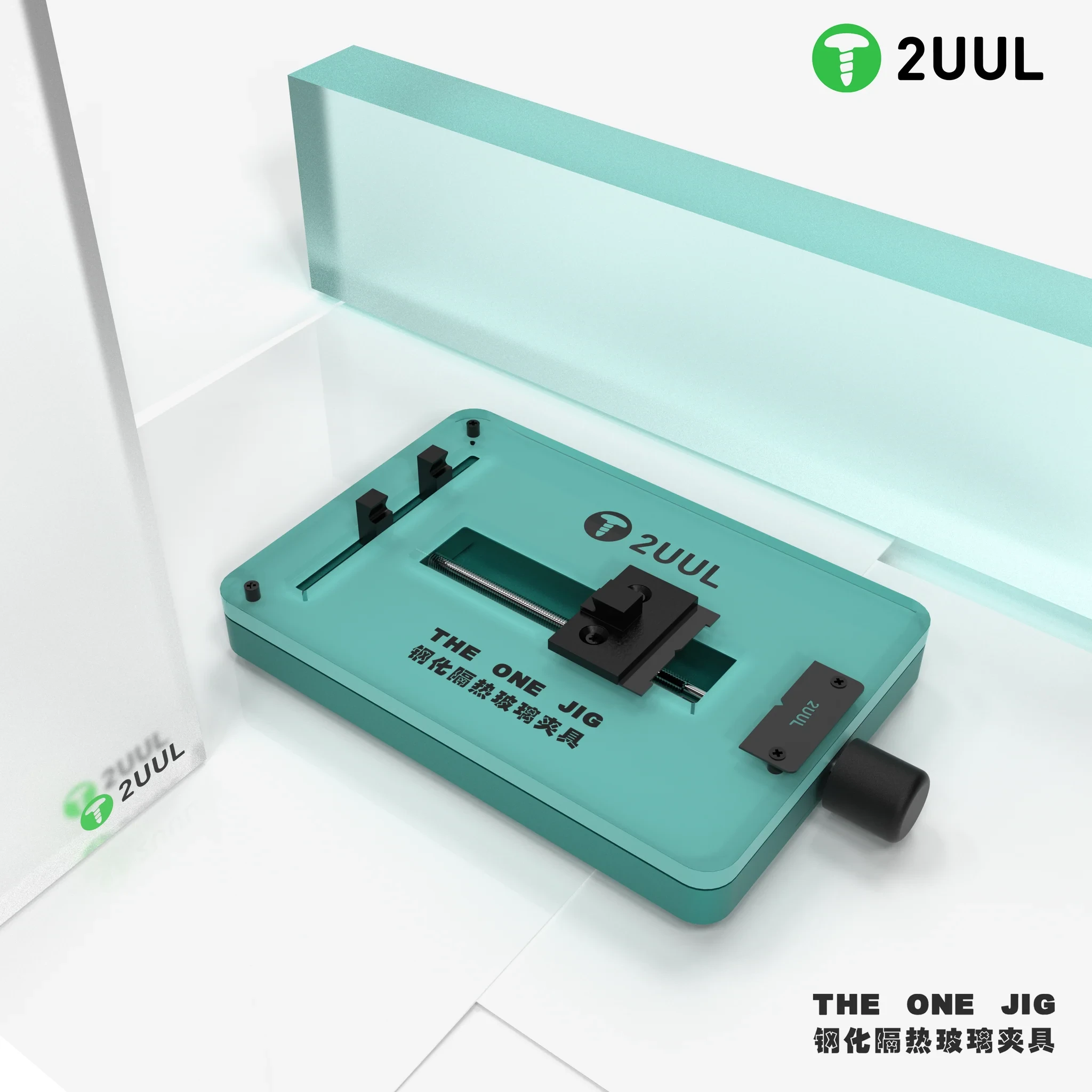

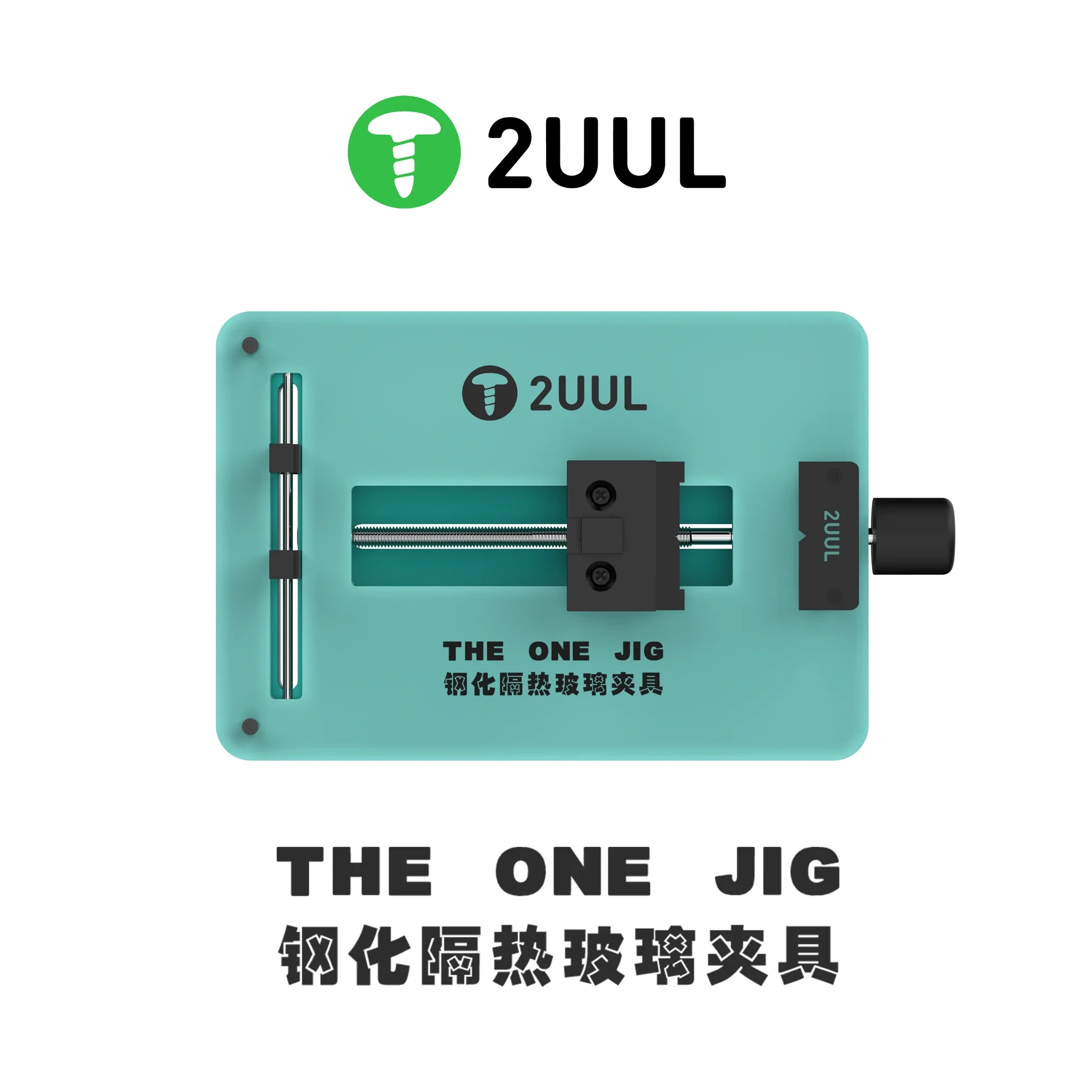

The 2UUL BH03 The One Jig is a professional-grade, high-temperature resistant motherboard fixture and IC maintenance clamp engineered specifically for mobile phone PCB repair, double-layer board servicing, and BGA chip glue removal. Built with heavy tempered insulated synthetic stone/glass and a robust alloy frame, it offers exceptional thermal insulation that prevents heat dissipation loss and shields delicate multi-layer logic boards from warping or blistering under high-heat rework.

Designed with a high-precision rotary screw locking shaft, the BH03 locks circuit boards, CPUs, NAND flash memory, and PMIC chips securely without rebound, slipping, or vibration. Its specialized anti-crush clamping step is contoured to support delicate IC beams, preventing fragile silicon chips from snapping during tough black underfill and epoxy scraping. Complete with multi-gear distance adjustment, bottom-mounted heat sink ventilation channels, and anti-skid silicone pads, The One Jig provides a rock-solid, non-slip platform for high-precision micro-soldering under the microscope.

Key Features

1. Rebound-Free Rotary Lock: Precision threaded screw shaft firmly clamps irregular smartphone motherboards and ICs without spring-back or accidental release.
2. Tempered Insulated Glass/Synthetic Stone Build: High-temperature resistance prevents heat loss, reduces thermal stress, and protects multi-layer PCBs from delamination.
3. Anti-Break IC Support Design: Specially engineered clamp jaws distribute scraping pressure evenly, preventing delicate CPUs, NANDs, and baseband chips from cracking.

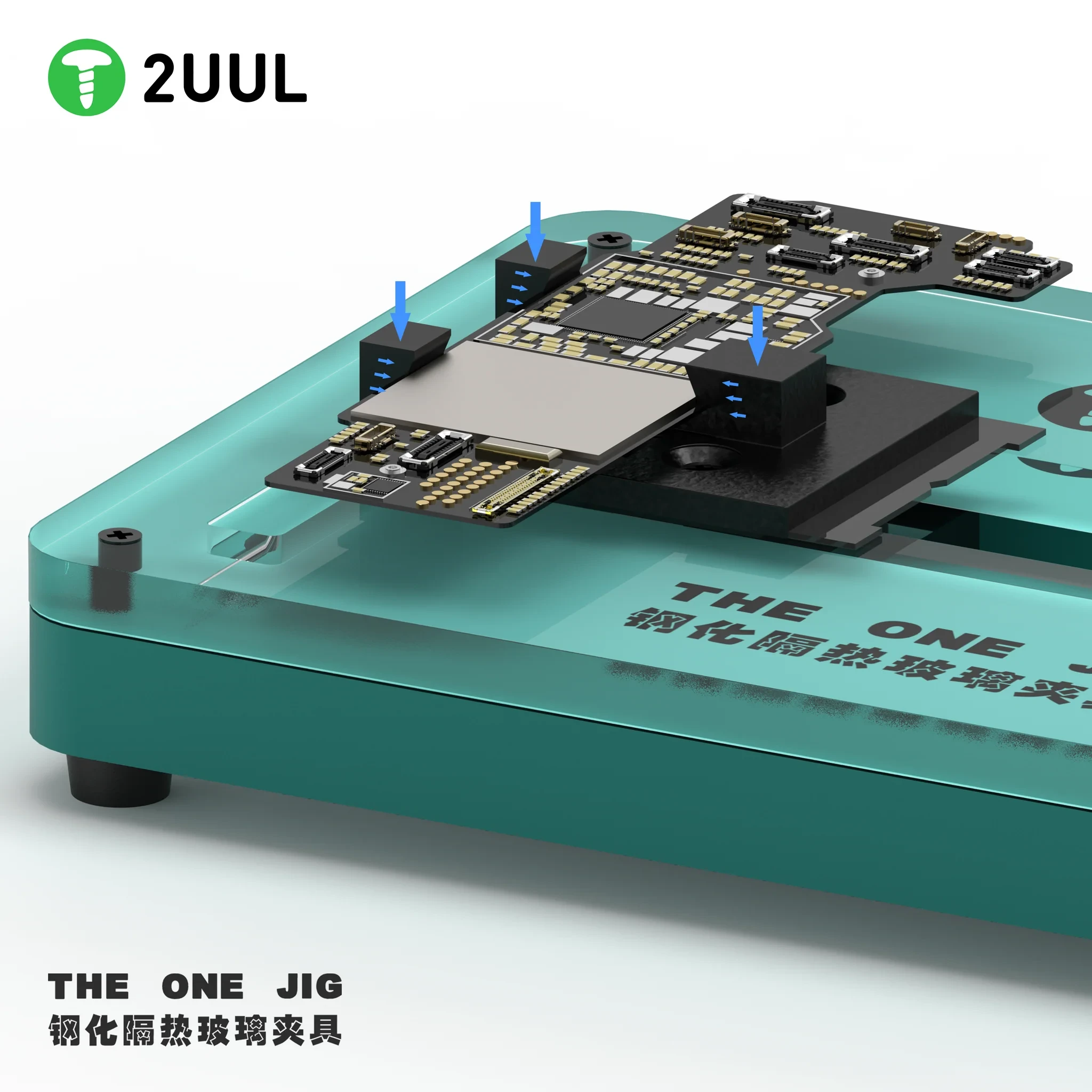

4. Double-Layer Motherboard Safe: Holds and protects upper and lower logic board layers during separation, desoldering, and reballing maintenance.
5. Bottom Heat Sink Channels: Integrated thermal venting structure rapidly expels excess hot air, preventing PCB bubbling and component damage.
6. Multi-Level Distance Adjustment: Bottom screw adjustment allows quick switching between high, middle, and low gear distances to accommodate various PCB sizes.
7. Heavy Anti-Skid Stable Base: Weighted foundation equipped with silicone anti-slip feet prevents bench sliding under high magnification.

Specifications

1. Brand: 2UUL
2. Series: The One Jig Series
3. Model: BH03
4. Product Type: Universal Mobile Motherboard & IC Maintenance Fixture
5. Material: Tempered Heat-Insulated Synthetic Stone / Glass & CNC Aluminum Alloy
6. Locking Mechanism: Non-Rebound Rotary Screw Clamp
7. Adjustment System: Multi-Gear Stepped Positioning (High / Middle / Low)
8. Heat Resistance: High Temperature Safe (Hot Air Gun & Soldering Iron Resistant)

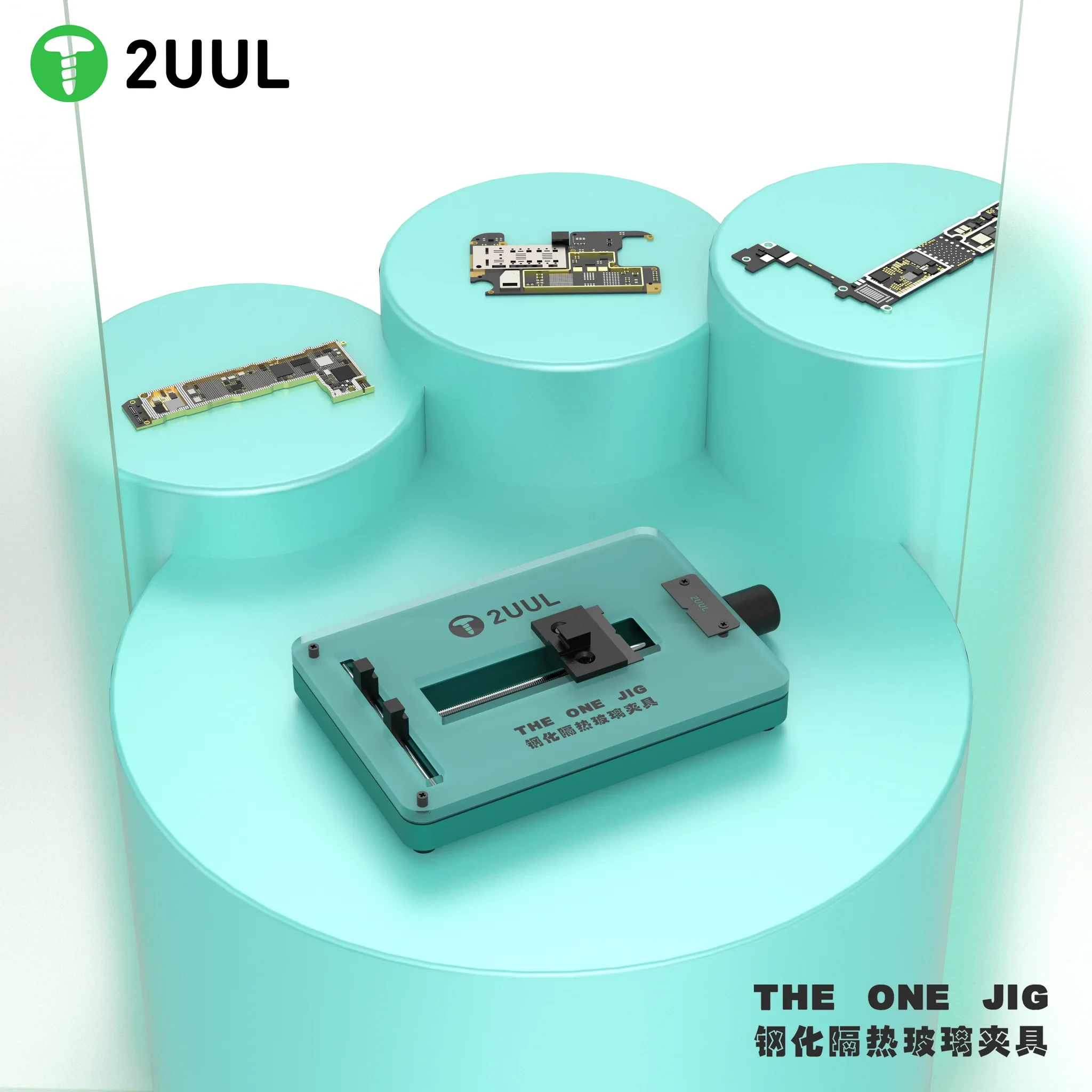

9. Compatibility: Universal Smartphone Motherboards (Single & Double-Decker PCBs), CPU, NAND, Baseband & PMIC ICs

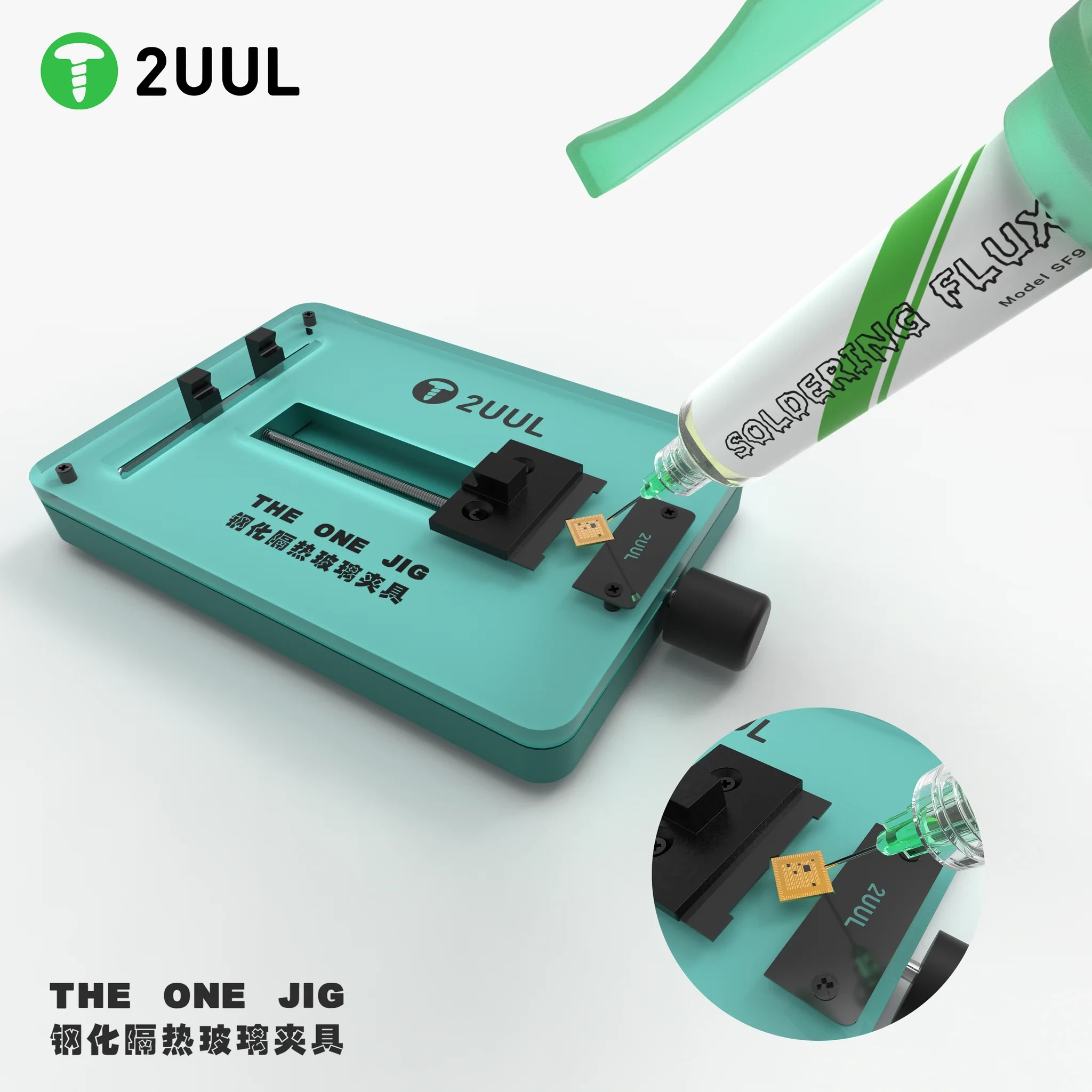

10. Application: Logic Board Soldering, BGA IC Black Glue / Underfill Removal, CPU Reballing, PCB Component Replacement

Package Includes

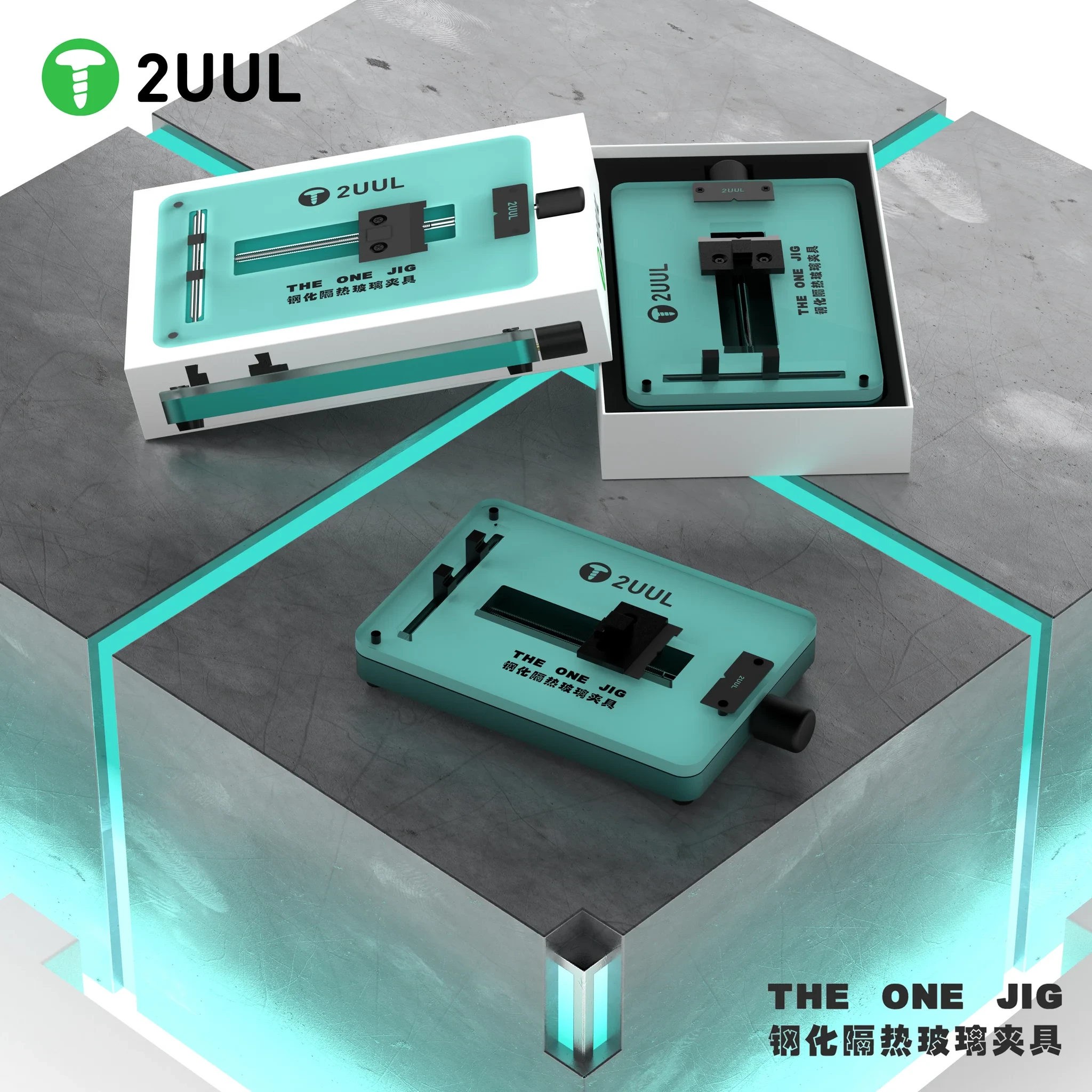

1. 1 × 2UUL BH03 The One Jig Motherboard & IC Repair Fixture
