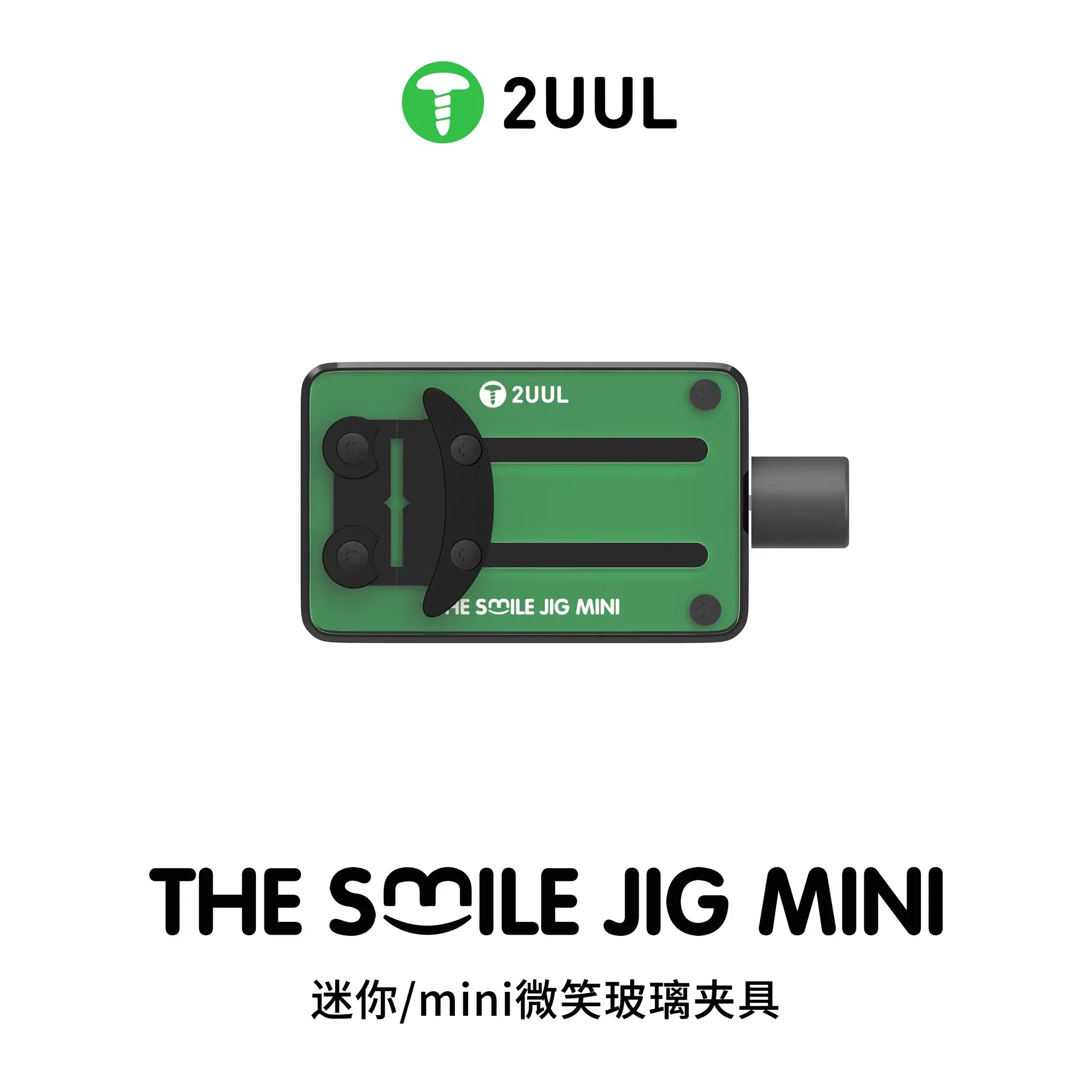

The 2UUL BH30 The Smile JIG Mini is a compact, high-precision motherboard and IC maintenance fixture engineered specifically for smartphone logic board repair, micro-soldering, BGA reballing, and component desoldering. Designed with an ultra-compact, space-saving footprint, it delivers maximum workstation flexibility without crowding your bench under high-magnification trinocular microscopes.

Featuring a specialized curved "Smile" precision clamping jaw and a smooth screw-driven sliding track, the BH30 locks various smartphone motherboards, sub-boards, CPUs, NAND flash memory, and PMIC chips securely with zero rebound or slippage. Built from high-temperature resistant synthetic materials and high-strength metal components, it withstands direct hot air rework while insulating delicate PCB layers from thermal stress. Its anti-skid base provides rock-solid stability, preventing accidental movement during delicate wire jumping, pad repair, and glue scraping.

Key Features

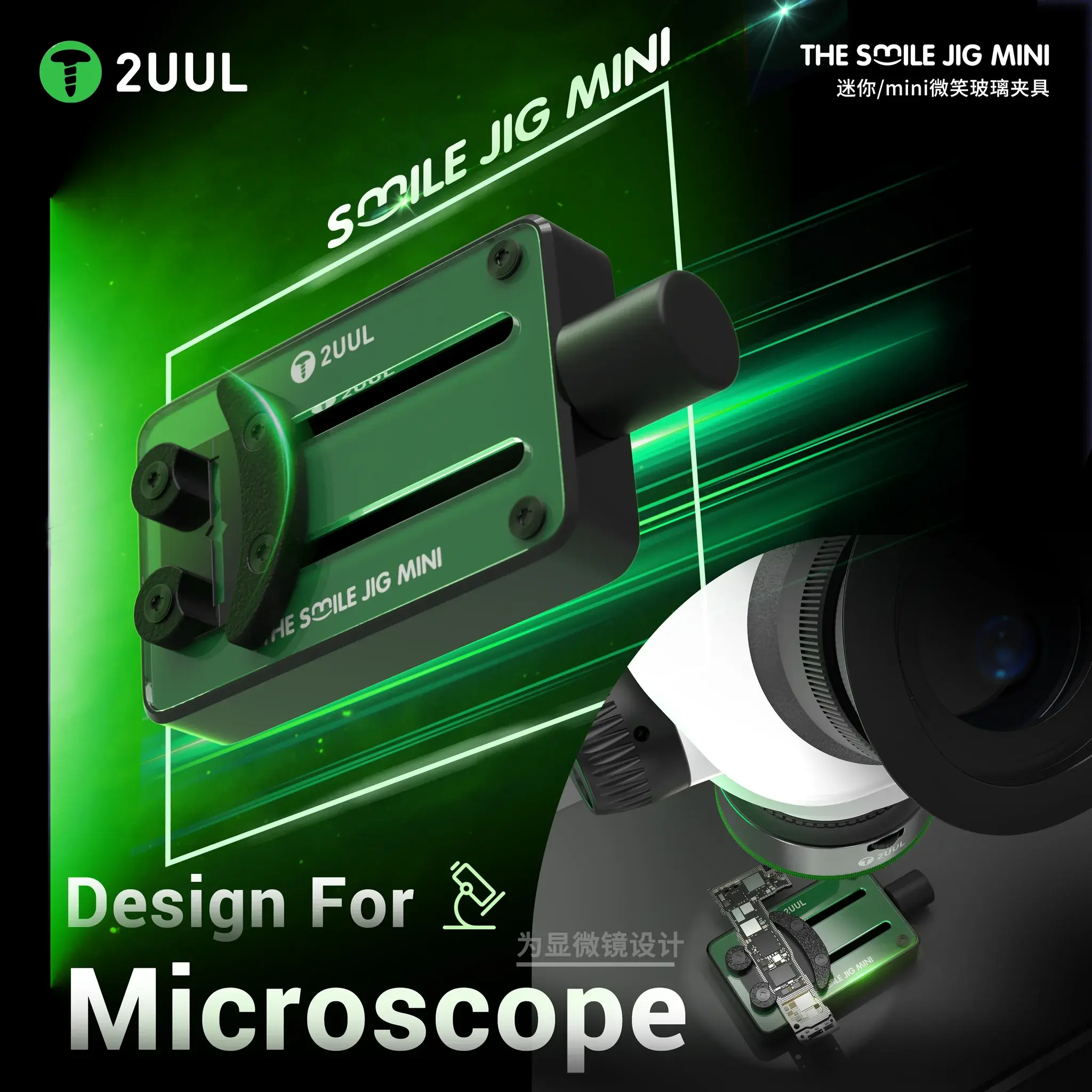

1. Ultra-Compact Mini Form Factor: Slim, portable design frees up valuable workbench area and fits cleanly beneath all repair microscope lenses.

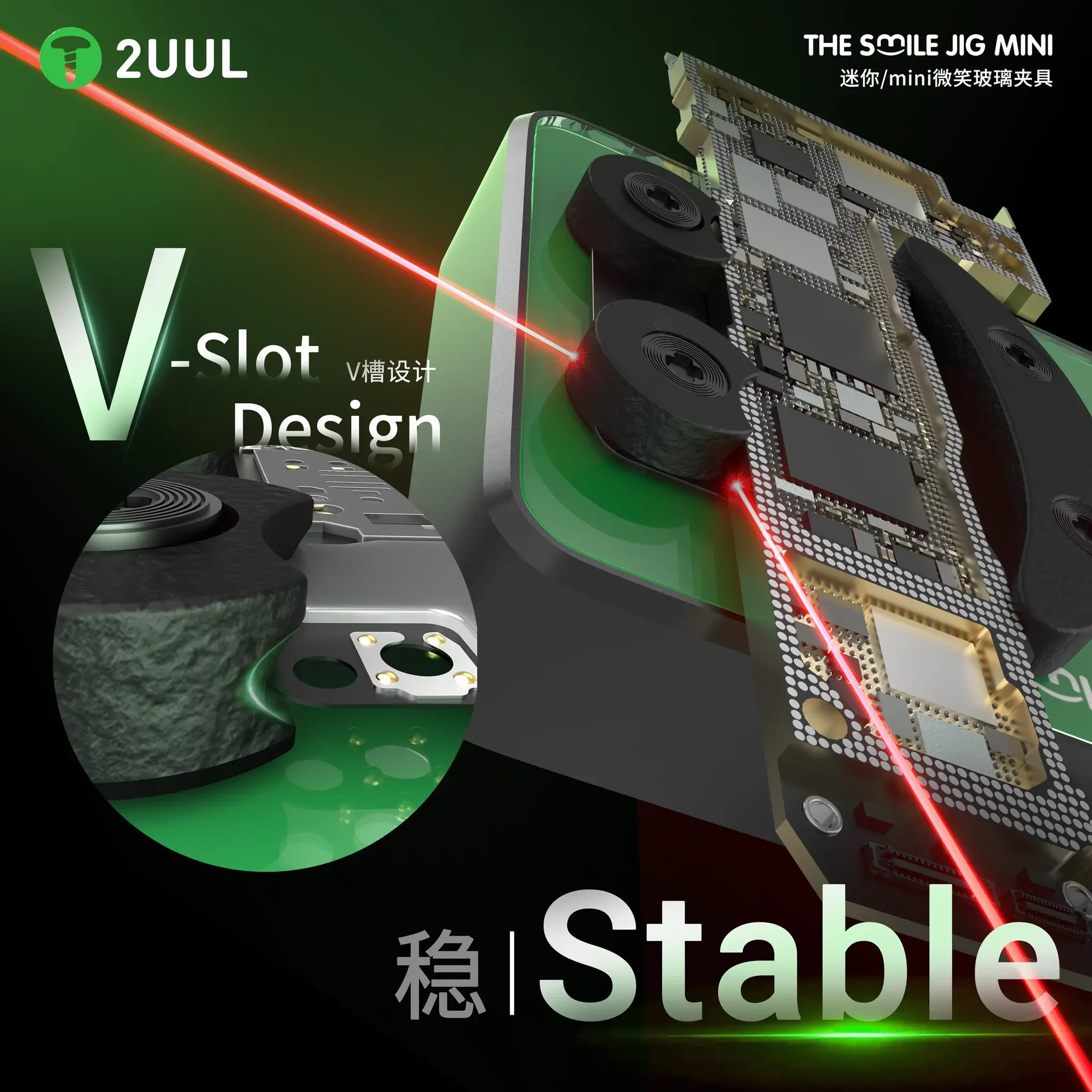

2. Curved "Smile" Contour Clamping: Provides multi-point mechanical grip to hold irregular motherboard edges, small sub-boards, and micro ICs firmly in place.
3. Non-Rebound Screw-Driven Lock: Precision threaded mechanism ensures zero-play clamping that will not loosen or slip under tool pressure.
4. Heat-Resistant Thermal Insulation: Built to endure high-temperature hot air rework without deforming, protecting multilayer logic boards from heat shock.
5. Anti-Break IC Support Design: Specially contoured clamp steps support delicate silicon dies during BGA black glue and underfill scraping.

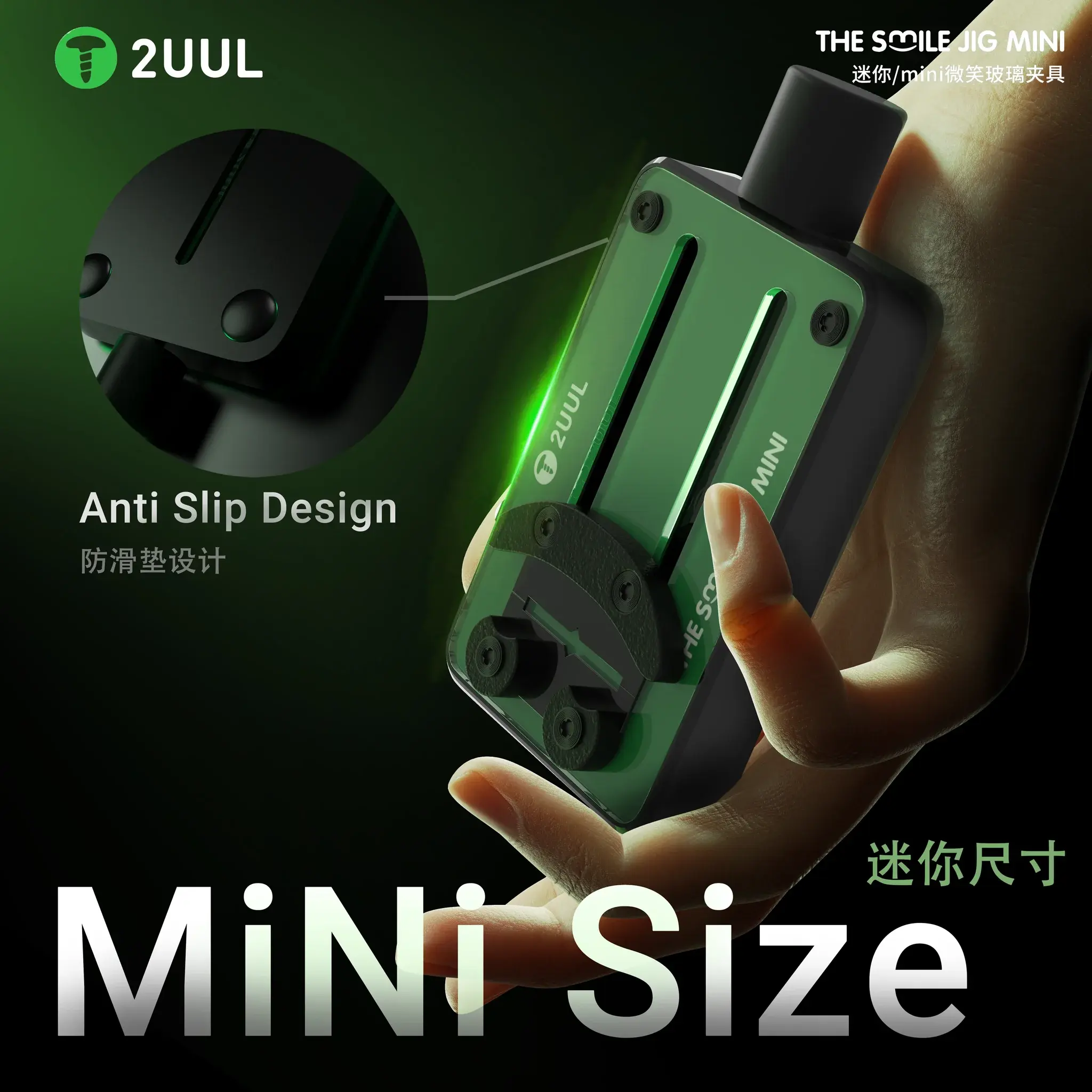

6. Anti-Slip Stable Base: Features integrated silicone feet that grip silicone repair mats firmly to eliminate sliding during fine microscope work.

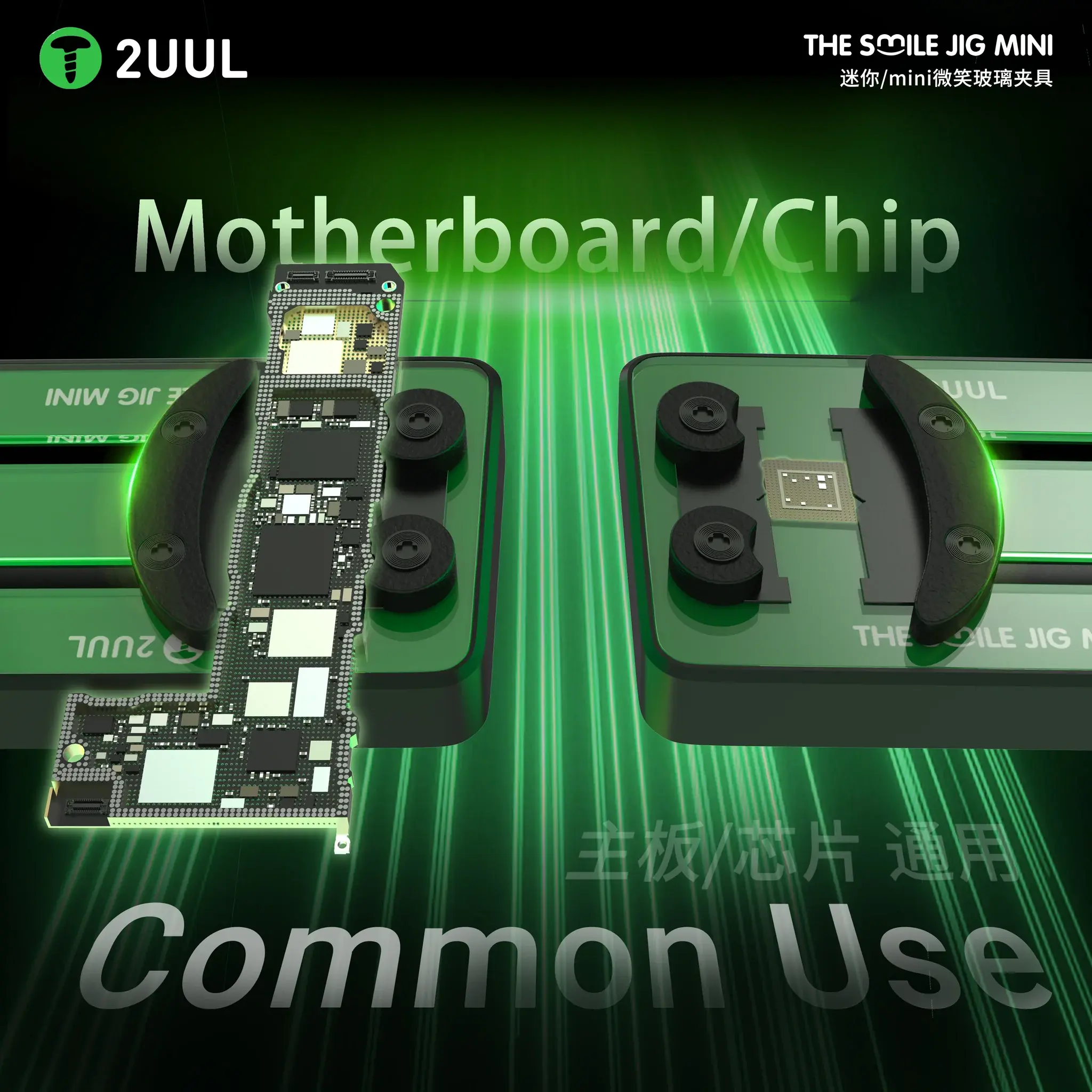

7. Wide Maintenance Versatility: Perfect for CPU/NAND reballing, logic board trace repairs, FPC connector soldering, and small component replacement.

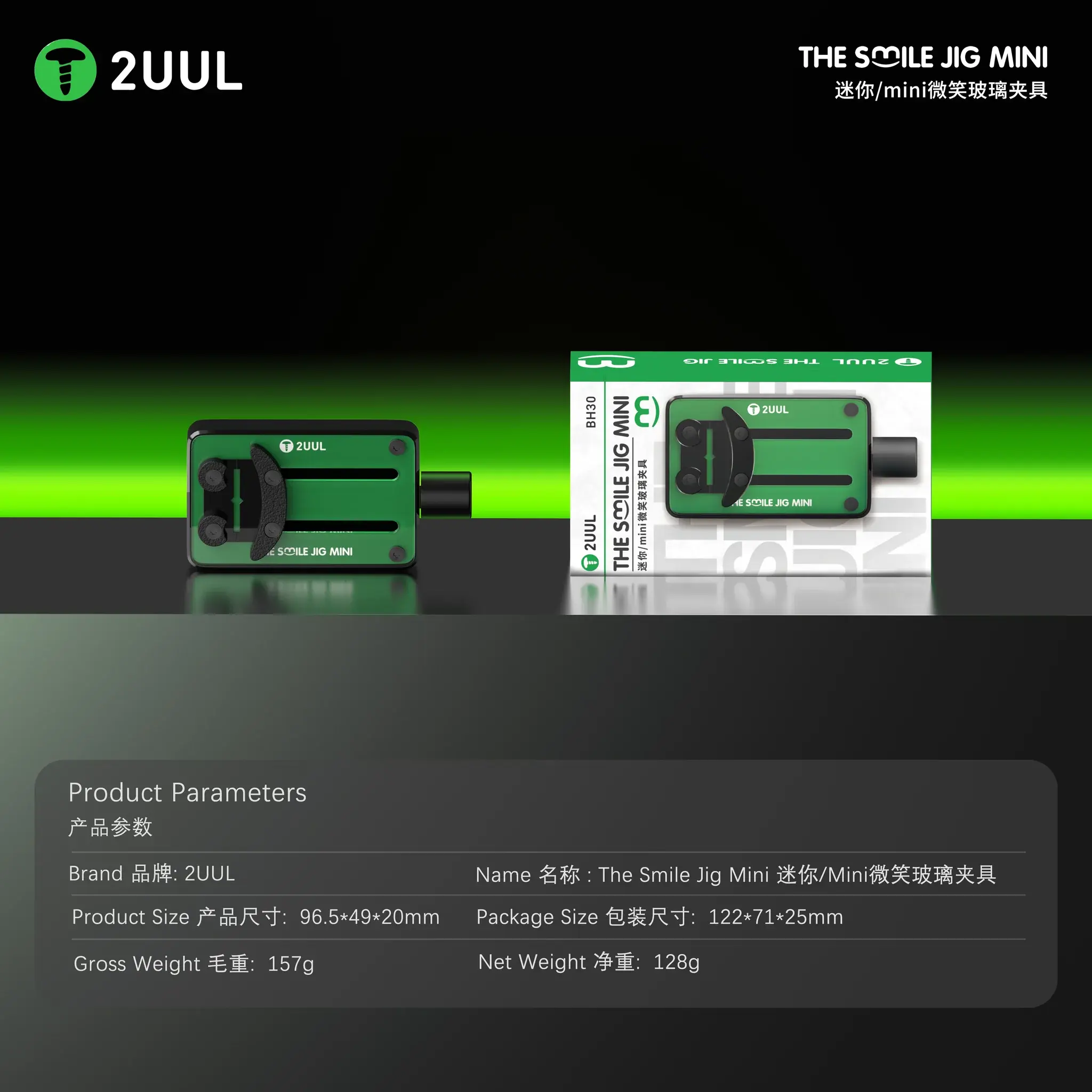

Specifications

1. Brand: 2UUL
2. Series: The Smile JIG Series
3. Model: BH30
4. Product Type: Mini Universal Mobile Phone Motherboard & IC Chip Repair Fixture
5. Material: High-Temperature Resistant Synthetic Composite & CNC Metal Alloy
6. Clamping Mechanism: Precision Screw-Slide "Smile" Stepped Jaws
7. Heat Resistance: High Temperature Safe (Hot Air Gun & Soldering Iron Proof)
8. Compatibility: Universal Smartphone Motherboards (iPhone & Android), Sub-Boards, CPU, NAND Flash, Wi-Fi IC, Baseband & Small SMD ICs
9. Application: Mobile Logic Board Repair, BGA IC Reballing, Micro-Soldering, Underfill Glue Removal, Component Desoldering

Package Includes

1. 1 × 2UUL BH30 The Smile JIG Mini Motherboard & IC Repair Fixture
