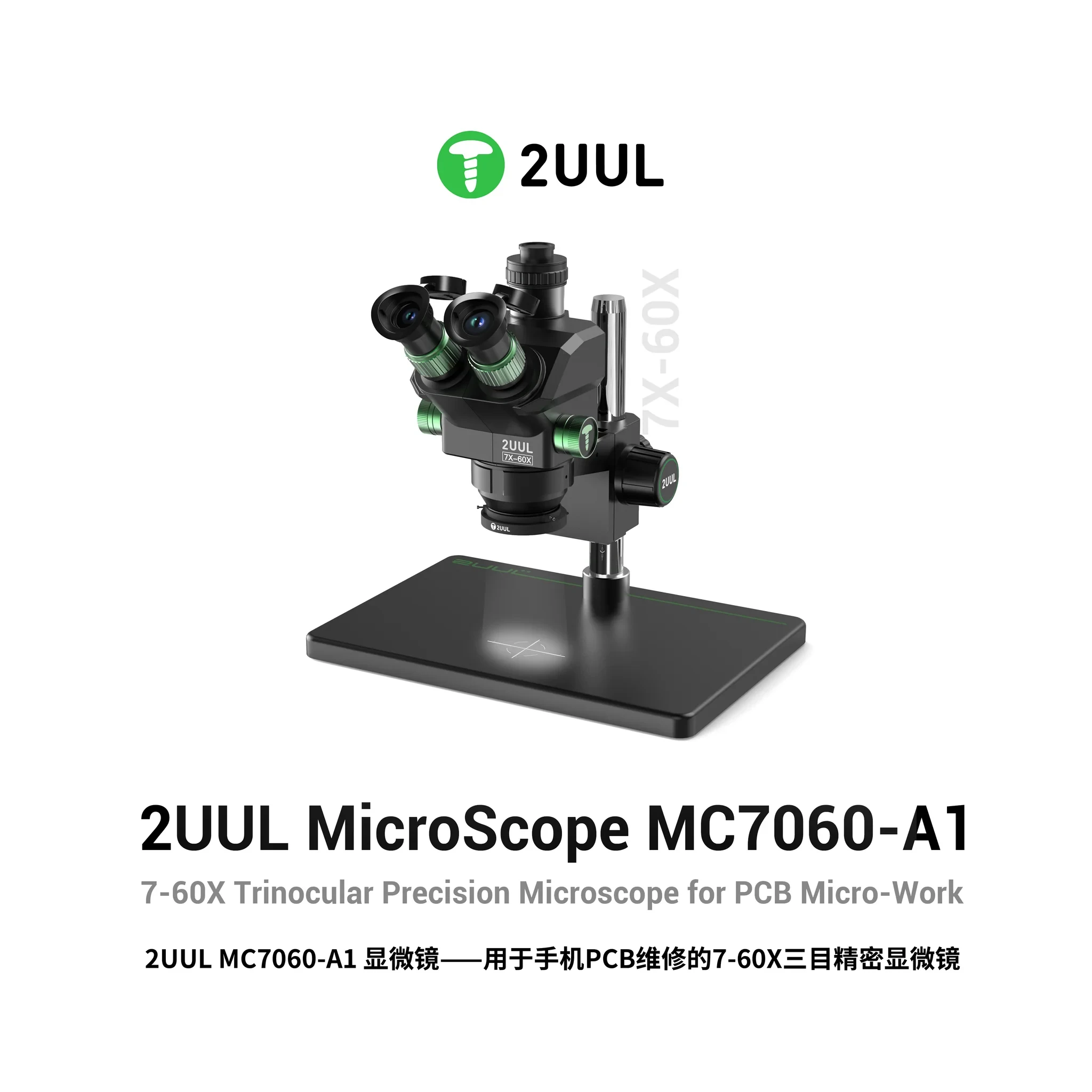

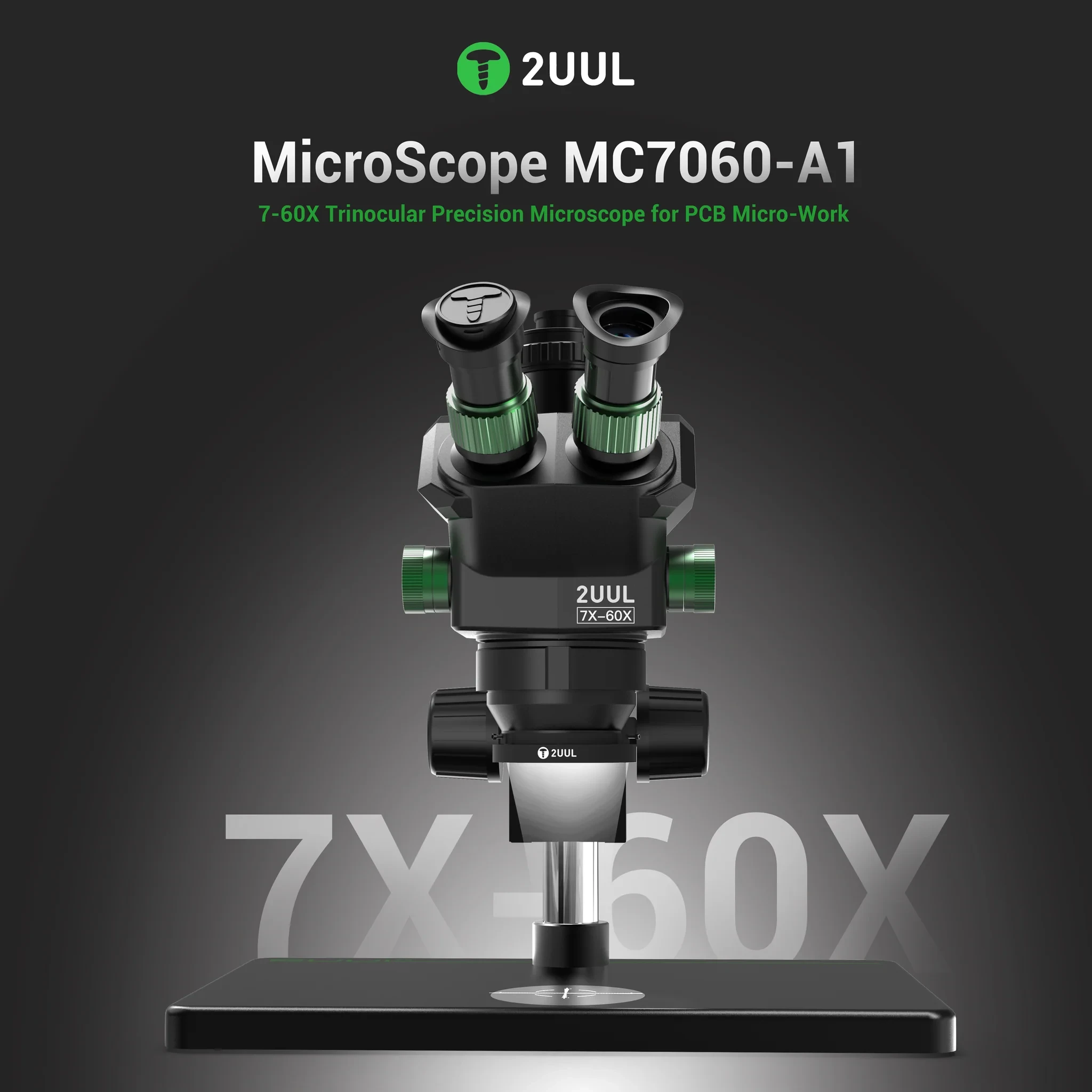

The 2UUL MC7060-A1 Trinocular Microscope is a professional-grade optical inspection and micro-soldering workstation designed for mobile phone motherboard repair, IC reballing, and high-density PCB diagnostics. Upgraded beyond standard 7-45X optics, it delivers an expanded 7X to 60X continuous zoom range (1:8.5 zoom ratio) with Greenough stereoscopic anti-reflective optics, providing high depth perception and true-color clarity under the lens.

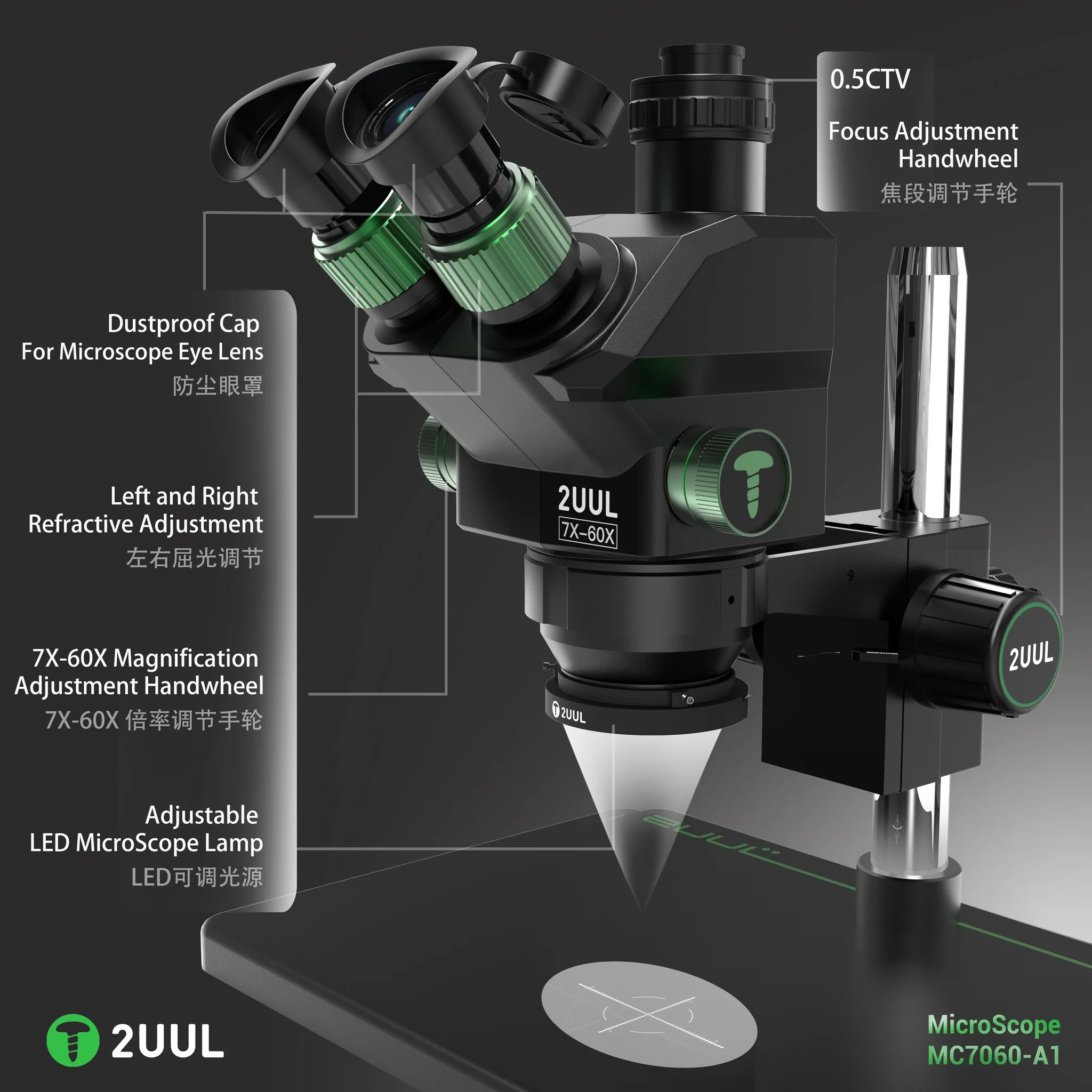

Featuring a dedicated synchronous optical output with an included 0.5X CTV adapter, the MC7060-A1 allows simultaneous, parfocal viewing through the wide-field WF10X/23mm eyepieces and an external HDMI/4K microscope camera without requiring refocusing. Built on a large B11 alloy workbench base with a standard 100mm working clearance, adjustable 72-LED ring light, and optical smoke-protection lenses, it provides the ideal operational space for hot air rework, precision micro-soldering, and repair live streaming.

Key Features

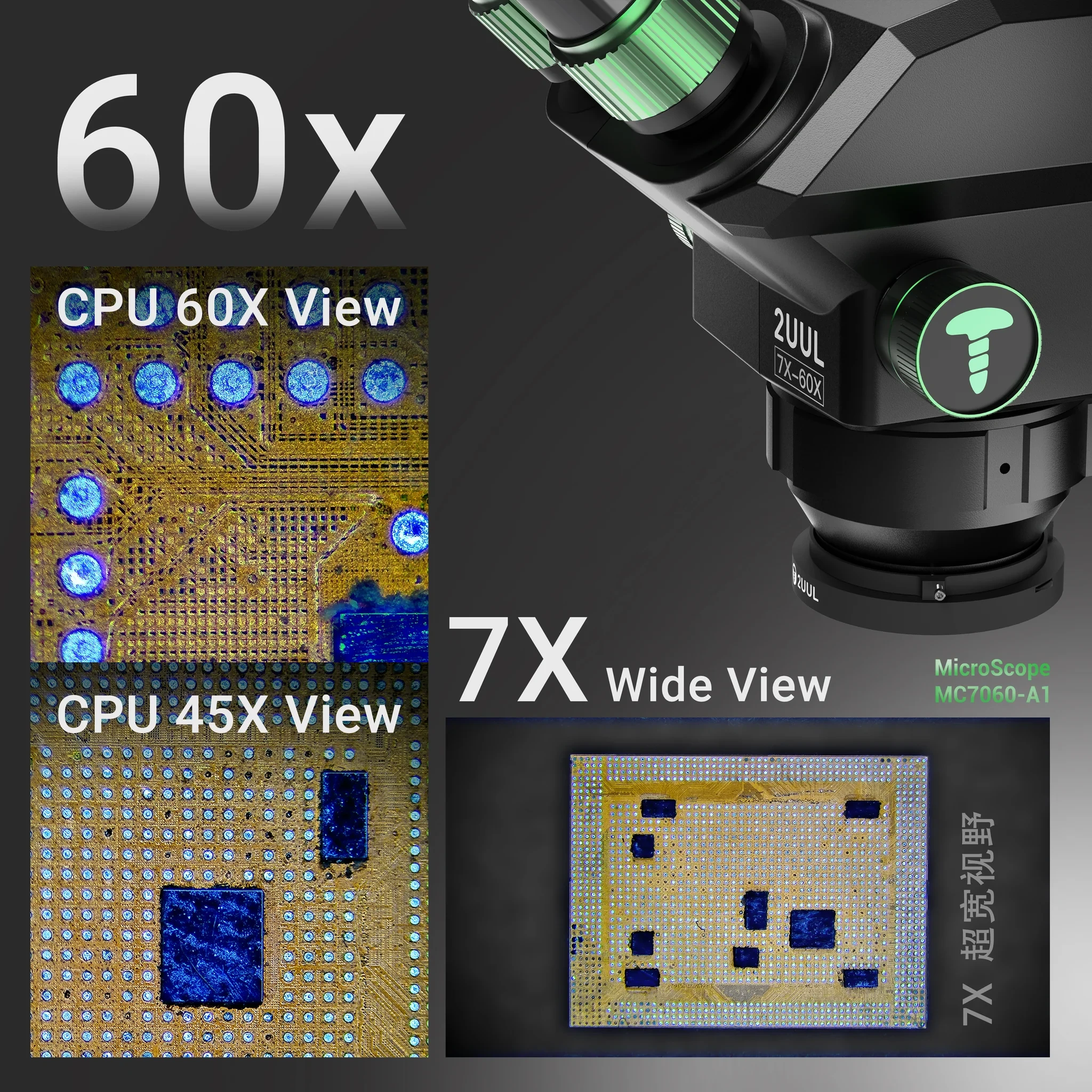

1. Extended 7X–60X Synchronous Zoom: 1:8.5 zoom ratio allows simultaneous, clear focus across eyepieces and connected monitor displays.
2. Ultra-Wide WF10X/23mm Eyepieces: High eye-point optics provide a 25% wider field of view, ideal for technicians wearing corrective eyewear.

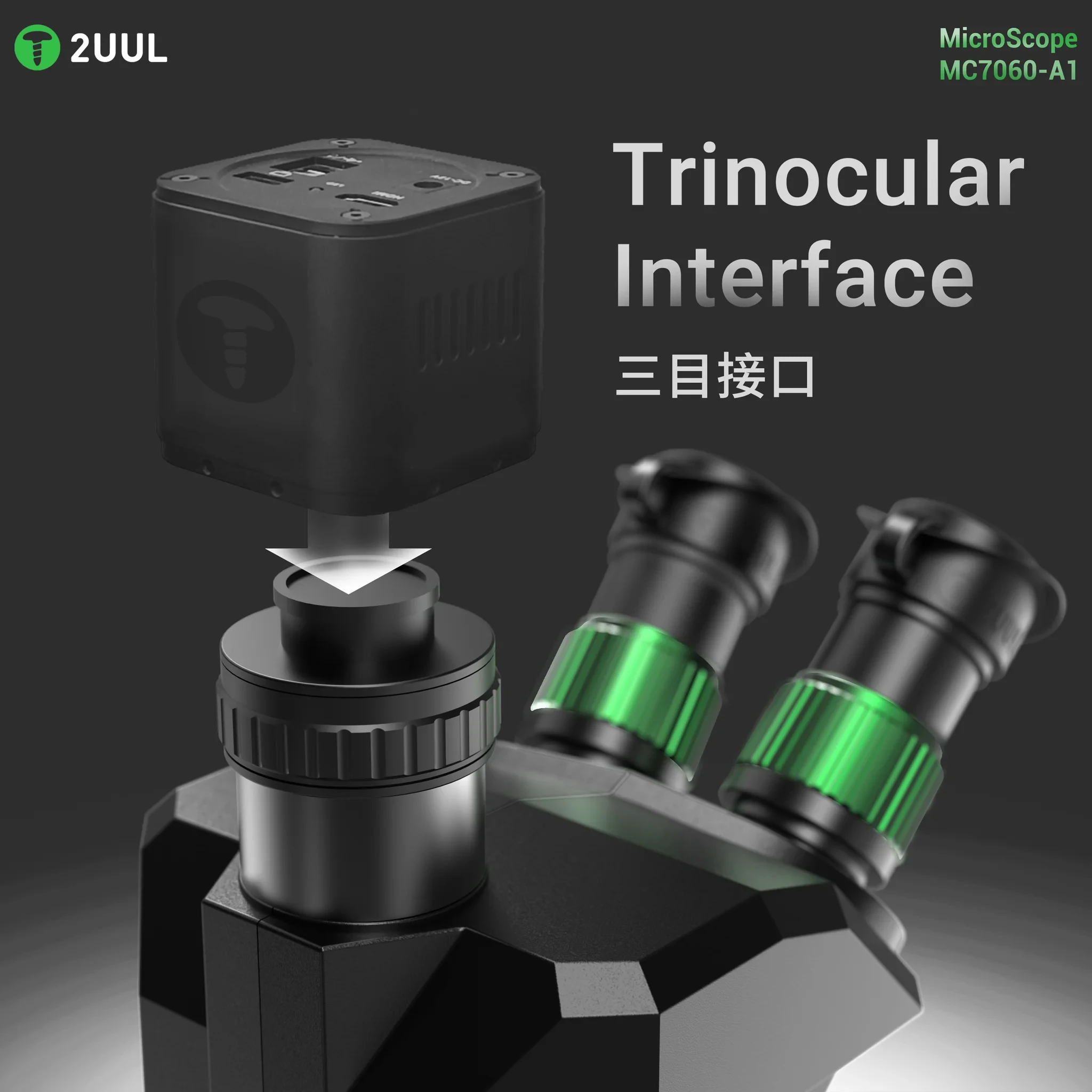

3. Parfocal 0.5X CTV Camera Output: Connects HDMI/4K microscope cameras for simultaneous workbench recording, teaching, and live streaming.

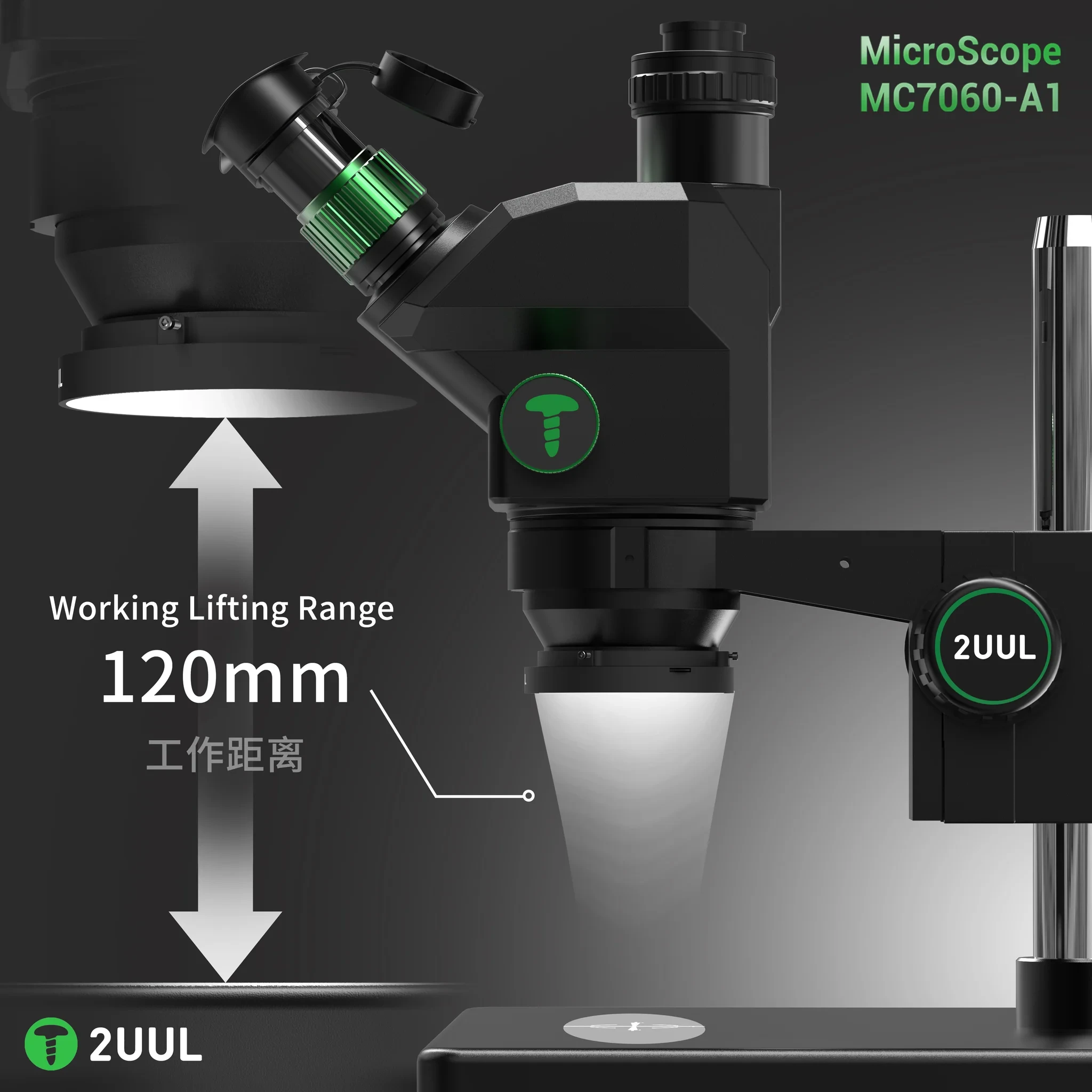

4. 100mm Standard Working Distance: Offers generous vertical clearance for soldering irons, hot air nozzles, and precision tweezers.
5. 72-LED Adjustable Ring Light: Delivers cool white, glare-free, and flicker-free illumination across dense PCB circuits.
6. Smoke & Flux Protective Lens: Shields internal objective lenses from hot rosin fumes, flux splatter, and dust during soldering.
7. Heavy-Duty B11 Alloy Base: Solid metal workbench base provides a stable, vibration-free platform for delicate chip-level repairs.

Specifications

1. Brand: 2UUL
2. Model: MC7060-A1
3. Product Type: Continuous Zoom Trinocular Stereo Microscope
4. Magnification Range: 7X – 60X Continuous Zoom
5. Zoom Ratio: 1:8.5 (0.7X to 6.0X Objective)
6. Optical System: Greenough Stereoscopic with Multi-Layer Anti-Reflective Coating
7. Eyepieces: WF10X/23mm High Eye-Point Wide-Field (Diopter Adjustable)
8. Observation Head: 45° Inclined, 360° Rotating Trinocular Head
9. Interpupillary Adjustment: 54mm – 76mm
10. Working Distance: 100mm (Extendable with auxiliary Barlow lenses)
11. Camera Interface: 0.5X CTV Synchronous Focal Output Adapter
12. Illumination: 72-LED Adjustable Intensity Ring Light (Cool White)
13. Base Dimensions: Large B11 Alloy Workbench Plate (~380 × 250 mm)
14. Application: Mobile Phone Logic Board Repair, BGA IC Reballing, Jumper Wire Routing, Micro-Soldering Inspection

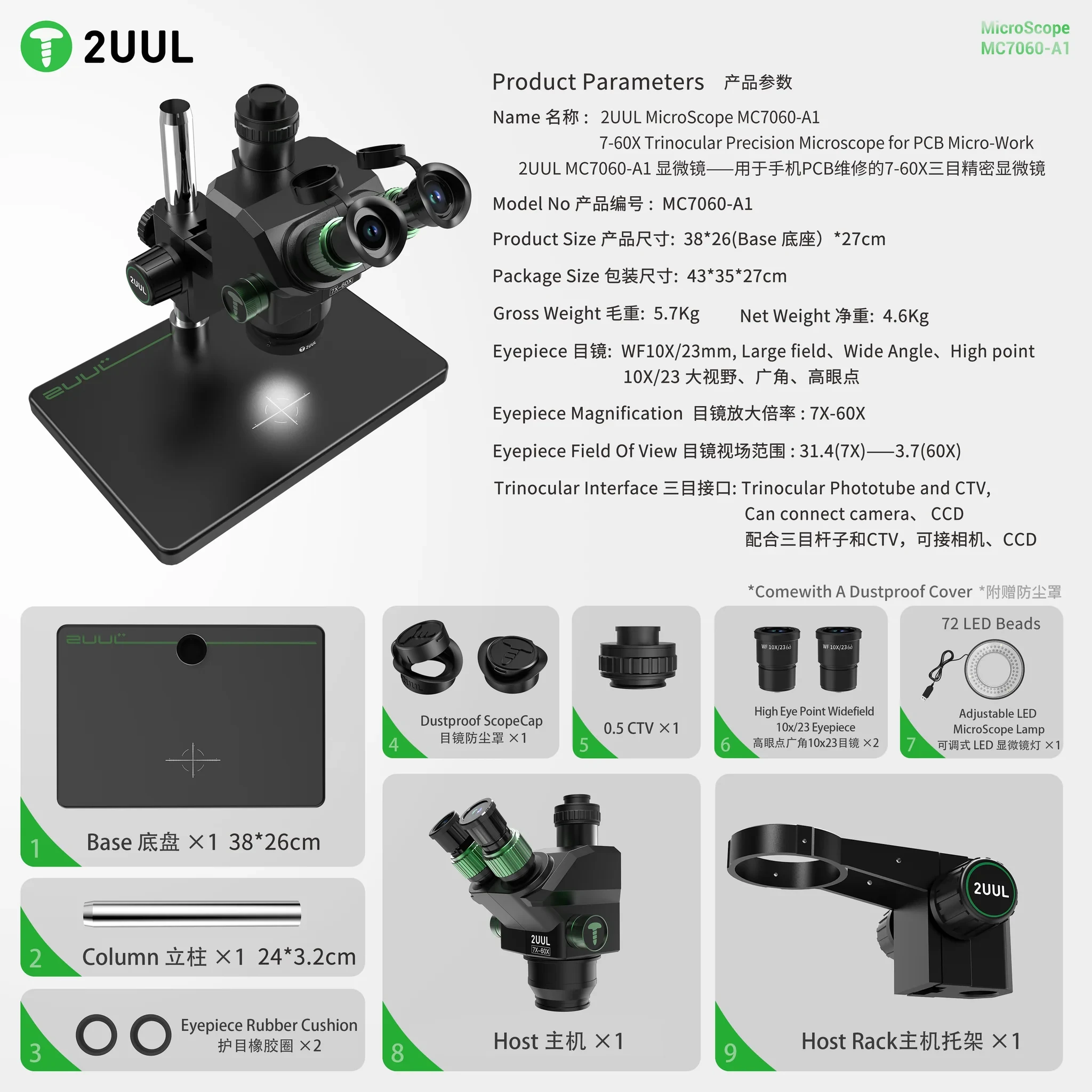

Package Includes

1. 1 × 2UUL MC7060-A1 Trinocular Microscope Head
2. 1 × Heavy-Duty B11 Alloy Metal Base
3. 1 × Vertical Support Column / Rod & Focusing Assembly
4. 2 × WF10X/23mm Wide-Field Eyepieces
5. 1 × 0.5X CTV Camera Adapter
6. 1 × 72-LED Adjustable Ring Light & Power Supply
7. 1 × Optical Protective Lens (Smoke / Dust Barrier)
8. 1 × Pair MS81 Ergonomic Eye Masks
9. 1 × Pair Standard Rubber Eyepiece Guards

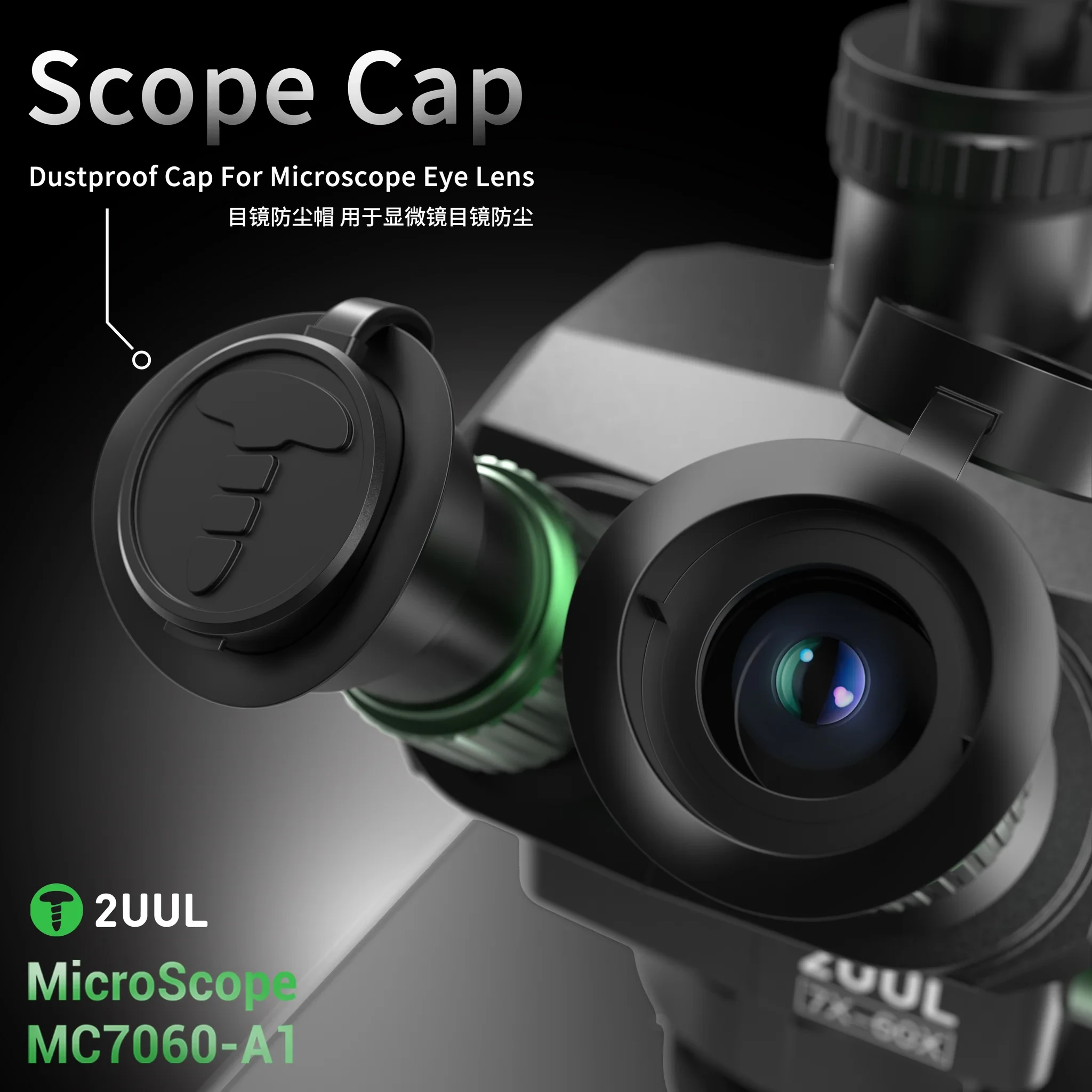

10. 1 × Dustproof Protective Cover
