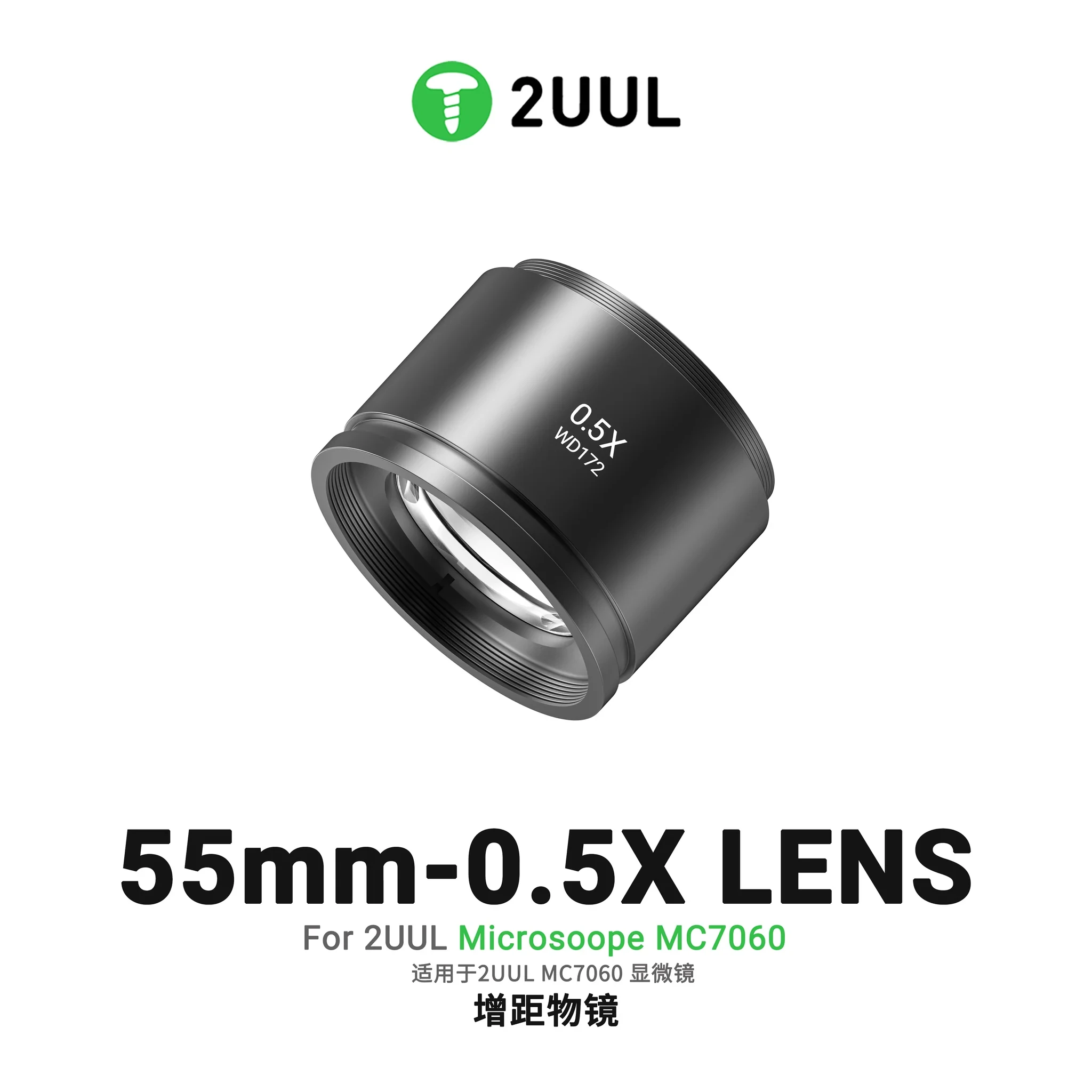

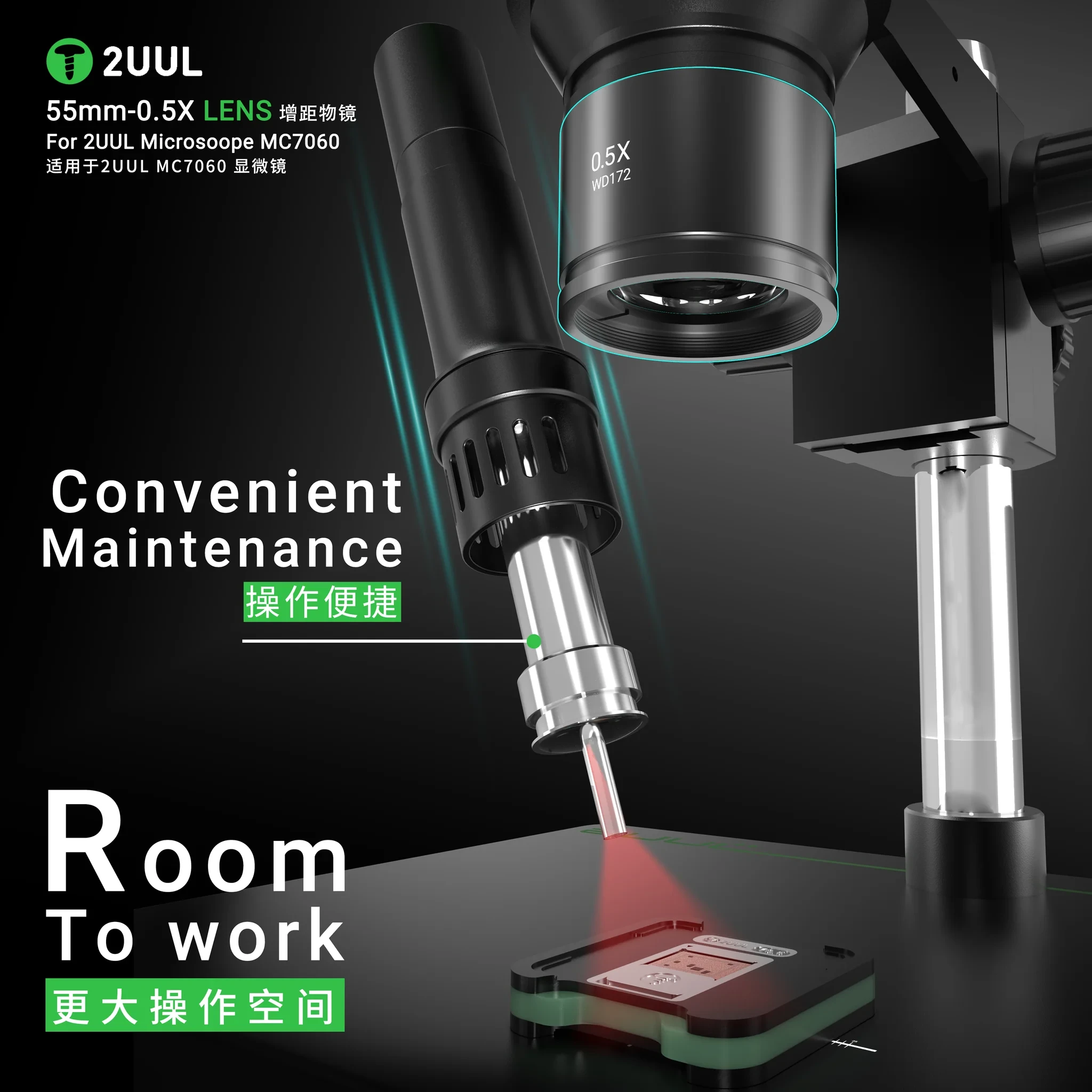

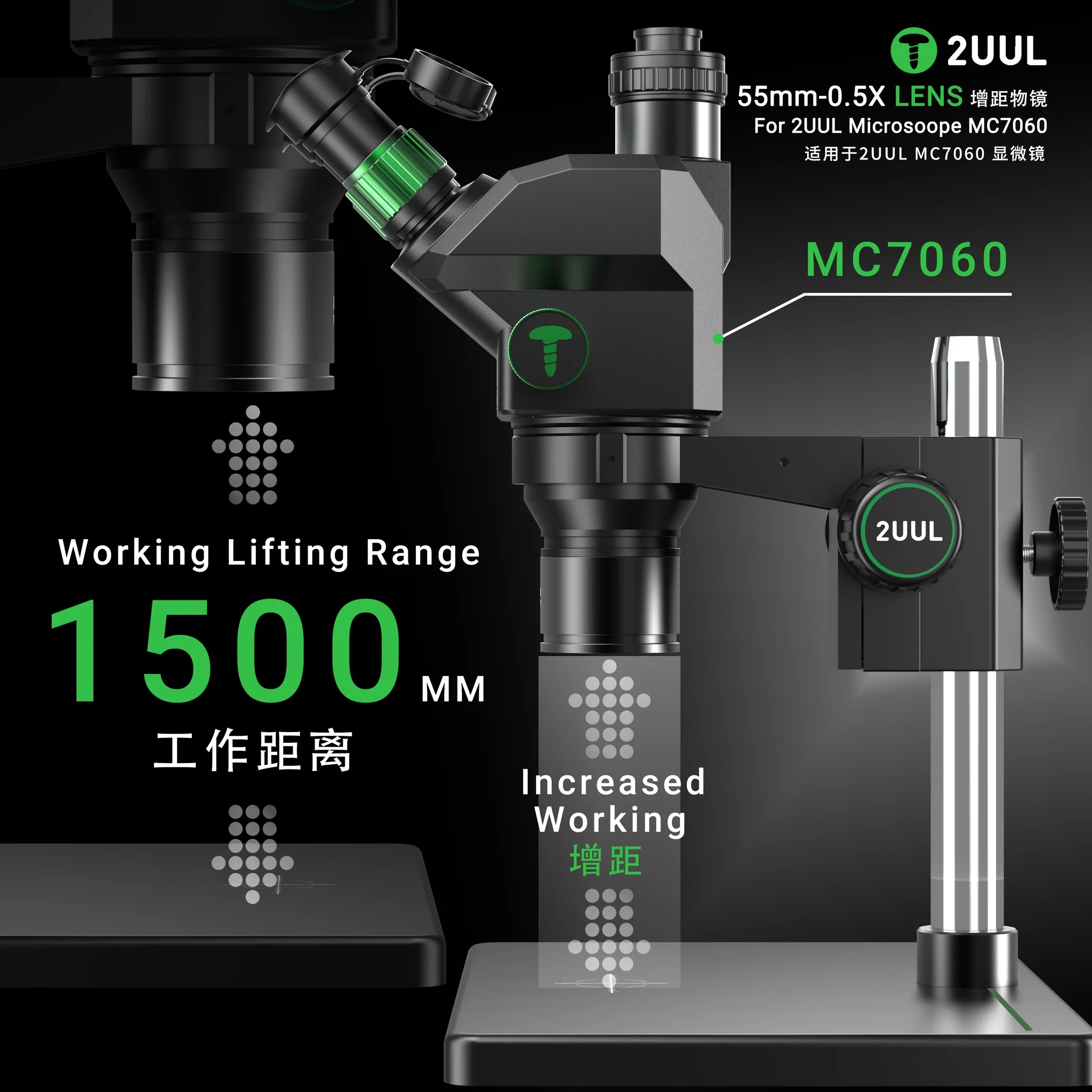

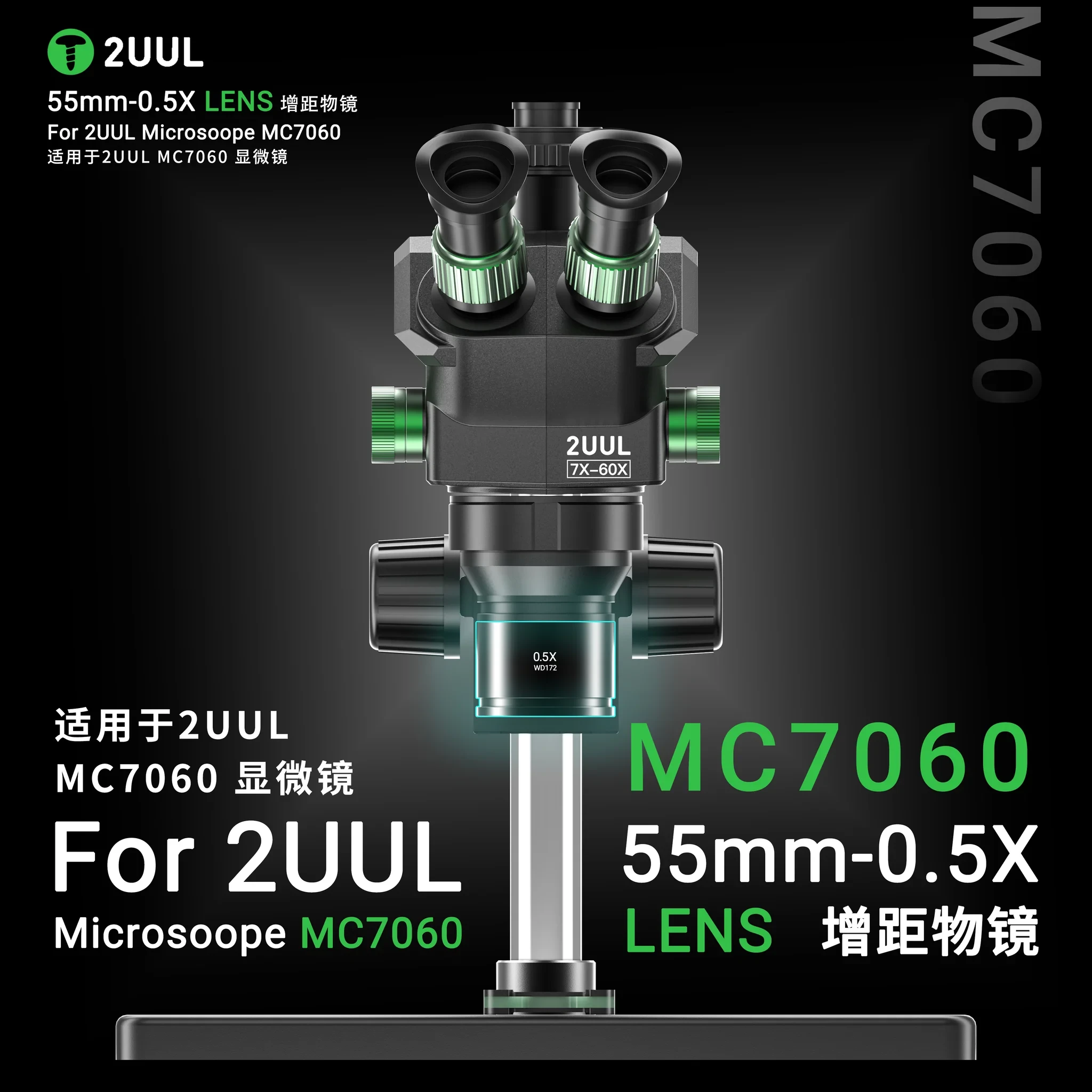

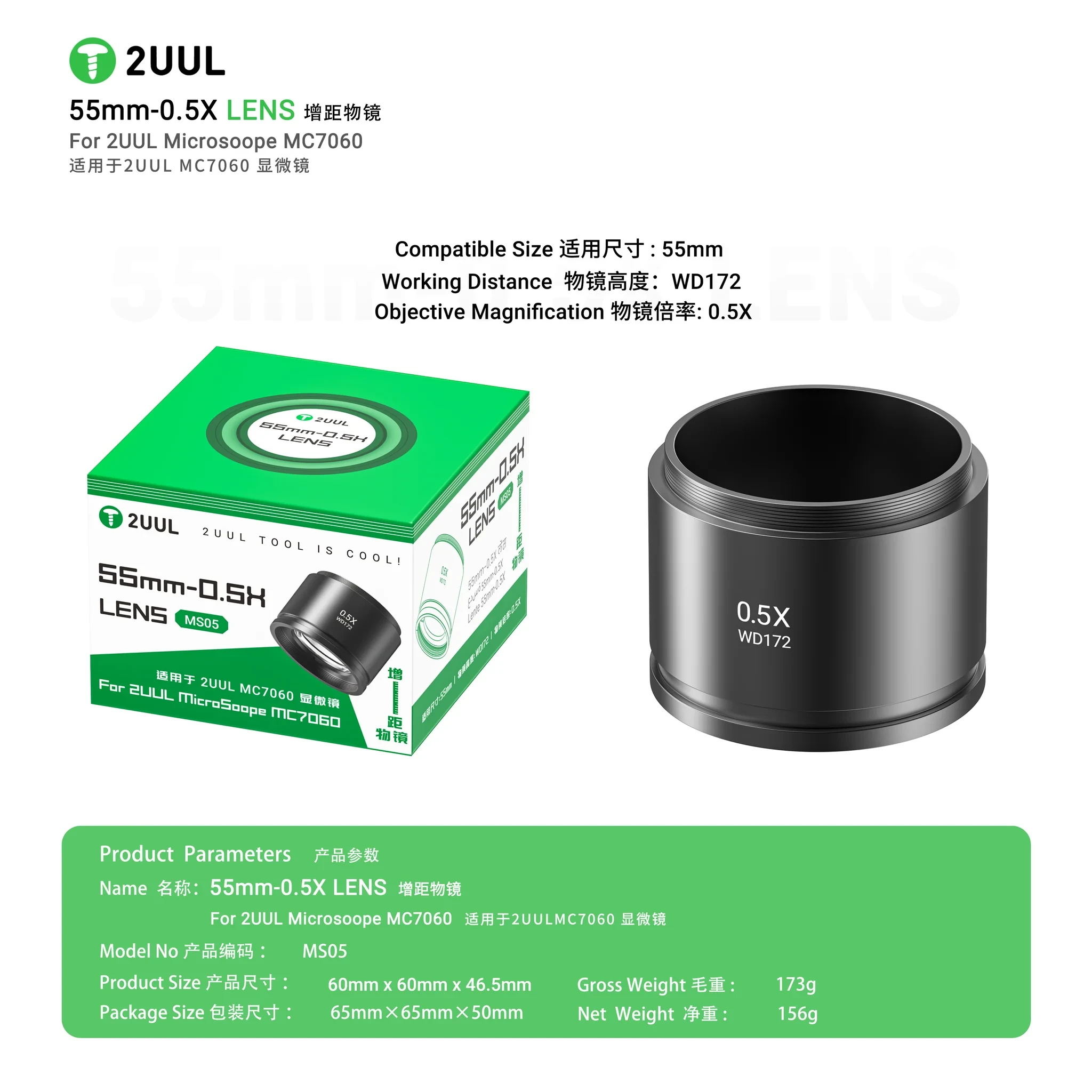

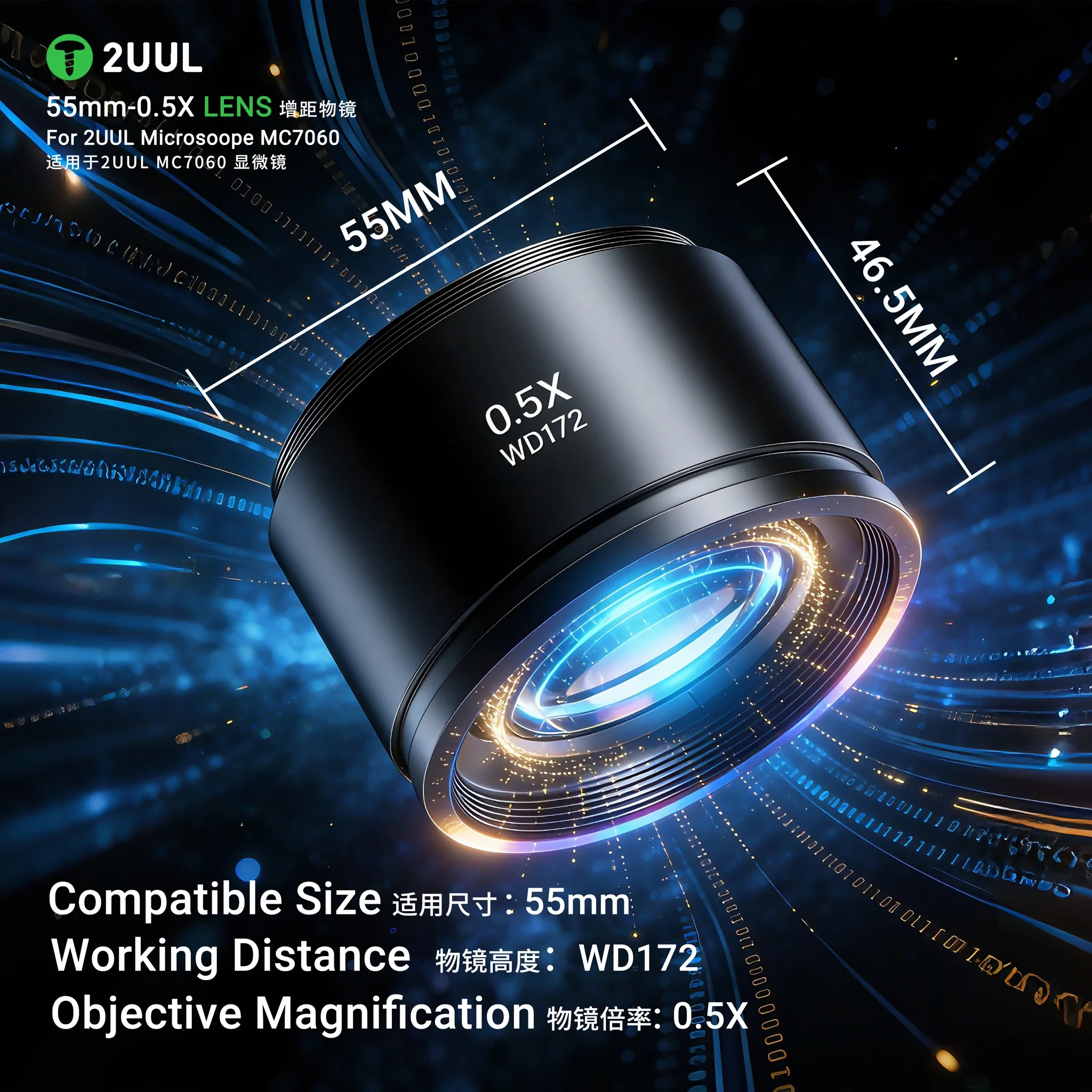

The 2UUL MS05 0.5X Auxiliary Objective Barlow Lens is a high-precision optical upgrade designed specifically for the 2UUL MC7060 stereo zoom trinocular microscope and compatible 55mm threaded optical heads. During complex mobile phone motherboard rework, IC reballing, and micro-soldering, technicians frequently encounter clearance constraints under the microscope. The MS05 solves this by doubling the vertical working distance up to approximately 165mm–200mm, giving ample overhead clearance for tall hot air rework nozzles, soldering iron handles, and precision tweezers.

Engineered with multi-coated, anti-reflective optical glass housed in a CNC-machined alloy ring, the 2UUL MS05 expands the observable field of view while halving the total magnification power (producing a broader 3.5X–30X zoom range on standard 7X–60X bodies). It delivers edge-to-edge optical clarity without chromatic aberration or barrel distortion, ensuring comfortable visual inspection across entire smartphone logic boards.

Key Features

1. Doubles Working Distance: Increases vertical working clearance up to 165mm–200mm, creating generous space for hot air nozzles, soldering irons, and jumper tools.
2. Expands Field of View: Provides a significantly broader inspection area, allowing technicians to view entire phone PCB sections at once without constant board repositioning.
3. Precision 55mm Thread Fitting: Engineered for smooth, direct screw-on mounting onto 2UUL MC7060-A1 and compatible 55mm microscope objective barrels.
4. Multi-Coated Optical Glass: Premium anti-reflective coating ensures high light transmission, accurate color rendition, and razor-sharp image clarity.
5. Smooth 0.5X Optical Reduction: Halves the native zoom ratio for ultra-wide board overviews while maintaining full stereo depth perception.
6. Robust CNC Aluminum Housing: Durable matte-black metallic frame protects internal optical elements against workshop wear, flux fumes, and heat.

Specifications

1. Brand: 2UUL
2. Model: MS05
3. Product Type: Auxiliary Objective Lens / Barlow Lens
4. Magnification Power: 0.5X (0.5 times reduction / 2X field of view expansion)
5. Mounting Thread Diameter: 55 mm (M55 Standard Screw Mount)
6. Working Distance Extension: Up to ~165 mm – 200 mm (depending on setup)
7. Optical Coating: Multi-Layer Anti-Reflective Coating (Broadband AR)
8. Housing Material: CNC-Machined Anodized Aluminum Alloy
9. Compatibility: 2UUL MC7060 Series (MC7060-A1) and standard 55mm threaded stereo microscopes
10. Application: Mobile Logic Board Repair, Extended Clearance Micro-Soldering, Full-Board PCB Inspection, BGA Rework

Package Includes

1. 1 × 2UUL MS05 0.5X Auxiliary Objective Barlow Lens (55mm)
2. 1 × Thread Protective Cap
